Adapter 2-ISO for 9" screen for ACV radio frames 381000-90-1

2-ISO adapter for 9-inch screens for ACV radio frames

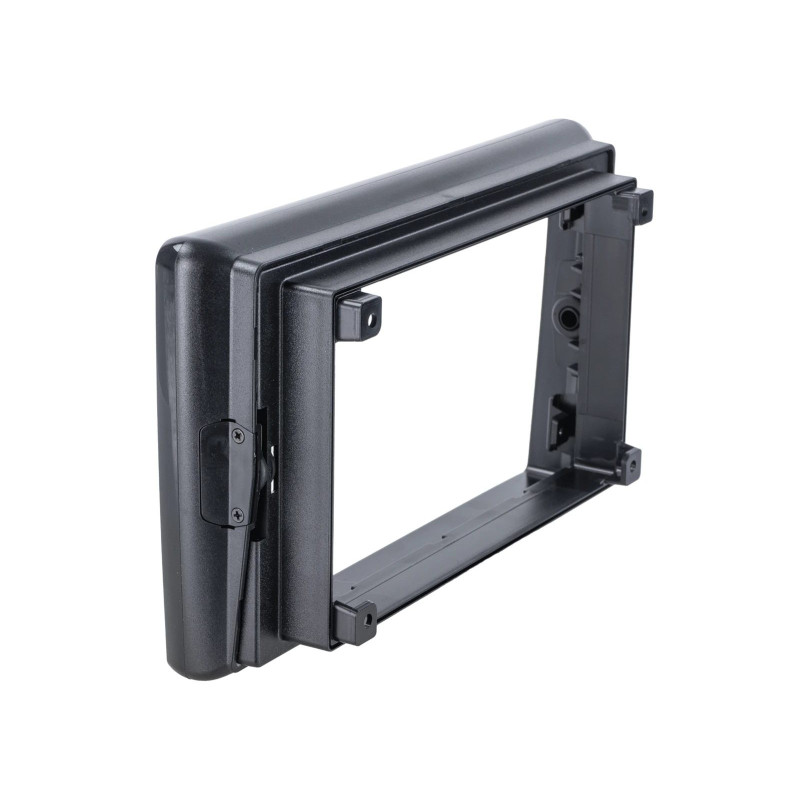

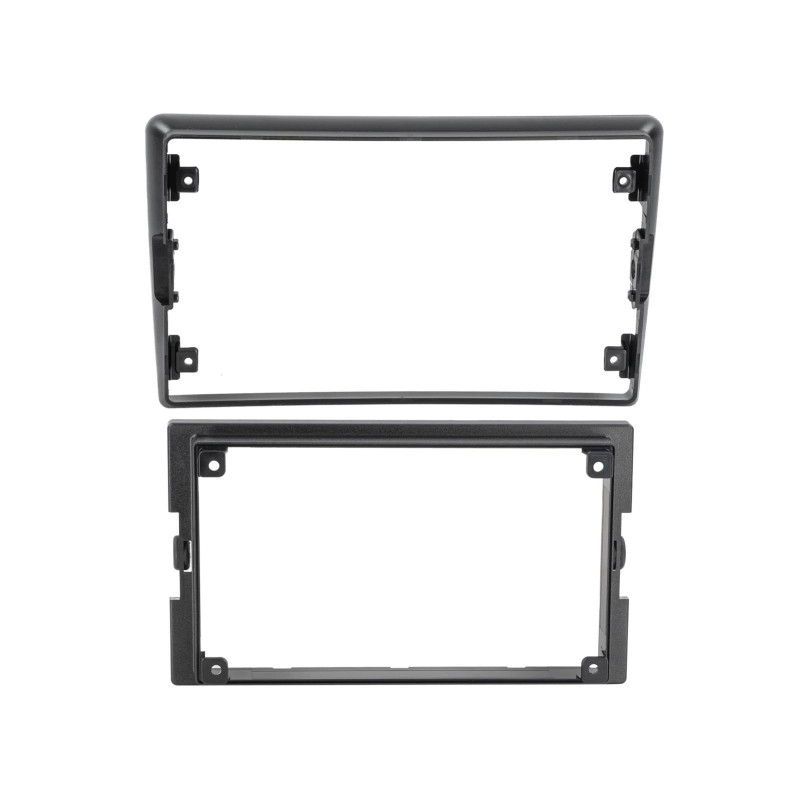

The 2-ISO adapter for a 9-inch screen has been designed for mounting modern radios and multimedia stations with a 9-inch display in ACV radio frames equipped with a 2-ISO mounting hole. It allows for aesthetic fitting of a large screen without the need for additional modifications to cockpit elements.

The adapter works with ACV frames that come with the 2-ISO mounting kit, classic 2-ISO frames, and versions equipped with an additional pocket. Adjusting the screen angle by 8° allows you to adjust its position to the vehicle's interior and improve user comfort.

The most important advantages

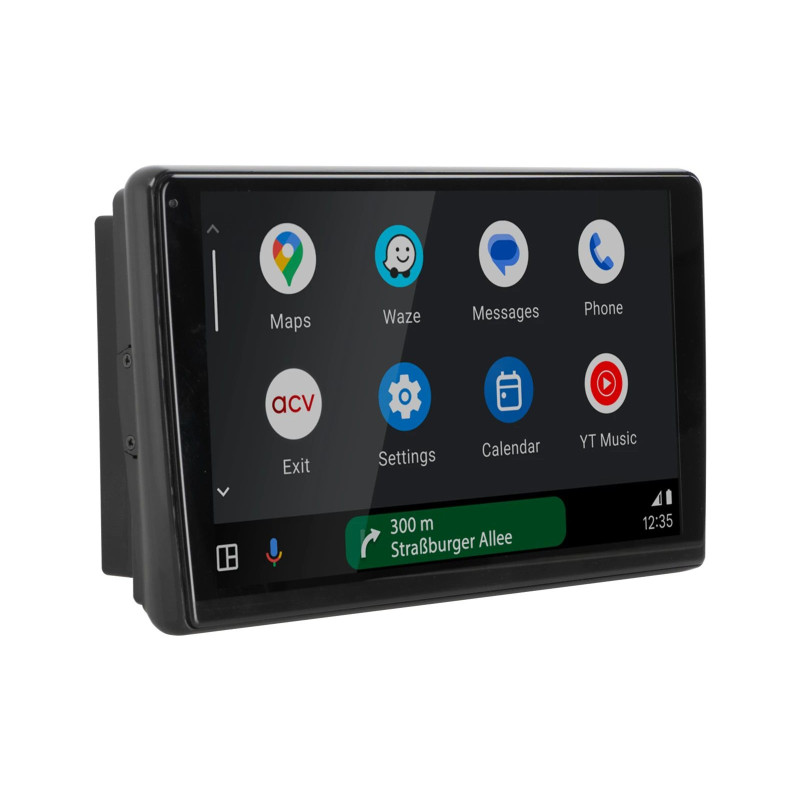

• installation of 9" screens and multimedia stations
• compatibility with ACV 2-ISO frames,
• compatibility with frames equipped with a pocket,
• display angle adjustment by 8°,

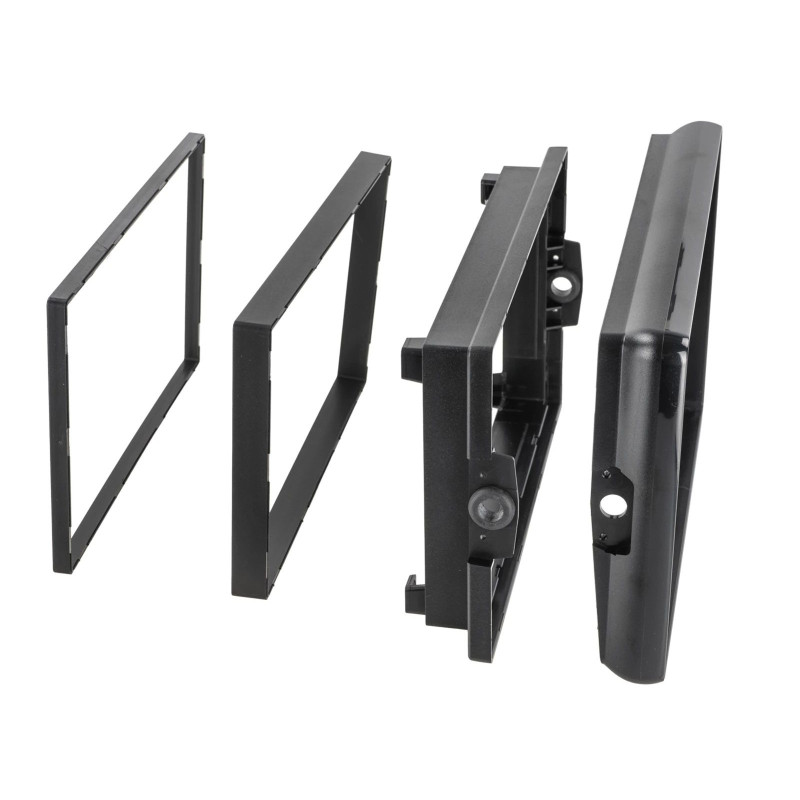

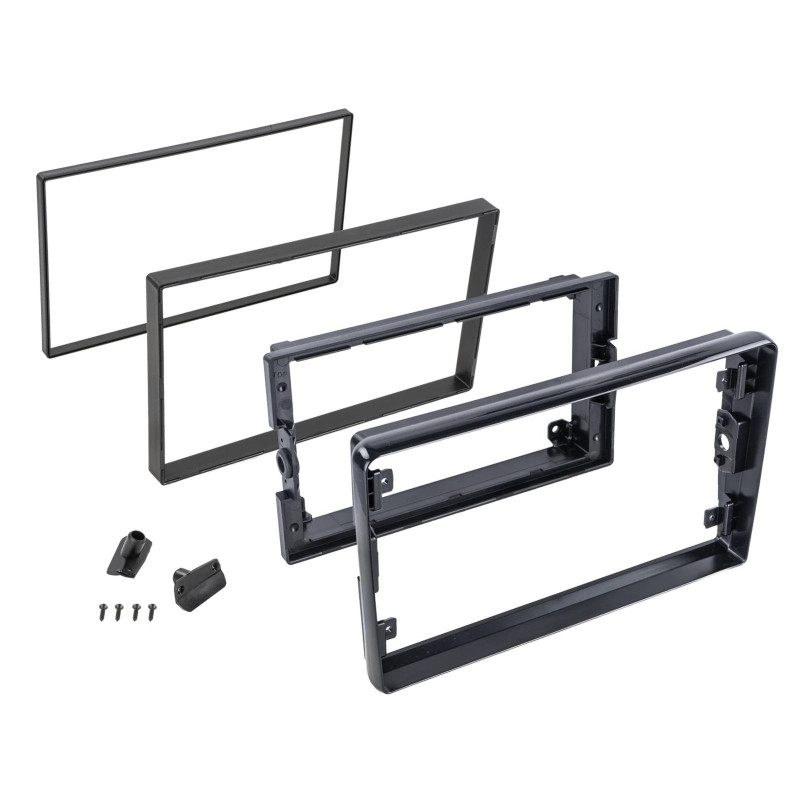

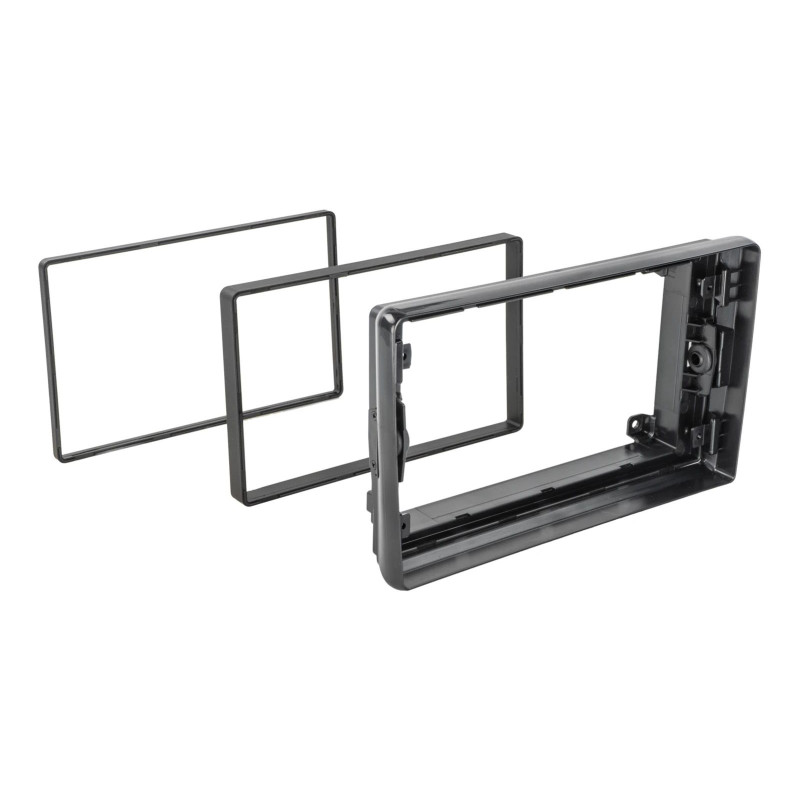

• 6.5 mm and 13 mm spacer frames included,
• aesthetic fit of the large display,
• solid construction,
• black color.

Specification

• Type: 2-ISO adapter for 9" screens
• Destiny: mounting 9" displays in radio frames ACV
• Color: black
• Display adjustment: vertically up to 8°
• Spacer frames: 6.5 mm and 13 mm (included)
• Display mounting hole: 230/220 × 130 mm

Important information

The adapter allows the installation of 9" devices in ACV frames with a mounting hole 105 × 183 mm.

Not compatible with the device ZENEC Z-E1109.

Before installing tablet multimedia units, check the space behind the radio. Devices with large rear radiators may not fit in some dashboards. For L-body devices, it is recommended to check the available mounting space beforehand.

Compatibility

The adapter works with selected ACV radio frames:

• 2-ISO frames with mounting kit,
• 2-ISO frames with pocket,
• standard frames 2-ISO.

Fits the following radio frames:

2-ISO radio frame with 2-ISO mounting kit

• Radio frame 2-ISO Peugeot 308 (4*) 09/2007-04/2009 silver gt; Article: 381040-01
• Radio frame 2-ISO Chevrolet Aveo/Captiva/Epica/Pontiac G3 gt; Article: 381087-01
• Radio frame 2-ISO with shelf (storage compartment) Fiat Sedici/Suzuki SX4 gt; Article: 381094-17
• Radio frame 2-ISO Fiat Bravo(ZAF 189) 04/2007-01/2014 gt; Article: 381094-21
• Radio frame 2-ISO Ford Mondeo 2003-2007 anthracite gt; Article: 381114-07
• Radio frame 2-ISO Honda CR-V (RE5) 01/2007-10/2012 black gt; Article: 381130-07
• Radio frame 2-ISO Mercedes C-Klasse/CLC-Klasse/G-Klasse gt; Article: 381190-16
• Radio frame 2-ISO Mercedes CLK-Klasse(W209) 04/2005-01/2010 gt; Article: 381190-23
• Radio frame 2-ISO Mercedes Sprinter/VW Crafter black gt; Article: 381190-27
• Radio frame 2-ISO Mercedes Sprinter/VW Crafter Rubber Touch gt; Article: 391190-27
• Radio frame 2-ISO Landrover Freelander/Discovery/Range Rover gt; Article: 381260-04
• Radio frame 2-ISO SsangYong Actyon
