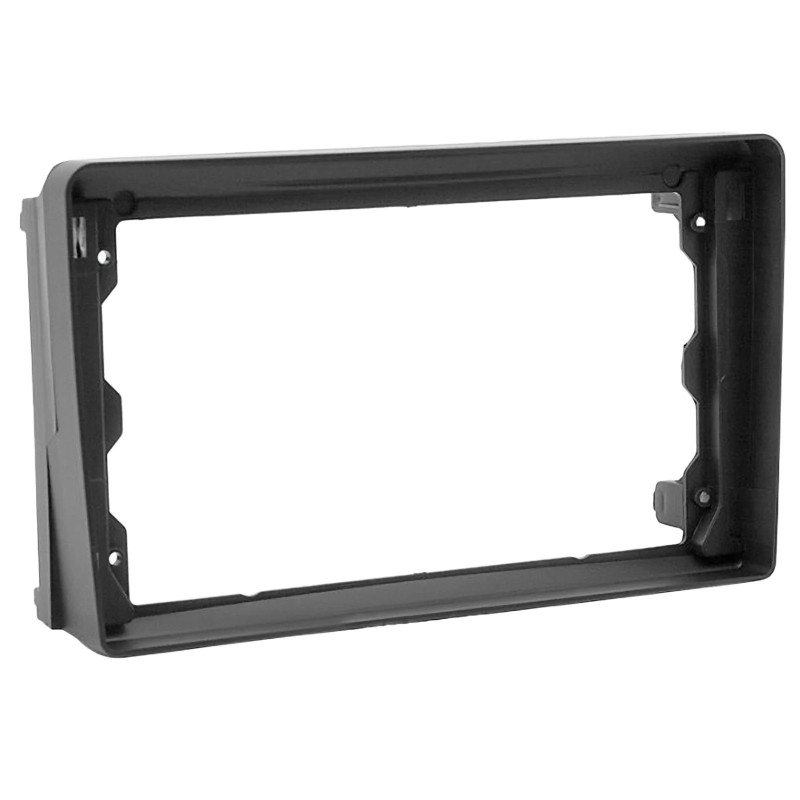

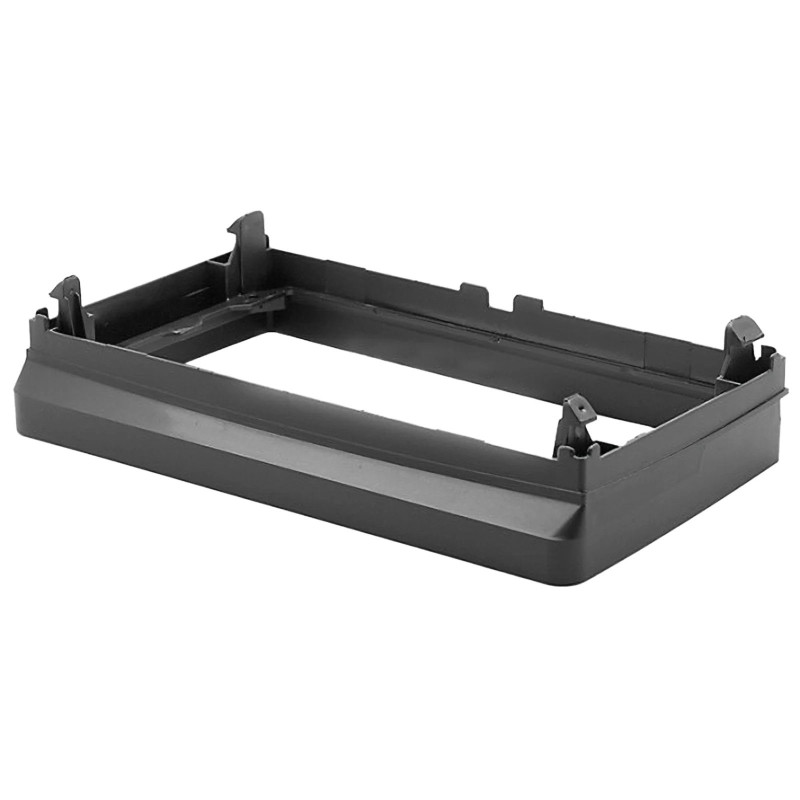

9 inch radio frame Ford C-Max, Fiesta, Focus, Galaxy, Kuga, S-Max, Tourneo Connect, Transit, Transit Connect (black) 381

The 9-inch mounting frame is designed specifically for select Ford models equipped with a rectangular OEM factory radio or factory navigation Audio Systems. This allows for seamless replacement of the standard unit with a modern multimedia radio with a large touchscreen.

Many car manufacturers use radios and navigation systems that are perfectly matched to the vehicle's interior. Therefore, when installing an aftermarket radio, the standard mounting hole often doesn't match the dimensions of the new device. Therefore, using a suitable frame is essential, as it allows for adapting the mounting space to the 9-inch standard.

Furthermore, the frame enhances the aesthetics of the entire installation, allowing the new radio to blend harmoniously with the vehicle's cockpit. Furthermore, the product allows you to maintain the factory-style interior while still allowing you to take advantage of modern multimedia features.

The frame is designed for vehicles equipped with a rectangular factory Ford 5000C, 6000CD, 6006CD, or Sony OEM radio. It is also compatible with rectangular OEM Navigation Audio Systems equipped with a front card slot. However, please note that in some Ford models, the factory radio design changed from rectangular to oval during production. Therefore, it's worth carefully checking the appearance of the installed unit before purchasing.

However, the product is not intended for vehicles equipped with a factory-installed 7-inch color navigation system with integrated automatic climate control. This helps avoid compatibility issues during installation.

Advantages of the radio frame

• Allows for the installation of a 9″ multimedia radio • Ensures an aesthetic fit to the factory center console • Facilitates the replacement of the factory OEM radio with a modern device • Improves the appearance and functionality of the vehicle interior • Works with tablet devices and modular systems • Allows you to maintain the factory character of the dashboard • Made of durable materials resistant to everyday use

Vehicle CompatibilityFord C-Max (DM2)

• 11/2003 - 05/2007

Ford Fiesta (JH1 / JD3)

• 10/2005 - 09/2008

Ford Focus (DA3)

• 11/2004 - 03/2008

Ford Fusion (JU2)

• 10/2005 - 07/2012

Ford Galaxy (WA6)

• 05/2006 - 09/2007

Ford Kuga (DM2)

• 02/2008 - 12/2012

Ford S-Max (WA6)

• 06/2006 - 02/2008

Ford Tourneo Connect (PH2/PJ2)

• 10/2006 - 05/2010

Ford Transit (F**6)

• 07/2006 - 03/2014

Ford Transit Connect (PH2 / PJ2)

• 06/2006 - 07/2013

Important Compatibility Information

The product is intended for vehicles equipped with:

• rectangular OEM Ford 5000C radio • rectangular OEM Ford 6000CD radio • rectangular OEM Ford 6006CD radio • rectangular OEM Sony radio • rectangular Audio Systems OEM Navigation with front card reader

At the same time, the frame is not intended for vehicles equipped with:

• factory 7″ color navigation with integrated automatic air conditioning

Additionally, it's important to remember that in some Ford models, the manufacturer changed the radio's design from rectangular to oval. Therefore, before purchasing, it's worth comparing the appearance of the factory unit with the currently installed radio.

Technical data

• Radio size: 9 inches
• Color: black
• Material: high-quality plastic
• Mounting hole dimensions: 230/220 × 130 mm

Supported devices

The frame is compatible with many modern multimedia devices. However, before purchasing, it's worth checking your vehicle's specific installation situation.

Supported devices:

• 9″ tablet devices with a trapezoidal monitor • 9″ modular devices with a screen and a Silverbox unit • 9″ L-Body devices - prior verification of the mounting location is required

Additional adapters and interfaces

Depending on the vehicle's equipment and audio system, additional mounting hardware may be required. Therefore, it's worth checking the complete set of accessories before beginning installation.
