2 DIN adapter for 9-inch display 381000-91-1

2 DIN adapter for 9-inch display

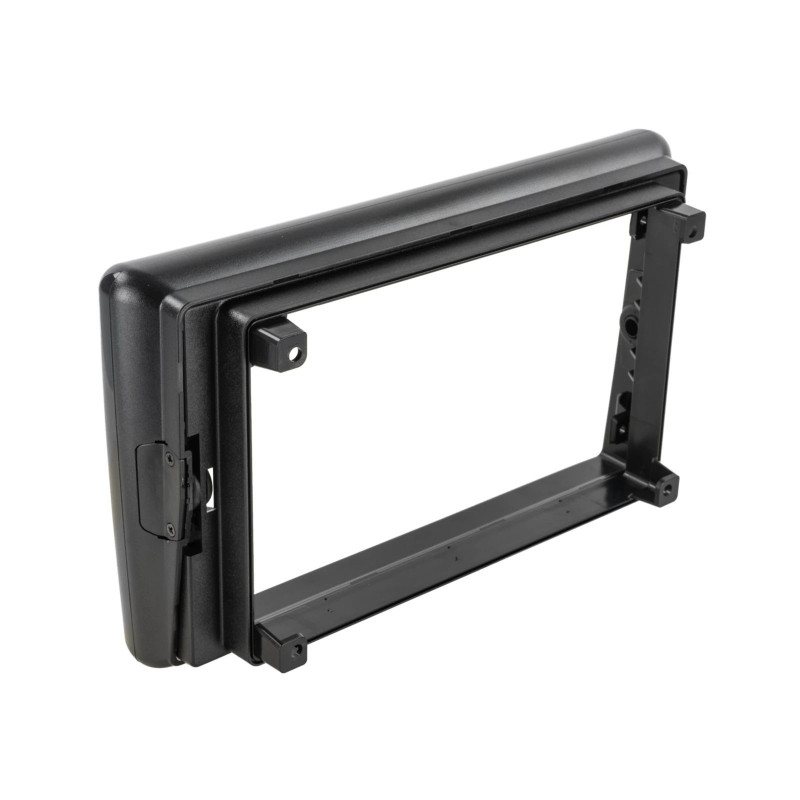

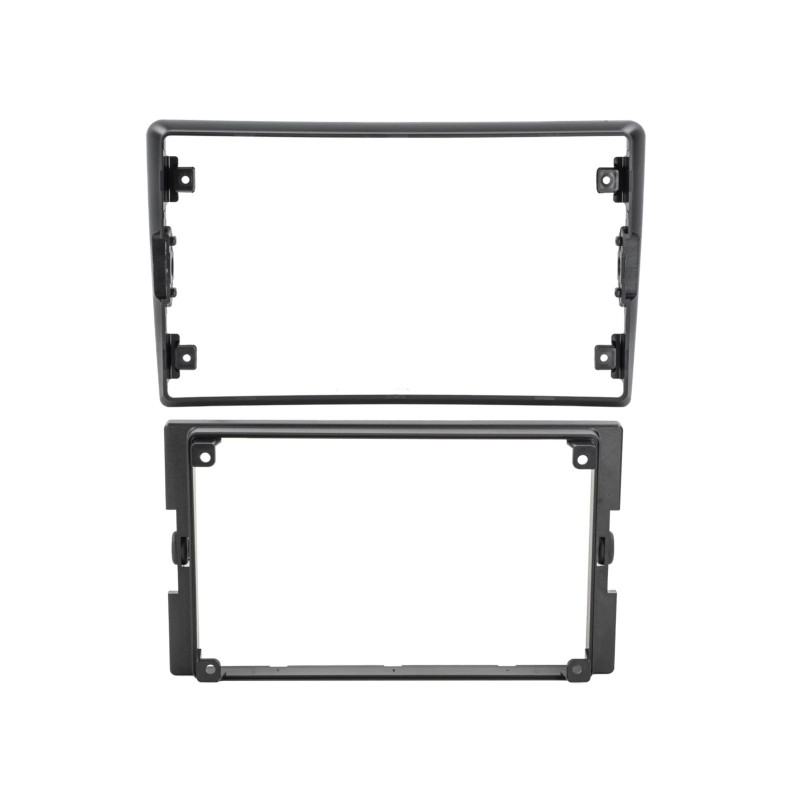

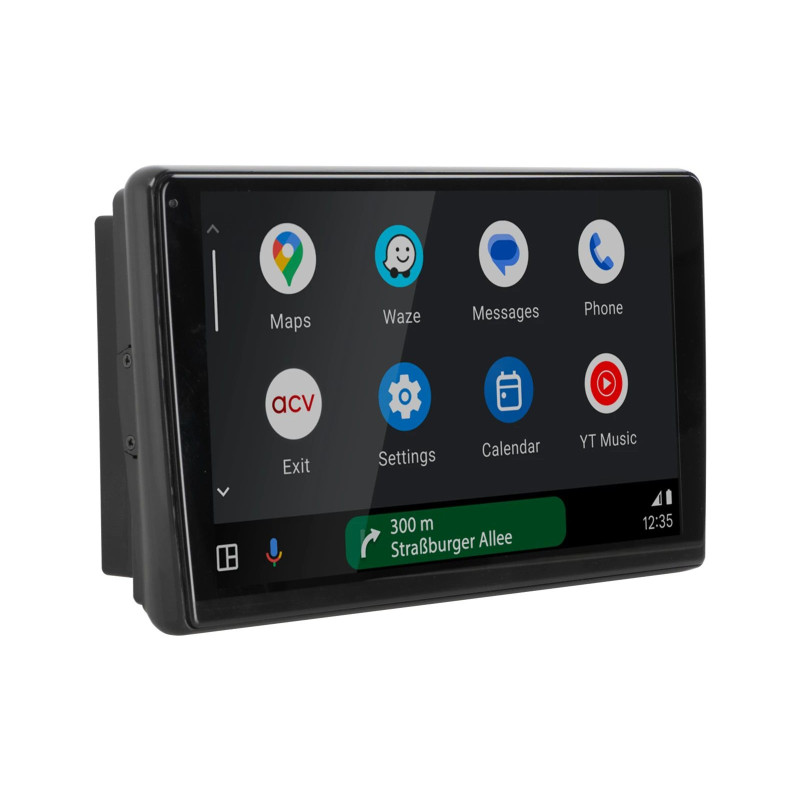

The 2-DIN adapter for 9-inch displays is designed for mounting modern multimedia stations in compatible ACV mounting frames. It allows for an aesthetically pleasing fit of the radio to the dashboard and simplifies the installation of devices equipped with a 9-inch screen.

The product is designed to work with 2 DIN frames with a mounting hole. 113 × 183 mm, ACV mounting kits, and selected frames with pockets. Thanks to the adjustable screen position, it is possible to set the display at an optimal angle relative to the driver.

Key features

• adapter for mounting 9" displays
• compatibility with ACV 2 DIN mounting frames,
• the ability to adjust the screen position vertically by 8°,
• distances 6.5 mm and 13 mm complete,
• aesthetic fit of the display to the dashboard,
• solid construction ensuring stable installation.

Technical data

• Product type: 2 DIN adapter for 9" screens
• Color: black
• Display mounting hole: 230/220 × 130 mm
• Compatible with ACV frames with mounting hole 113 × 183 mm
• Adjusting the display angle: 8° vertical

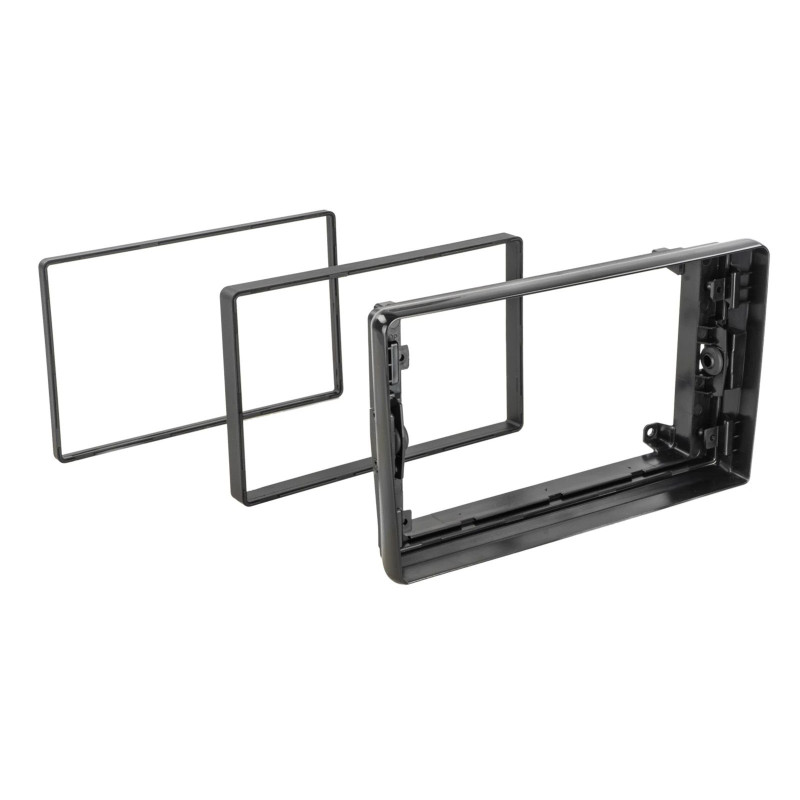

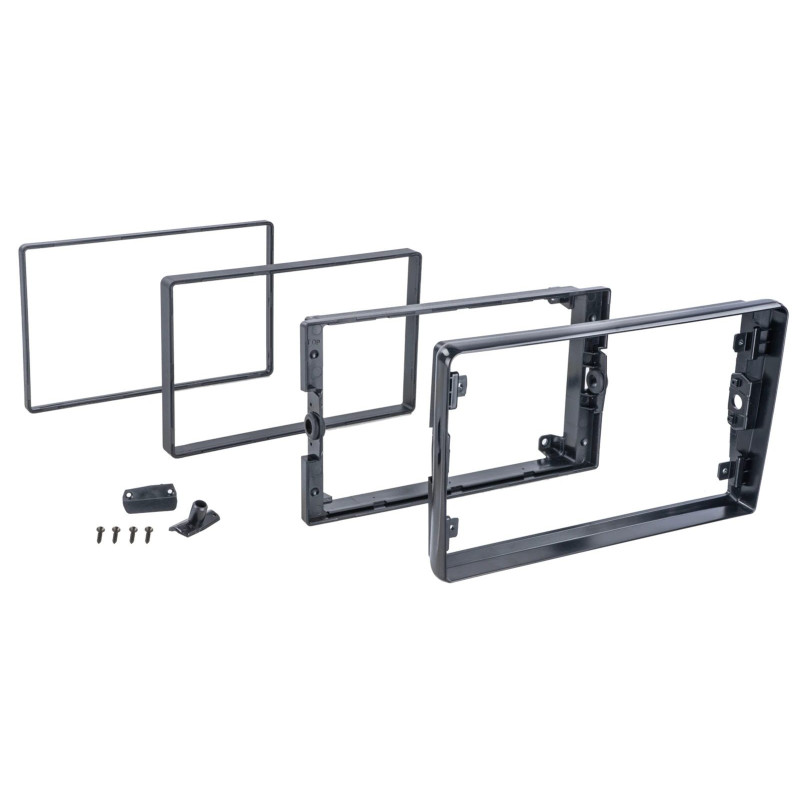

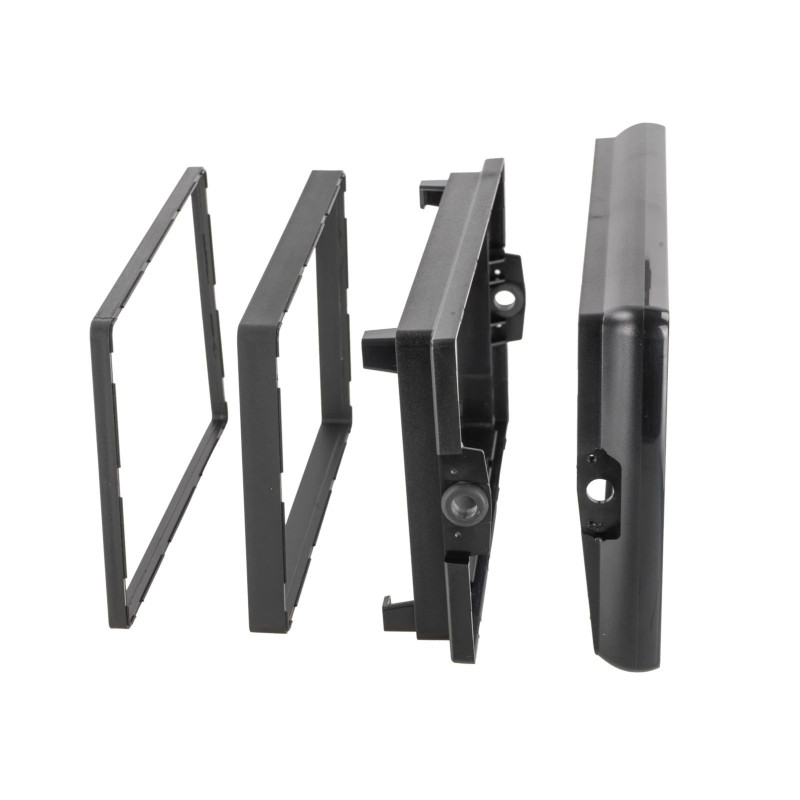

• Spacers included in the set: 6.5 mm and 13 mm

Important information

• ZENEC Z-E1109 - is not compatible.
• For Tablet devices, you must take into account the space required by the heat sink located at the back of the device.
• Tablets with large heatsinks are not compatible with the adapter.
• Before installing L-Body devices, it is recommended to check the available mounting space in the vehicle.
• The display is attached using accessories provided by the device manufacturer.
• The mounting frame should be mounted in the radio mounting hole using appropriate mounting elements.

Compatibility

The adapter is designed to work with the following mounting frames ACV.

2 DIN frames with mounting kit

• 2-DIN Mounting frame Alfa 147(937)GT(937) silver gt; Article: 381001-07
• 2-DIN Mounting frame Alfa 147(937)GT(937) anthracitegt; Article: 381001-77
• 2-DIN Mounting frame Fiat Panda(ZAF 169) 10/2003-03/2013 gray gt; Article: 381094-12
• 2-DIN Mounting frame Citroen/Fiat/Opel/Peugeot black gt; Article: 381094-18
• 2-DIN Mounting frame Citroen/Fiat/Opel/Peugeot rubberized surface gt; Article: 391094-18
• 2-DIN Fiat mounting frame Idea(350) 01/2004-01/2008 gray gt; Article: 381094-20
• 2-DIN Mounting frame Citroen/Fiat/Opel 2-DIN gt; Article: 381094-39-1
• 2-DIN Lancia mounting frame Musa(3
