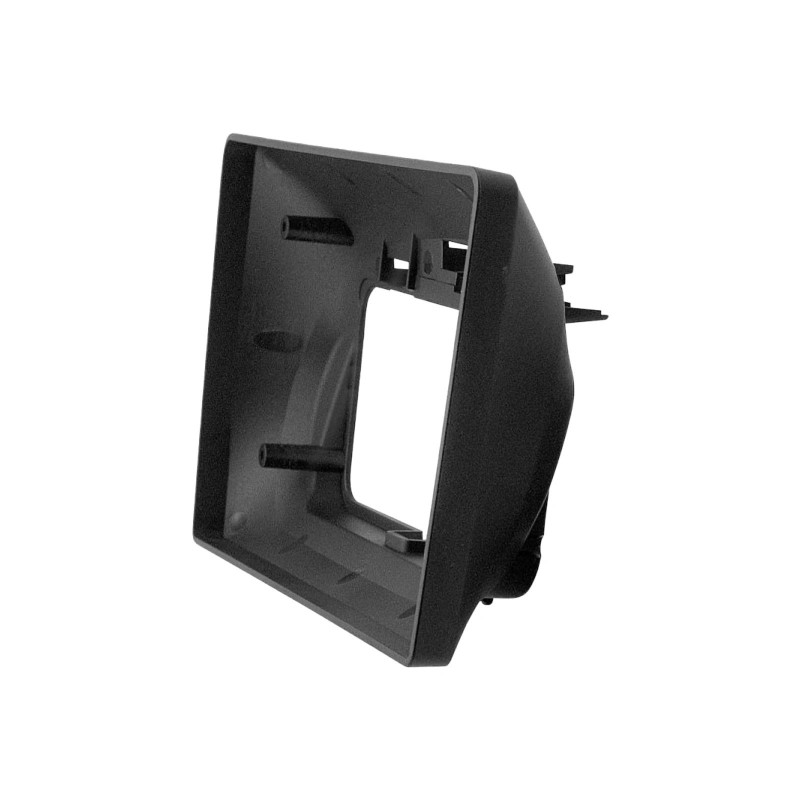

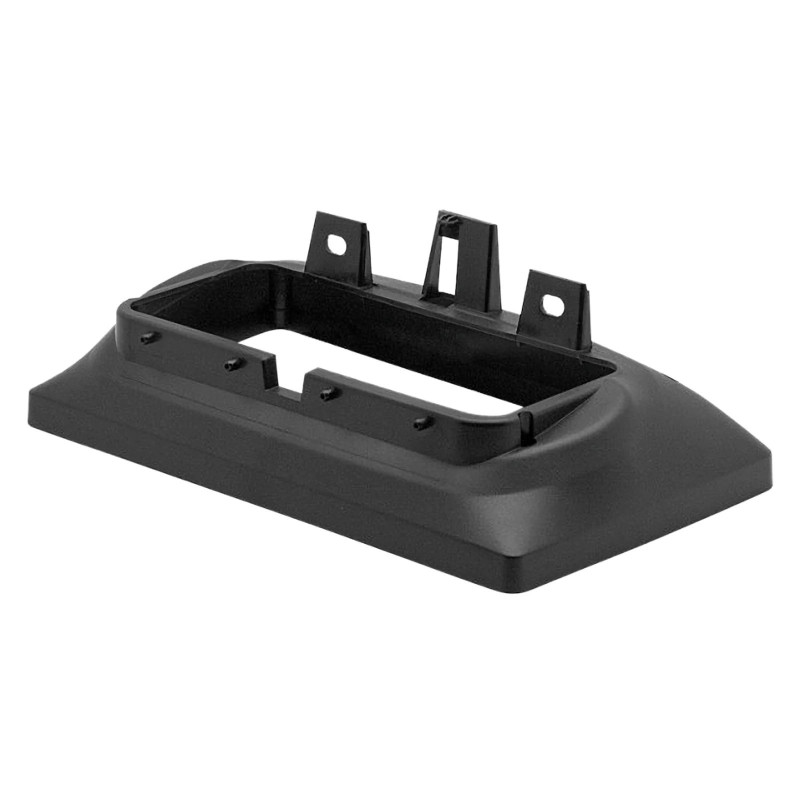

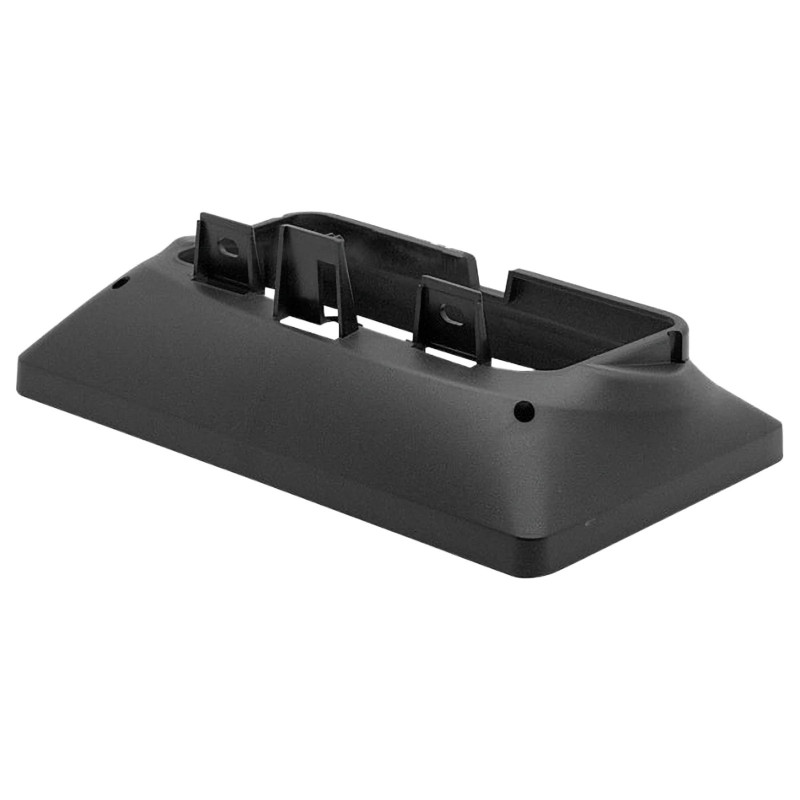

10 inch radio bezel Ford Fiesta (JHH) 2017-2023 (black) 381114-190-1

The 10-inch mounting frame was designed specifically for the model Ford Fiesta (JHH) produced in the years 06/2017-07/2023 This product allows you to replace your factory radio or navigation system with a modern aftermarket multimedia radio, thus upgrading your vehicle's audio system and multimedia features.

In many modern cars, manufacturers use OEM systems that are perfectly matched to both the interior styling and functionality of the specific car model. However, when replacing the factory unit with a larger-screen radio, installing the standard unit often requires a custom-fit bezel. This allows for proper alignment of the mounting hole and an aesthetically pleasing finish to the center console.

Moreover, the 10-inch radio frame for the Ford Fiesta has been designed to ensure harmonious integration of the new device with the dashboard. Furthermore, the proper fit allows for a look close to the factory one, giving the new radio a clean and professional appearance.

Furthermore, using the right frame not only improves the appearance of the interior but also the stability of the installation. This ensures the device remains properly seated and the entire installation is more organized.

Advantages of the radio frame

• Perfect fit for Ford Fiesta (JHH) • Allows for radio installation 10″ aftermarket • Provides an aesthetic finish to the center console • Helps maintain a look similar to the factory interior • Stabilizes multimedia device installation • Supports the integration of modern audio and navigation systems • Solid construction and durable workmanship

Vehicle compatibility

The frame fits the following models:

Ford

Ford Fiesta (JHH) • 06/2017 - 03/2022

Ford Fiesta (JHH) • 03/2022 - 07/2023

Technical data

• Radio size: 10 inches
• Color: black
• Product type: mounting frame / radio frame / installation panel
• Mounting hole dimensions: 250/241 × 146 mm

Vehicle equipment compatibility

The product is intended for vehicles:

• with factory top unit OEM Top HU • without factory unit 1-DIN OEM HU • without open dashboard ( open dash )

At the same time, before purchasing, it is worth making sure that the interior configuration meets the installation requirements, as individual equipment versions may differ in design details.

Compatible devices

The frame has been prepared to work with the following types of devices:

• devices 10″ Short Body with trapezoidal monitor• devices 10″ modular with trapezoidal monitor and unit Silverbox • devices 10″ L-Body with the body placed at the bottom

However, in the case of devices such as L-Body It is recommended to check the individual installation space beforehand, as the specific vehicle configuration may affect the installation method.

Additional adapters and interfaces

Depending on your vehicle's equipment level and audio system, additional mounting accessories may be required. Therefore, it's important to verify the compatibility of all components before beginning installation.

The most commonly required components are:

• radio connection cables • antenna adapter • steering wheel control adapter • reversing camera adapter • active audio system adapter

Since different equipment versions may use different electrical installations, using appropriate adapters allows you to maintain the full functionality of the new device.

Installation

• Mounting the main unit with individually selected accessories • Mounting the display with appropriate installation elements • Recommended additional securing of the radio panel in the mounting pocket using appropriate fasteners • Possibility of making minor adjustments using workshop tools, if necessary

Additionally, before beginning installation, it's worth checking the wiring layout and mounting space. This will make the entire process simpler, faster, and more precise.
