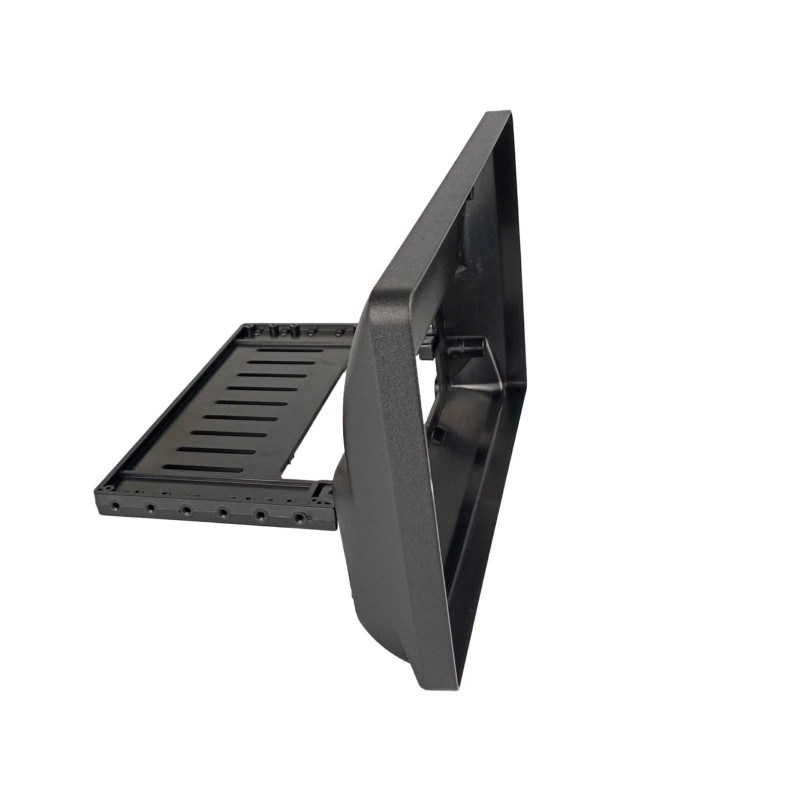

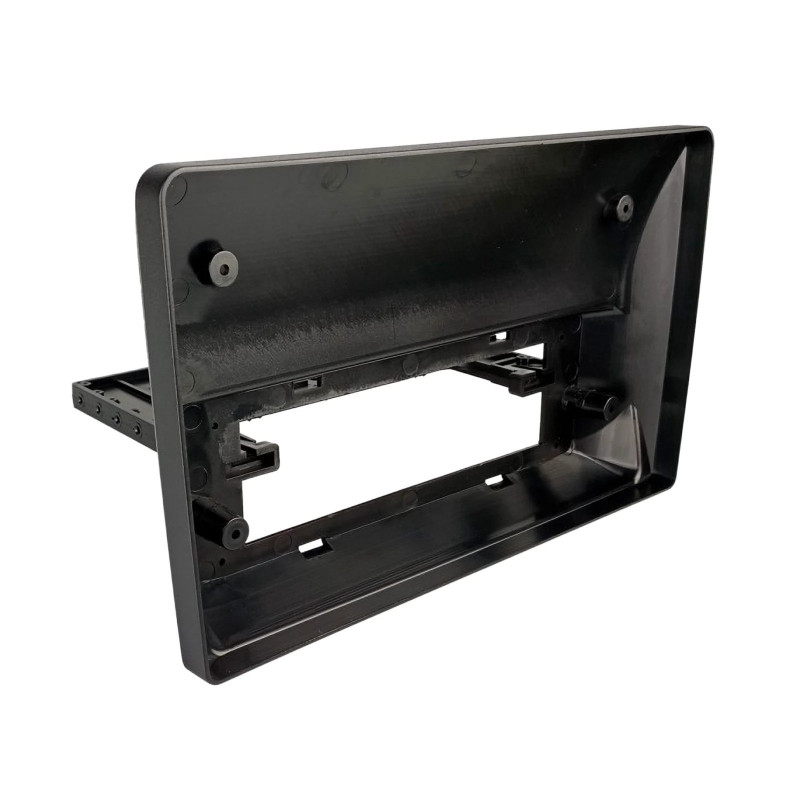

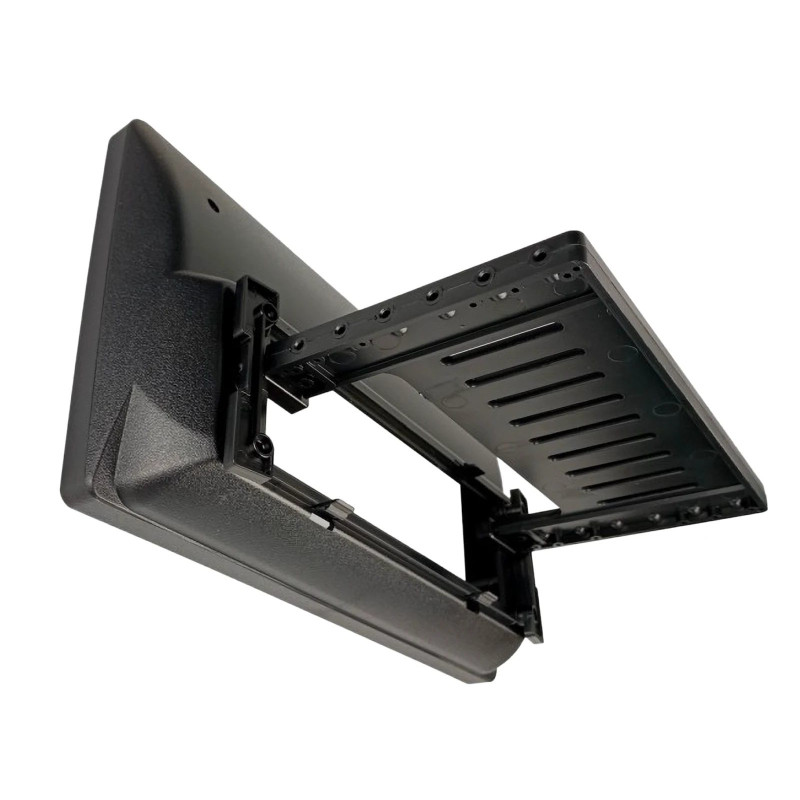

10 inch Ford Transit (FD) 2019-2026 radio frame with factory 1-DIN radio (black) 381114-195-1

10 inch mounting frame designed for Ford Transit (FD) from 06/2019-2026 was designed to replace the factory audio system with a modern aftermarket multimedia radio.

In many commercial vehicles, manufacturers use OEM devices that are designed to fit both visually and functionally to the specific vehicle configuration. Therefore, when replacing the stock radio, it's essential to use a suitable mounting frame. This allows for proper alignment of the mounting hole for the 10-inch device while also preserving the aesthetic appearance of the center console.

Moreover, the product enables professional integration of the new multimedia system with the vehicle's interior. This allows drivers to expand the car's functionality with modern solutions such as GPS navigation, Bluetooth, Apple CarPlay, and Android Auto.

Advantages of the radio frame

• Allows installation of a 10″ aftermarket multimedia radio • Ensures aesthetic fit to the Ford Transit interior • Thanks to its appropriate design, it improves the appearance of the radio installation • Allows replacement of the factory radio with a modern multimedia device • Compatible with vehicles equipped with a radio 1-DIN OEM and radio preparation • Solid construction increases durability of use

Ford Vehicle Compatibility

Ford Transit (FD) • 06/2019 - 2026

Therefore, before purchasing, it is worth making sure that the vehicle meets the requirements for factory equipment.

Important Compatibility Information

The frame is intended for vehicles:

• with factory OEM 1-DIN device • with radio preparation • without factory device mounted on top of the dashboard (OEM Aufsatzgerät)

At the same time, the product not compatible with 10″ L-Body devices, therefore, before choosing a radio, its construction should be verified.

Technical data

• Radio size: 10 inches
• Color: black
• Mounting hole dimensions: 250/241 × 146 mm

Additional adapters and interfaces

Depending on your vehicle's equipment level, additional installation components may be required. These most commonly include:

• radio connection cables • antenna adapter • steering wheel control adapter • reversing camera adapter • active audio system adapter

Moreover, properly selected interfaces help maintain the functionality of the vehicle's factory equipment, so it is worth selecting them according to the specific configuration of the car.

Supported devices

The frame is compatible with:

• devices 10″ tablet with trapezoidal monitor • devices 10″ modular with screen and unit Silverbox

However, the devices 10″ L-Body not compatible with this frame model.

Installation

• mounting the main unit with individually selected accessories • mounting the display with appropriate installation elements • possibility of additionally attaching the frame in the radio pocket using appropriate fastening elements • if necessary, possibility of
