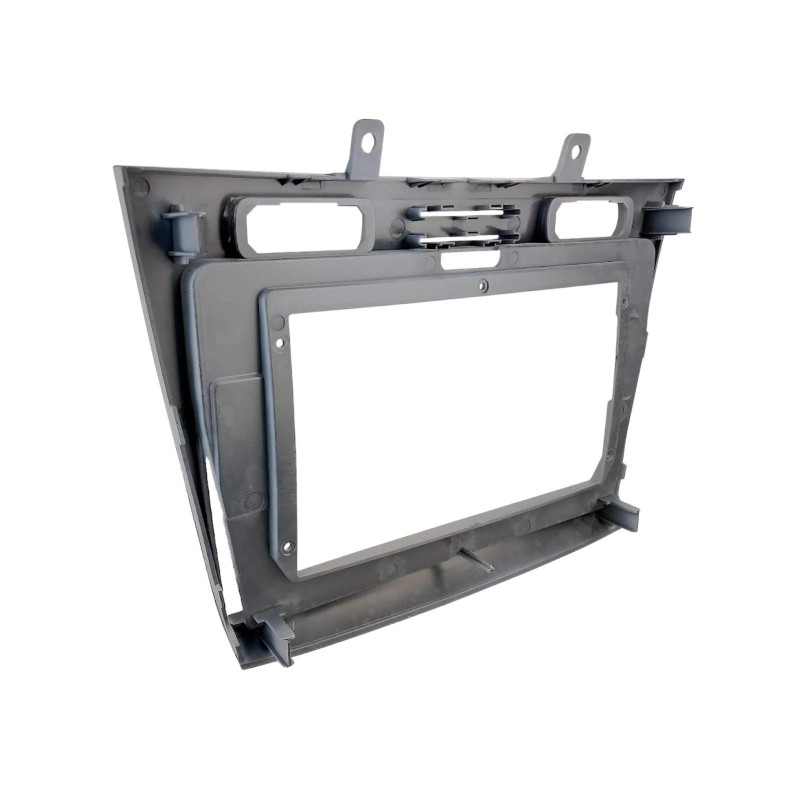

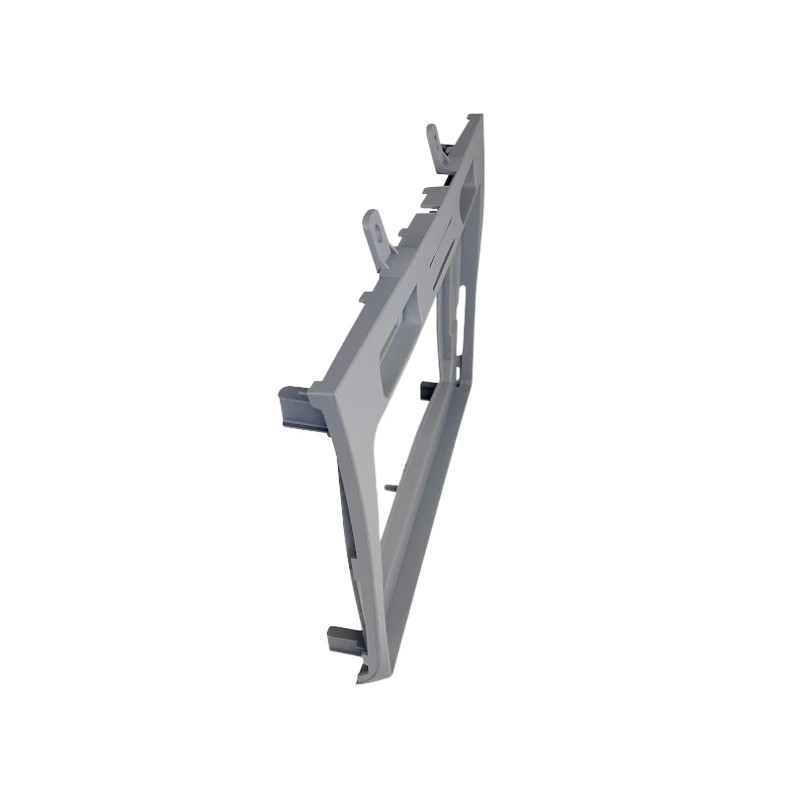

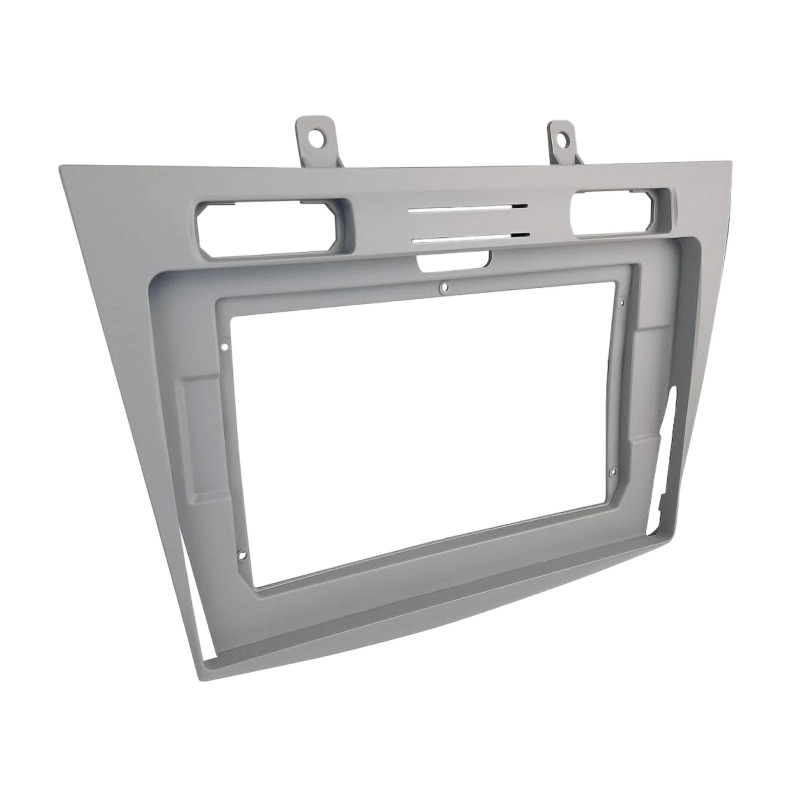

10 inch Ford Transit Connect / Tourneo Connect radio frame (silver) 381114-191-1

10-inch Ford Transit Connect / Tourneo Connect radio bezel (silver)

10-inch mounting frame for models Ford Transit Connect and Ford Tourneo Connect It was designed to replace the factory radio or navigation system. It allows for the installation of a modern aftermarket multimedia device.

In many cars, manufacturers use OEM radios that complement both the appearance of the vehicle's interior and its functionality. Therefore, when replacing a standard unit, it's essential to use a suitable mounting frame. This allows for proper alignment of the installation opening for 10-inch devices while also preserving the aesthetic appearance of the dashboard.

Moreover, the frame allows for seamless integration of the new display with the dashboard, giving the multimedia system upgrade a professional look. Furthermore, the product is suitable for mounting devices equipped with Android Auto, Apple CarPlay, Bluetooth, or GPS navigation.

Advantages of the radio frame

• Allows installation of a modern 10″ aftermarket radio • Provides an aesthetic finish to the center console • Thanks to its tailored design, it improves the appearance of the installation • Allows replacement of the factory radio with a modern multimedia system • Supports professional integration of the new screen with the vehicle interior • Solid construction ensures durability during everyday use

Ford Vehicle Compatibility

Ford Transit Connect (PH2/PJ2) • 06/2009 - 07/2013

Ford Tourneo Connect (PH2/PJ2) • 06/2009 - 08/2011

Therefore, before purchasing, it is worth checking the compatibility of the vehicle model and year to ensure the frame fits correctly.

Technical data

• Radio size: 10 inches
• Color: silver
• Mounting hole dimensions: 250/241 × 146 mm

Additional adapters and interfaces

Depending on the vehicle's equipment level, additional mounting hardware may be required. These most commonly include:

• radio connection cables • antenna adapter • steering wheel control adapter • reversing camera adapter • active audio system adapter

Additionally, carefully selected accessories help maintain the functionality of the vehicle's factory systems. Therefore, it's worth selecting them for your specific vehicle configuration.

Supported devices

The frame is compatible with:

• devices 10″ tablet with trapezoidal monitor • devices 10″ modular with screen and unit Silverbox • devices 10″ L-Body - however, in this case, the individual mounting space in the vehicle must be checked

Installation

• mounting the main unit with individually selected accessories • mounting the display with appropriate installation elements • possibility of additionally attaching the frame in the radio pocket using appropriate fastening elements • if necessary, possibility of adjusting the elements using workshop tools

As design differences may occur between equipment versions, it is recommended to check the installation space in the car beforehand.

Optional accessories

Optional display reductions are available:

• reduction
