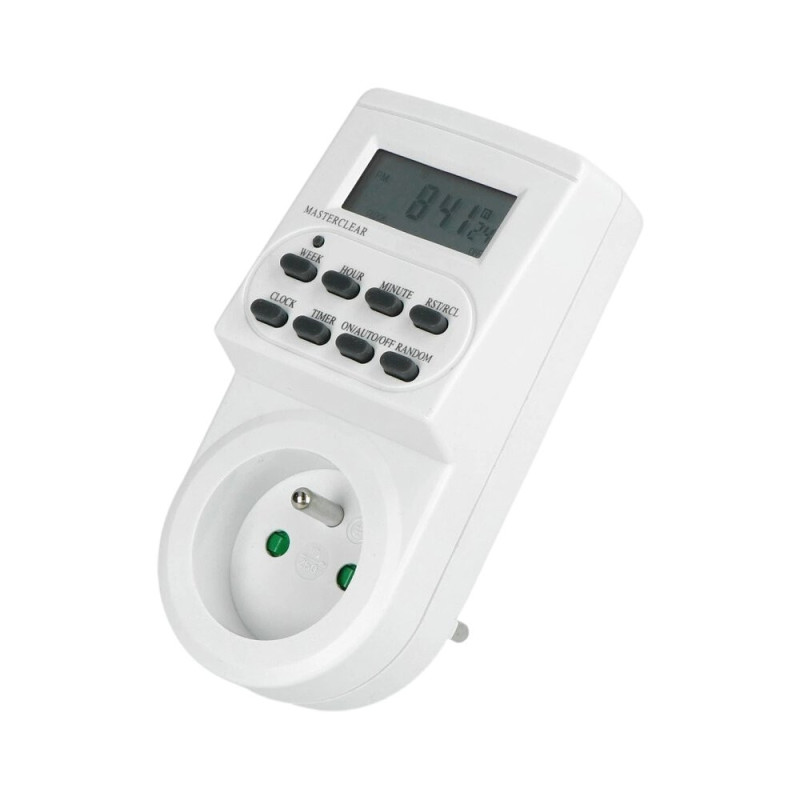

Digital Timer - DPM DT03, White
Product reference:
14-5906881174241
Digital timer for automatic control of devices connected to a 230 V AC network according to a 24-hour or weekly cycle. 10 programs can be set, one-minute intervals, and the maximum load is 16 A (3,680 W); protection class - IP20, for indoor use.
Digital Timer - DPM DT03, White
Product reference:
14-5906881174241
Digital timer for automatic control of devices connected to a 230 V AC network according to a 24-hour or weekly cycle. 10 programs can be set, one-minute intervals, and the maximum load is 16 A (3,680 W); protection class - IP20, for indoor use.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Not available
DPM DT03 Digital Timer, White
Digital timer for automatic control of devices connected to a 230 V AC network according to a 24-hour or weekly cycle. It has 10 programs, supports loads up to 16 A (3,680 W), allows setting one-minute intervals and is intended for indoor use (IP20).
- Digital timer programmer for automatically turning connected electrical devices on and off
- Supports 24-hour and weekly scheduling with 10 independent programs
- Supports loads up to 16 A (3,680 W) at 230 V AC, 50 Hz
- Built-in NiMH backup battery saves set programs for over 100 hours in the event of a power outage
Product information | |
|---|---|
| Product type | Digital timer programmer |
| Model | DPM DT03 |
| Color | White |
| Purpose | Automatic control of devices connected to a 230 V AC electrical outlet according to a set schedule |
Technical specifications | |
| Operating voltage | 230V AC, 50Hz |
| Maximum load | 16A / 3,680W |
| Planning modes | 24-hour and weekly |
| Minimum switching interval | 1 minute |
| Protection class | IP20 |
| Recommended usage environment | For indoor use only. |
Features | |
| Independent programs | 10 |
| Weekly planning | Schedules can be assigned to individual days of the week or possible combinations of days |
| Backup power in case of power outage | Built-in 1.2 V DC NiMH battery stores set programs and allows the timer to operate for more than 100 hours without mains power |
| Random switching function | Randomly turns on the connected device in the evening and at night for periods of 10-31 minutes |
Safety information | |
| Safety warning | For indoor use only. Connect only devices compatible with 230 V AC power supply and do not exceed the maximum load of 16 A / 3680 W. Do not use in damp or wet locations. Unplug the programmer before cleaning or servicing connected equipment. Keep out of the reach of children. |
| Height | 120mm |
| Length | 80mm |
| Weight | 300g |
| Width | 100mm |
