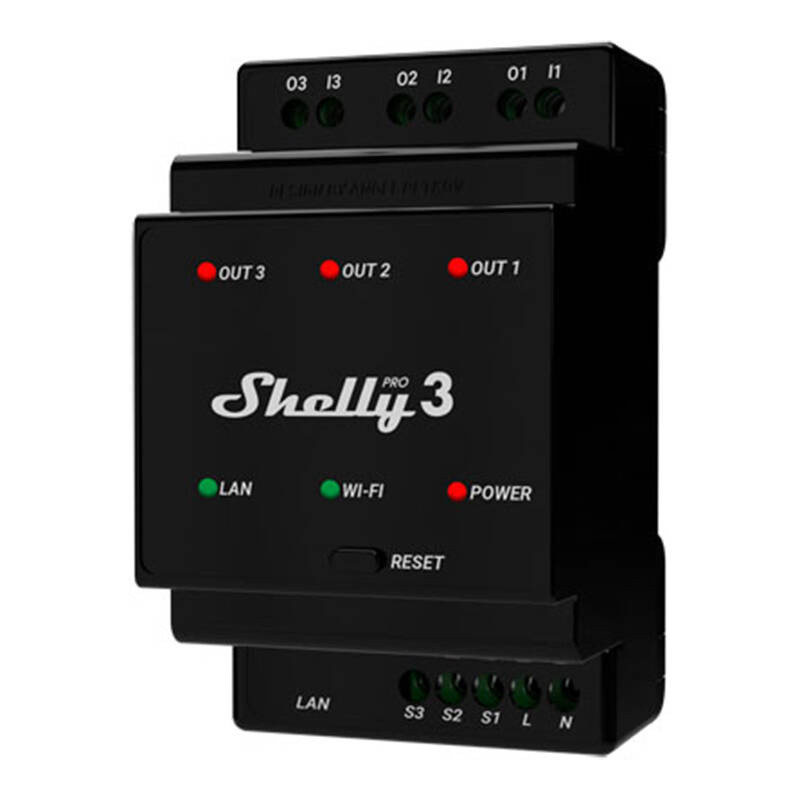

Home Automation Device - Shelly Pro 3 DIN Rail 3-Channel Relay WiFi / LAN
Product reference:
14-3800235268094
Shelly Pro 3 is a 3-channel relay for DIN rail mounting, capable of switching loads up to 16 A per channel. It supports WiFi, LAN and Bluetooth connectivity, making it perfect for home and building automation solutions.
Home Automation Device - Shelly Pro 3 DIN Rail 3-Channel Relay WiFi / LAN
Product reference:
14-3800235268094
Shelly Pro 3 is a 3-channel relay for DIN rail mounting, capable of switching loads up to 16 A per channel. It supports WiFi, LAN and Bluetooth connectivity, making it perfect for home and building automation solutions.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Shelly Pro 3 DIN rail 3-channel relay
Shelly Pro 3 is a 3-channel relay for DIN rail mounting, capable of switching loads up to 16 A per channel. It supports WiFi, LAN and Bluetooth connectivity for home and building automation applications.
- Control up to three independent channels with a total power of up to 48 A for a variety of automation solutions.
- Effortlessly integrates with popular voice assistants like Google Assistant, Amazon Alexa, and Samsung SmartThings for hands-free control.
- Supports WiFi, LAN and Bluetooth connectivity for flexible remote access and control.
- Perfect for automating various home functions such as lighting, door locks, and irrigation systems.
Features | |
|---|---|
| Product type | 3-channel relay module |
| Brand | Shelly |
| Model | SPSW-003XE16EU |
Specifications | |
| AC power supply voltage | 110 - 240V |
| Power | < 3W |
| Maximum AC switching voltage | 240V |
| Maximum DC switching voltage | 30V |
| Maximum AC switching current | 16 A per channel, 48 A total |
| Maximum DC switching current | 16 A per channel, 48 A total |
| Internal temperature sensor | Yes |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth protocol | 4.2 |
| Bluetooth range | Up to 10 m indoors and up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash memory | 8MB |
| Dimensions | 96 x 53 x 59 ±0.5 mm |
| Installation | DIN rail |
| Housing material | Plastic |
| Operating temperature | From -20°C to +40°C |
| Humidity | 30% to 70% RH |
| Maximum height | 2000 |
Safety warning | |
| Use the product only for its intended purpose. | |
| Length | 150mm |
| Height | 100mm |
| Width | 200mm |
| Weight | 250 g |
