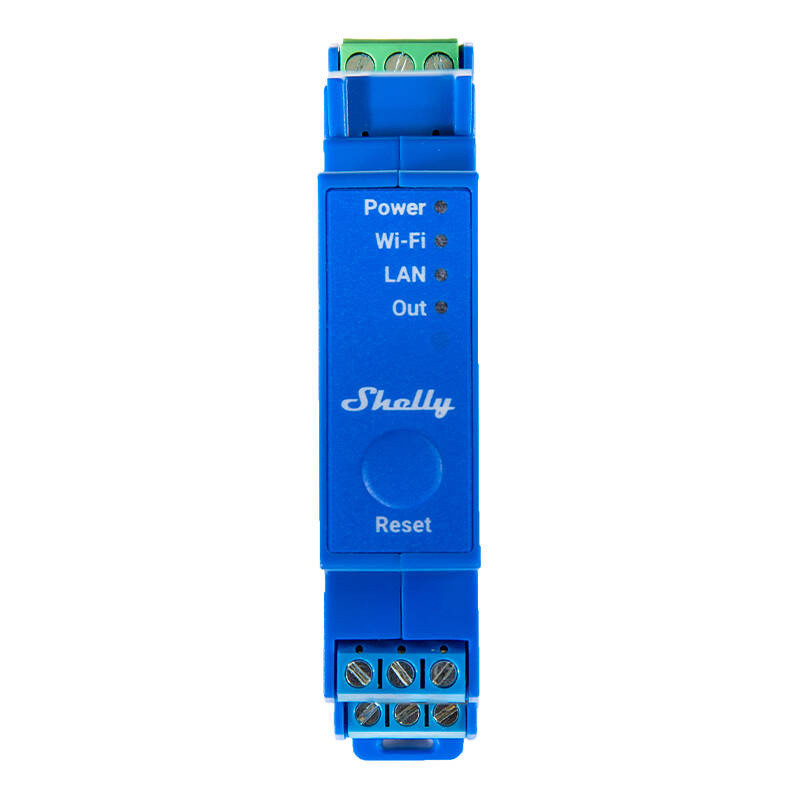

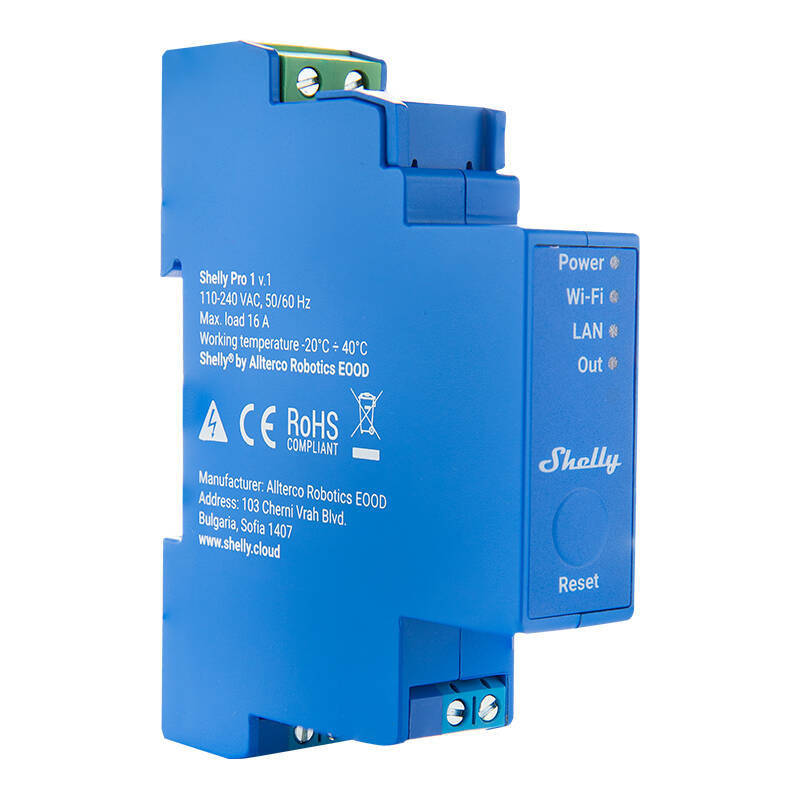

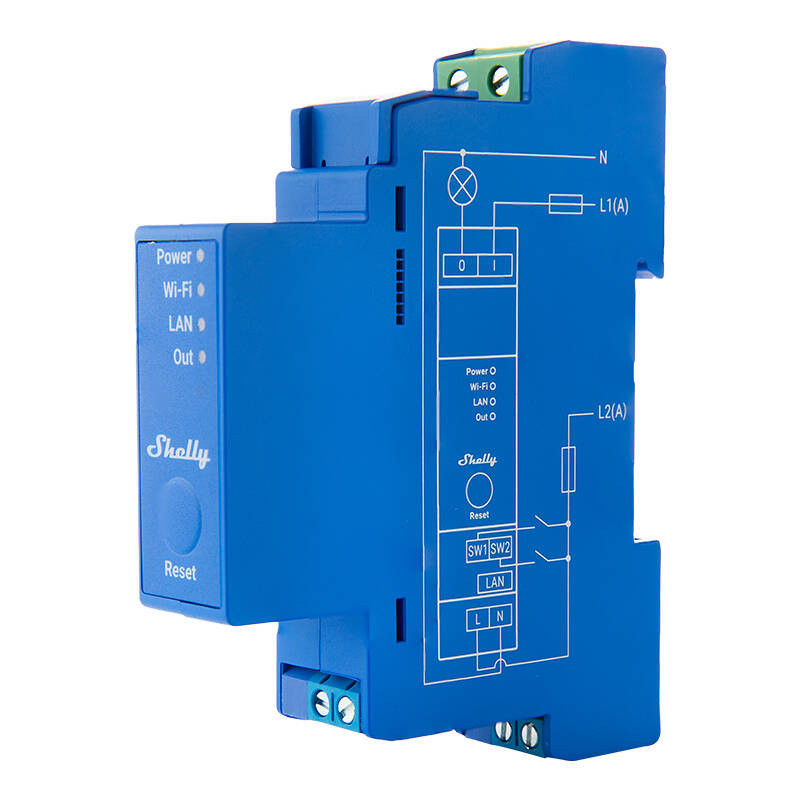

Home automation device - Shelly Pro 1 16A Relay WiFi LAN Bluetooth
Product reference:
14-3800235268001
Shelly Pro 1 is a DIN rail mounted relay that allows remote control of electrical devices with a maximum load of up to 16 A, supporting WiFi, LAN and Bluetooth connections. It has potential-free contacts, which enables various automation applications in homes and buildings.
Home automation device - Shelly Pro 1 16A Relay WiFi LAN Bluetooth
Product reference:
14-3800235268001
Shelly Pro 1 is a DIN rail mounted relay that allows remote control of electrical devices with a maximum load of up to 16 A, supporting WiFi, LAN and Bluetooth connections. It has potential-free contacts, which enables various automation applications in homes and buildings.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Shelly Pro 1 Voltage-Free Switch
Shelly Pro 1 is a DIN rail mounting relay that allows remote control of electrical devices with a maximum load of up to 16 A and supports WiFi, LAN and Bluetooth connectivity. It has voltage-free contacts that enable various automation applications in home and building environments.
- Intelligent single-channel relay for home and building automation with load control up to 16 A.
- Supports WiFi, LAN and Bluetooth connections, providing various control options.
- Compatible with voice assistants such as Google Assistant, Amazon Alexa and Samsung SmartThings.
- It is possible to create individual automation scenarios based on various events, thus improving the capabilities of a smart home.
Features | |
|---|---|
| Product Type | DIN rail mounting relay |
| Brand | Shelly |
| Model | SPSW-201XE16EU |
Specifications | |
| AC Power Supply Voltage | 110 - 240V |
| Power | < 3W |
| Maximum AC Switching Voltage | 240V |
| Maximum AC Inrush Current | 16 A |
| Internal Temperature Sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8MB |
| Dimensions | 94 x 19 x 69 ±0.5 mm |
| Installation | DIN rail |
| Housing | Plastic |
| Ambient Temperature | From -20°C to +40°C |
| Humidity | 30% to 70% RH |
| Maximum Height | 2000 |
Safety Warning | |
| Use the product only for its intended purpose to avoid hazards. | |
| Length | 150mm |
| Height | 100mm |
| Width | 50mm |
| Weight | 150 g |
