TP-LINK TPLINK Netzwerkadapter ARCHER TXE75E (ARCHER TXE75E)

Archer TXE75E_
Adaptér AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe
Unrivaled triple-band speed - maximum total speed up to 2,402 Mbit/sv band 6 GHz + 2,402 Mbit/sv band 5 GHz + 574 Mbit/sv band 2.4 GHz.
Standard Wi-Fi 6E — expand your network to the free and wide band 6 GHz and achieve higher transmission speeds.
Reliable connections — the latest chipset Intel® Wi-Fi 6E reduces latency and increases reliability, odomyká płun potenzal of your Wi-Fi 6E routera.
Širšie pokrytie sejnałom - dwica viacsmerových antenné s magnetickou zápezőňo ensures optimal reception of the signal.
Bluetooth 5.2 — the latest Bluetooth technology achieves higher speeds and a larger coverage.
Vylepšené zaszépecije— najvestní pokévný standard zapezpečenia WPA3 provides increased protection for personal data.
Reliable construction - a special cooler and plating increase stability and performance even at high temperatures of the processor.
Backward compatibility— full support for standard devices 802.11ax/ac/a/b/g/n.
HARDWARE FEATURES
Dimensions 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm)
Antenna Type 2× High-Gain Tri-Band Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
WLAN Signal Rate 6 GHz:
11ax: Up tp 2402Mbps
5 GHz:
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 6 GHz:
11ax HE160 MCS0:-86_
11ax HE160 MCS11:-56
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm_
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
WLAN Transmit Power 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)
2.4 GHz: 20dBm(FCC) /16dBm(CE) (EIRP)
6 GHz: 12dBm(FCC)
WLAN Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS
Certification FCC, CE, RoHS

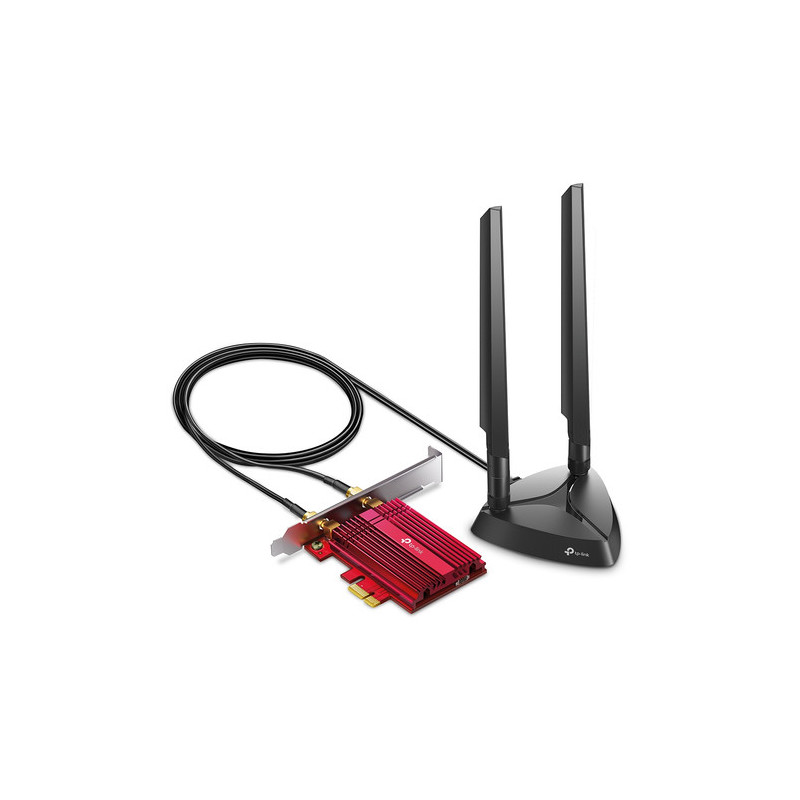

Package Contents Archer TXE75E
Magnetized Antenna Base with 1m RF Cable
2× High-Gain Antennas

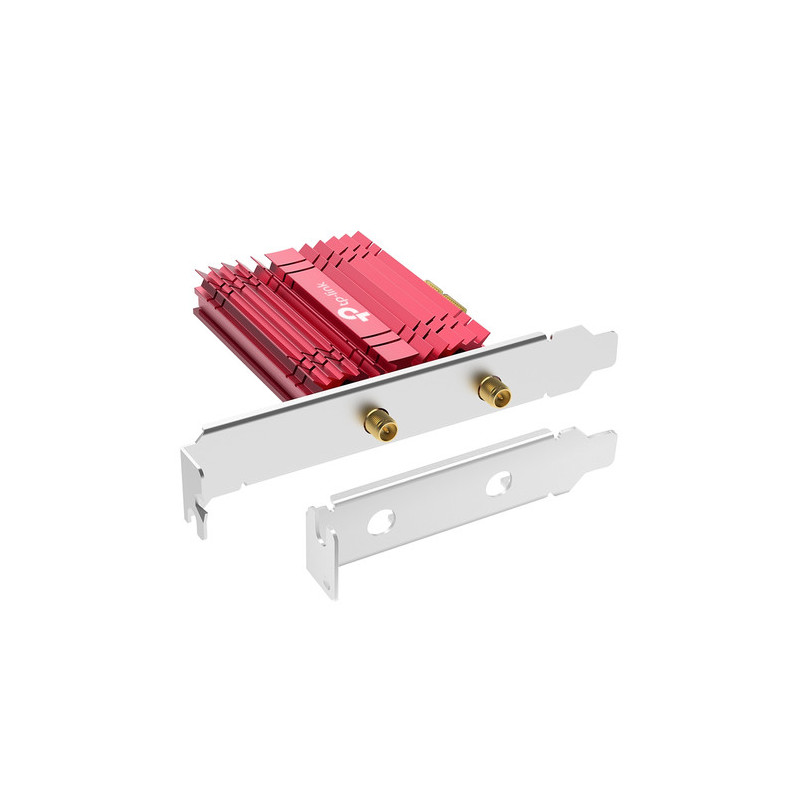

Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements Supported operating systems include Windows 10, 11(64-bit)
Environment Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
