TP-LINK Omada Gigabit VPN Router

Product reference: 18-ER605

TP-LINK Omada Gigabit VPN Router

Product reference: 18-ER605

TP-LINK Omada Gigabit VPN Router

You have 3 products in compare list, please remove someone and try again

Add to compare

6253 €

Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

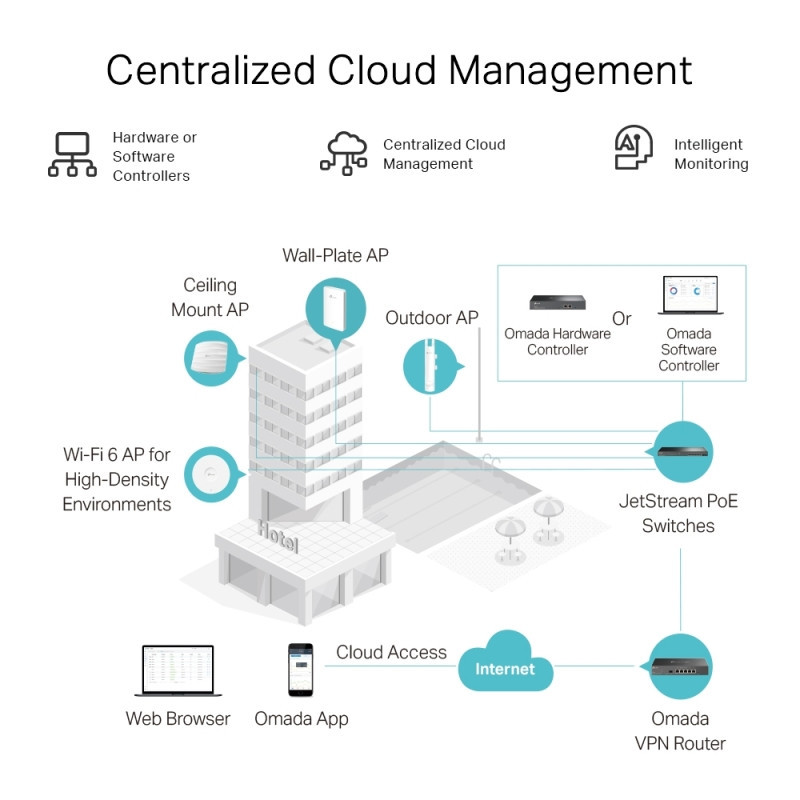

Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for convenience and easy management.

Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.

One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.^‡

Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.

Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

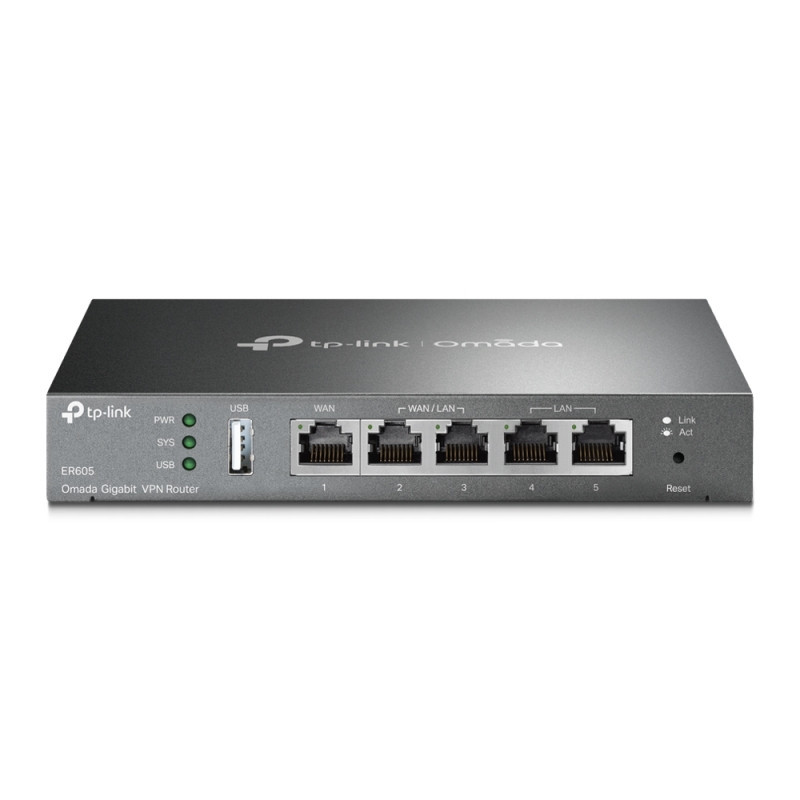

Interface	• 1 Fixed Gigabit WAN Port • 2 Fixed Gigabit LAN Ports • 2 Changeable Gigabit WAN/LAN Ports • 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup^‡)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button	Reset Button
Power Supply	External 12V/1A DC Adapter
Flash	128MB NAND
DRAM	256MB DDR
LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions (W x D x H)	6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Max Power Consumption	7.94 W

PERFORMANCE
Concurrent Session	150,000
New Sessions /Second	2,600
NAT (Static IP)	• Upload: 945.77 Mbps • Download: 945.56 Mbps • Bi-Directional: 1808.29 Mbps
NAT(DHCP)	• Upload: 945.93 Mbps • Download: 945.43 Mbps • Bi-Directional: 1808.11 Mbps
NAT(PPPoE)	• Upload: 940.44Mbps • Download: 940.52 Mbps • Bi-Directional: 1804.27 Mbps
NAT (L2TP)	• Upload: 845.64 Mbps • Download: 802.65 Mbps • Bi-Directional: 931.96 Mbps
NAT (PPTP)	• Upload: 771.66 Mbps • Download: 874.81 Mbps • Bi-Directional: 999.54 Mbps
64 Byte Packet Forwarding Rate	• Upload/Download: 1,402,238 pps • Bi-Directional: 1,681,548 pps
IPsec VPN Throughput	• ESP-MD5-AES256: 171.26 Mbps • ESP-SHA1-AES256: 224.86 Mbps • ESP-SHA2-AES256: 248.04 Mbps
OpenVPN	• 21.70 Mbps
L2TP VPN Throughput	• Unencrypted: 864.65 Mbps • Encrypted: 47.11 Mbps
PPTP VPN Throughput	• Unencrypted: 703.20 Mbps • Encrypted: 76.65 Mbps

BASIC FUNCTIONS
WAN Connection Type	• Static/Dynamic IP • PPPoE • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port^‡
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces*
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
VLANs	802.1Q VLANs
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing^§, Failover) • Online Detection
NAT	• One-to-One NAT^§• Multi-Net NAT • Virtual Server • Port Triggering^§• NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security	• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session Limit	IP-based Session Limit

VPN
IPsec VPN	• 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • 10 PPTP VPN Clients** • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • 10 L2TP VPN Clients** • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server* • 10 OpenVPN Clients^△• 16 OpenVPN Tunnels

SECURITY
Filtering	• WEB Group Filtering^§• URL Filtering • Web Security^§
ARP Inspection	• Sending GARP Packets^§• ARP Scanning^§• IP-MAC Binding^§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control	Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password* • Hotspot（Local User / Voucher* / SMS* / Radius） • External Radius Sever • External Portal Sever • Facebook*

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Web Management Interface • Remote Management • Export Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping Traceroute)^§• NTP Synchronize^§• Syslog Support
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)***

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Gigabit VPN Router ER605 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0-40 (32-104 ); • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
