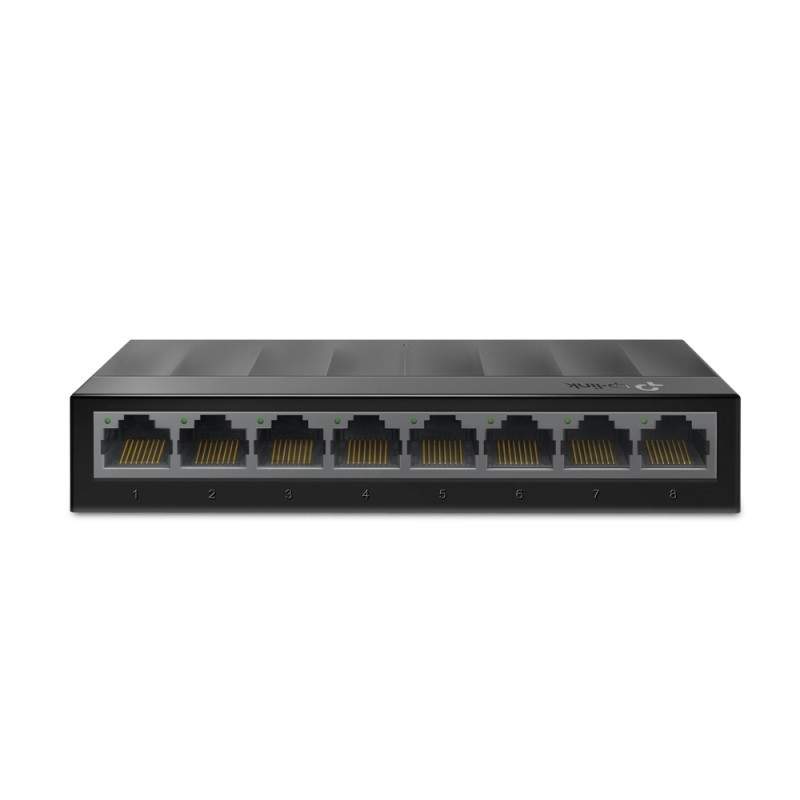

TP-LINK 8-Port 10 / 100 / 1000Mbps Desktop Switch

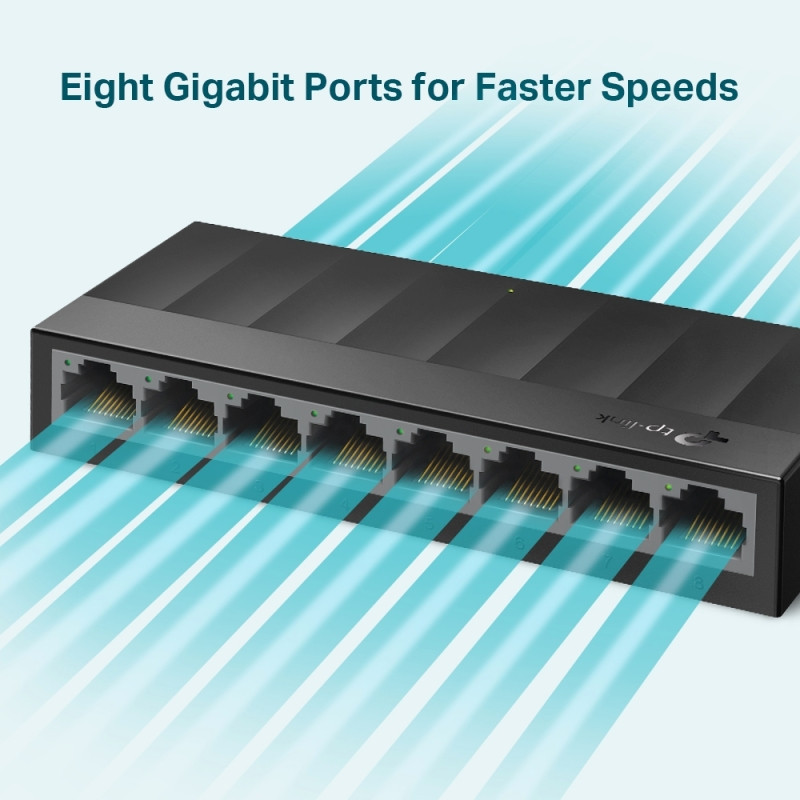

• 8× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

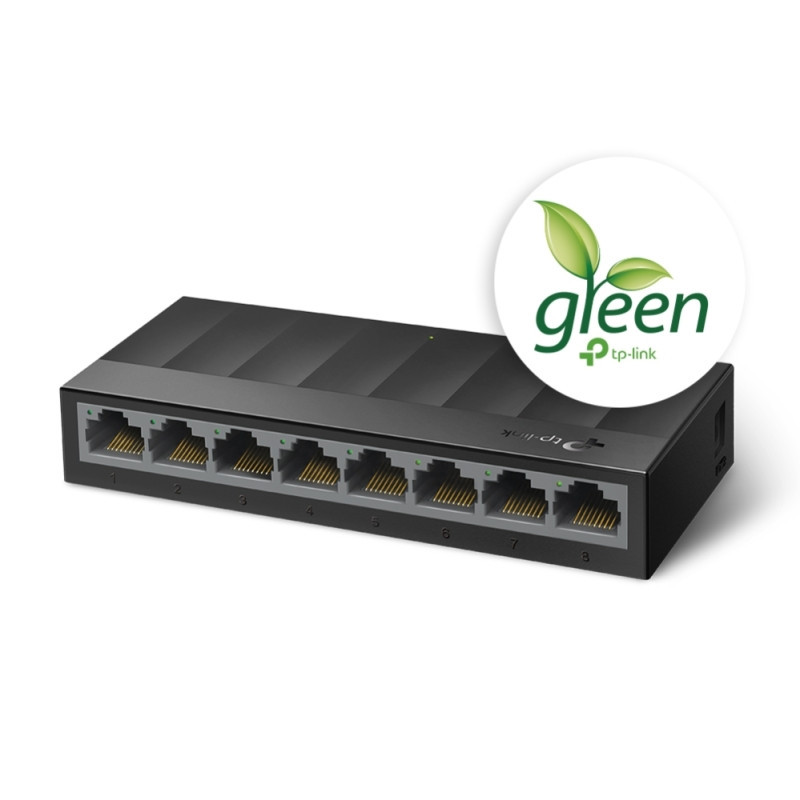

• Green Ethernet technology saves power


• IEEE 802.3X flow control provides reliable data transfer


• Plastic casing, desktop or wall-mounting design


• Plug and play, no configuration needed

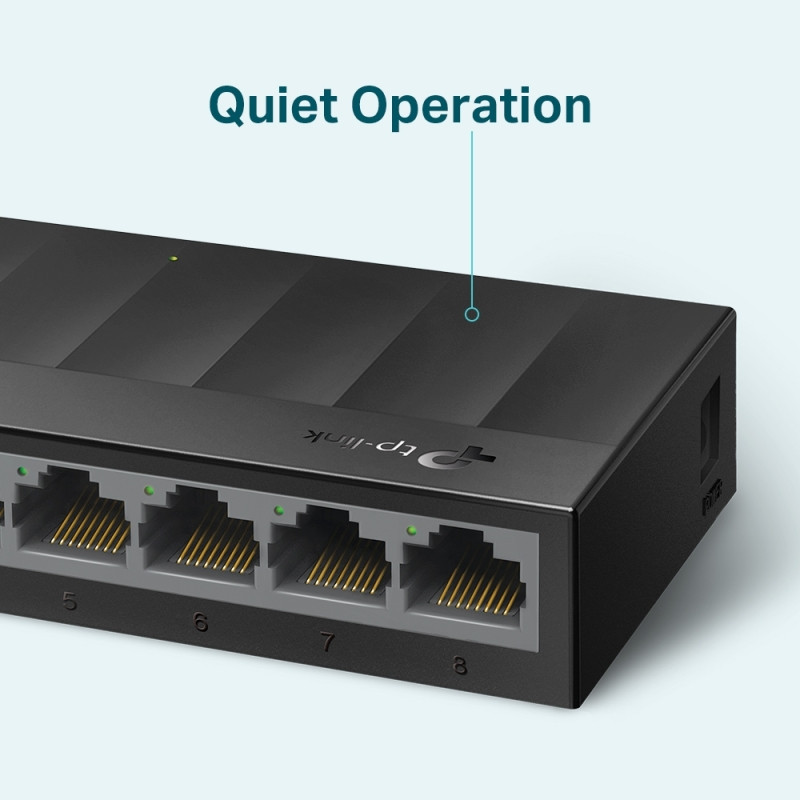

• Fanless design ensures quiet operation

HARDWARE FEATURESStandards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x Interface: 8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports Fan Quantity: Fanless External Power Supply: External Power Adapter (Output: 9VDC / 0.6A) Dimensions ( W x D x H ): 5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm) Max Power Consumption: 3.9W Max Heat Dissipation: 13.299 BTU/h

PERFORMANCESwitching Capacity: 16 Gbps Packet Forwarding Rate: 11.9 Mpps MAC Address Table: 4K Packet Buffer Memory: 1.5 Mb Jumbo Frame: 16 KB

SOFTWARE FEATURESAdvanced Features: Green Technology 802.3X Flow Control Back Pressure

Transfer Method: Store and Forward

OTHERSCertification: CE, FCC, RoHS

Package Contents: 8-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide

Environment: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
