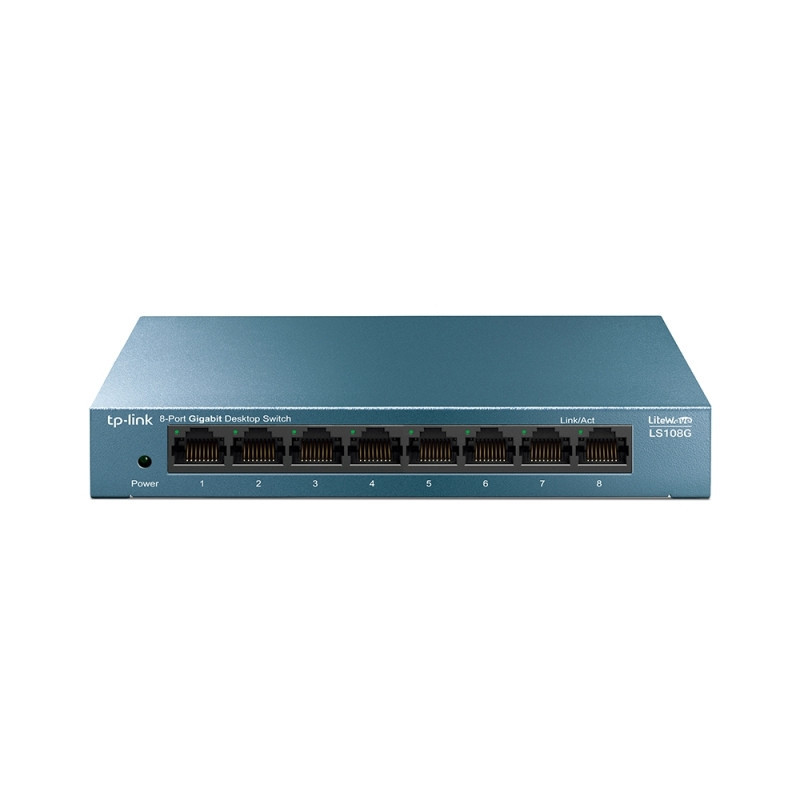

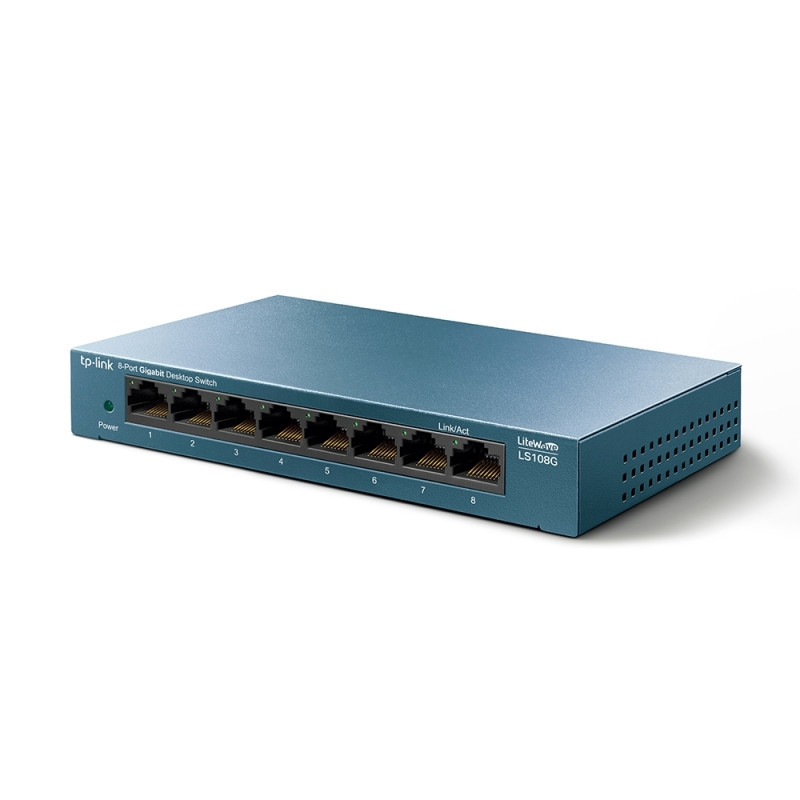

TP-LINK 8-Port 10 / 100 / 1000Mbps Desktop Switch

• 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX

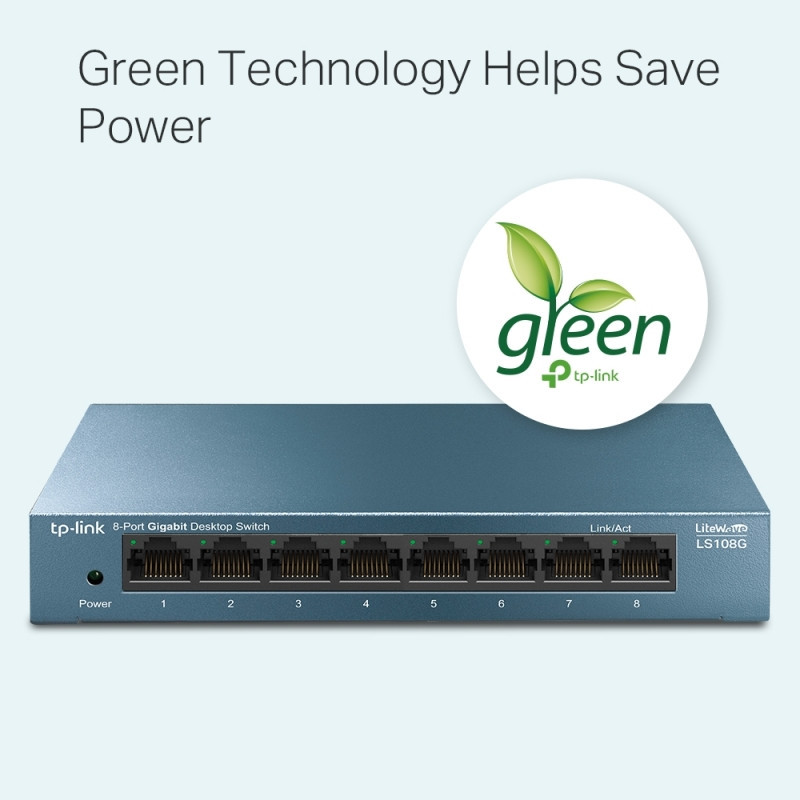

• Green Ethernet technology saves power


• IEEE 802.3X flow control provides reliable data transfer

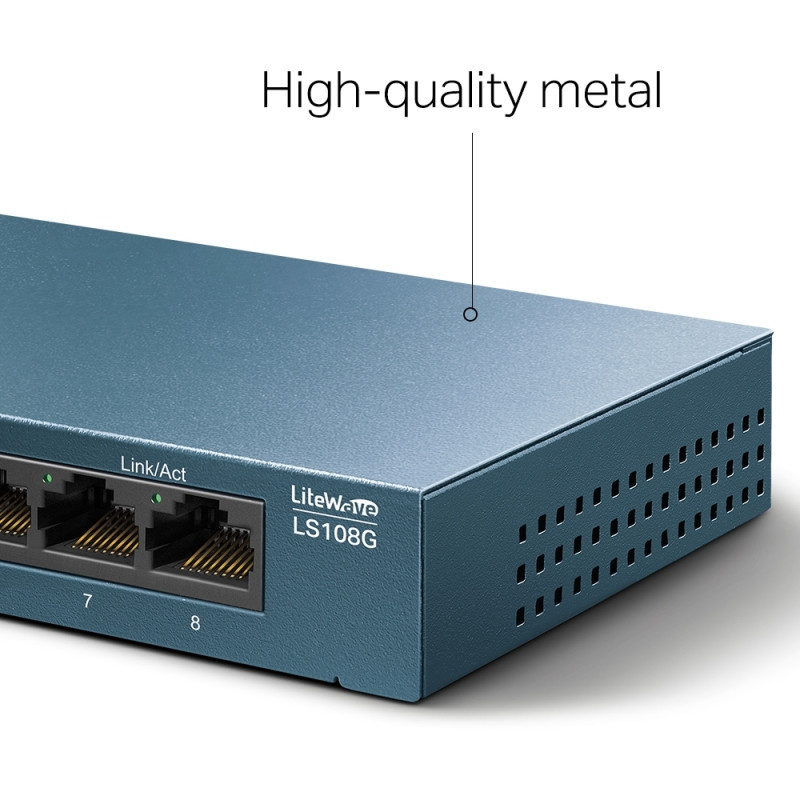

• Steel housing, desktop or wall-mounting design


• Support 802.1p/DSCP QoS function


• Plug and play, no configuration needed

Hardware Features:
• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p;
• Interface: 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports;
• Fan Quantity: Fanless;
• External Power Supply: External Power Adapter (Output: 9VDC / 0.6A);
• LED Indicators:
* System Power;
* Link/Act indicators per port built into each RJ-45 port;
Dimensions (W x D x H): 6.2 x 3.9 x 1.0 in. (158 x 99.1 x 25 mm);
• Max Power Consumption: 3.7W (220V/50Hz);
• Max Heat Dissipation: 12.617 Btu/hr.

Performance:
• Packet Forwarding Rate: 11.9 Mpps;
• MAC Address Table: 4K;
• Packet Buffer Memory: 1.5 Mb;
• Jumbo Frame: 16 KB.

Software Features:
• Advanced Features:
* Green Technology;
* 802.3X Flow Control;
* 802.1P/DSCP QoS;
• Transfer Method: Store and Forward.

Others:
• Certification: CE, FCC, RoHS;
• Package Contents:
* 8-Port 10/100/1000Mbps Desktop Switch;
* Power Adapter;
* Installation Guide;
• Environment:
* Operating Temperature: 0°C~40°C (32°F~104°F);
* Storage Temperature: -40°C~70°C (-40°F~158°F);
* Operating Humidity: 10% ~ 90% non-condensing;
* Storage Humidity: 5%~90% non-condensing.
