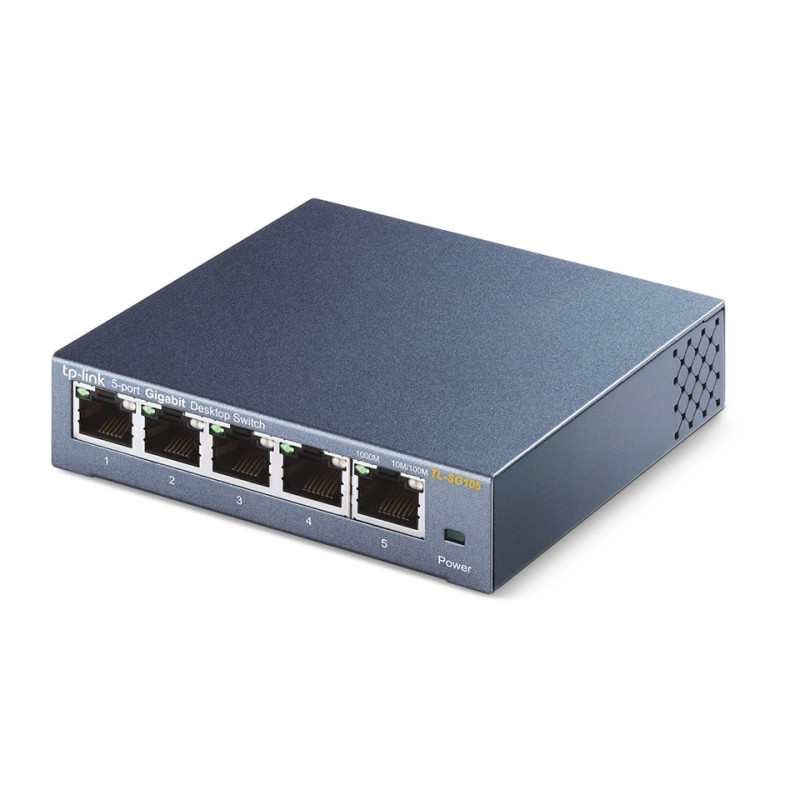

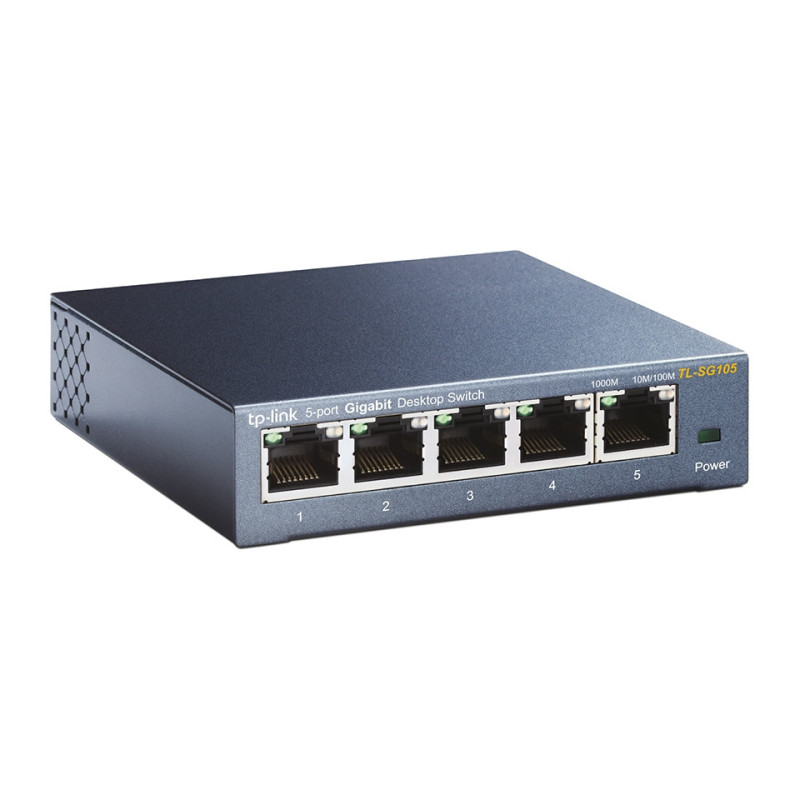

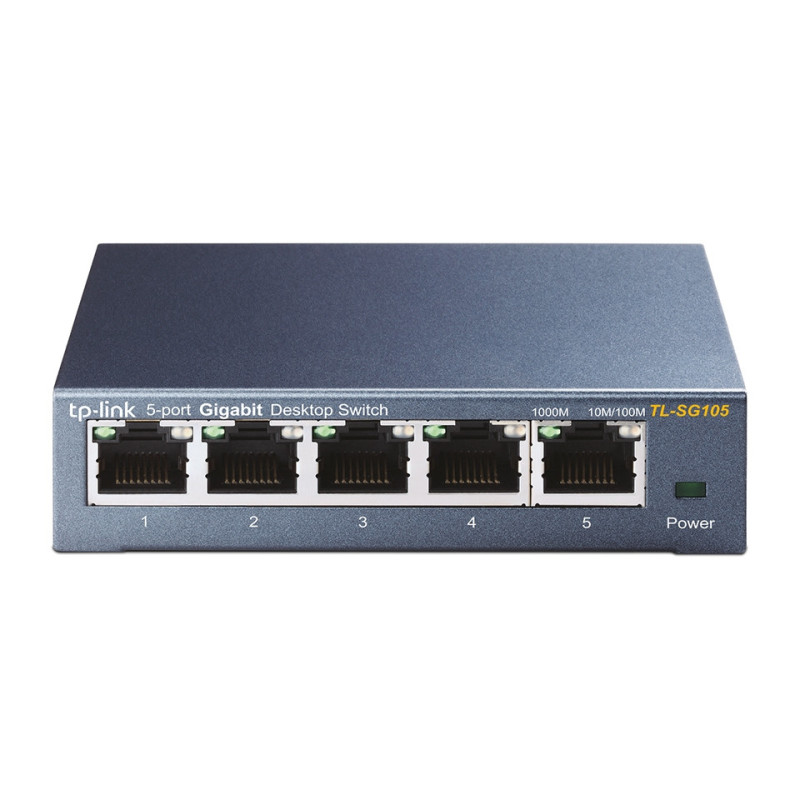

TP-LINK 5-Port 10 / 100 / 1000Mbps Desktop Switch

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX Green Ethernet technology saves the power up to 84% IEEE 802.3x flow control provides reliable data transfer Steel housing, desktop or wall-mounting design Support 802.1p/DSCP QoS* and IGMP Snooping function Plug and play,no configuration needed

* For V2 and later versions

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity: Fanless

Power Consumption: Maximum: 3.2W (220V/50Hz)

External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)

LED Indicator: System Power Link, Speed ​​and activity indicators per port built into each RJ-45 port

Dimensions (W x D x H): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25mm)

PERFORMANCE

Packet Forwarding Rate: 7.4Mpps

MAC Address Table: 2K

Packet Buffer Memory: 1Mb

Jumbo Frame: 15KB

SOFTWARE FEATURES

Advanced Features: Green Technology, saving power up to 84% 802.3X Flow Control 802.1P/DSCP QoS (for V2 and later version) IGMP Snooping

Transfer Method: Store and Forward

OTHERS

Certification: CE, FCC, RoHS

Package Contents: 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide

Environment: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
