TP-LINK 300Mbps Wireless N Ceiling Mount Access Point

Business Class Ceiling Mount Access Point

• Free cloud centralized management and Omada app for ultra convenience and easy management


• Supports passive PoE for convenient installation up to 100 meters


• Ceiling mounting design with chassis makes it easy to deploy on a wall or ceiling


• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies


• Multi-SSID divides multiple wireless networks for different users


• Enterprise class Wi-Fi security helps to reduce network security threats


• Supports management vlan for an enhanced network management

HARDWARE FEATURES

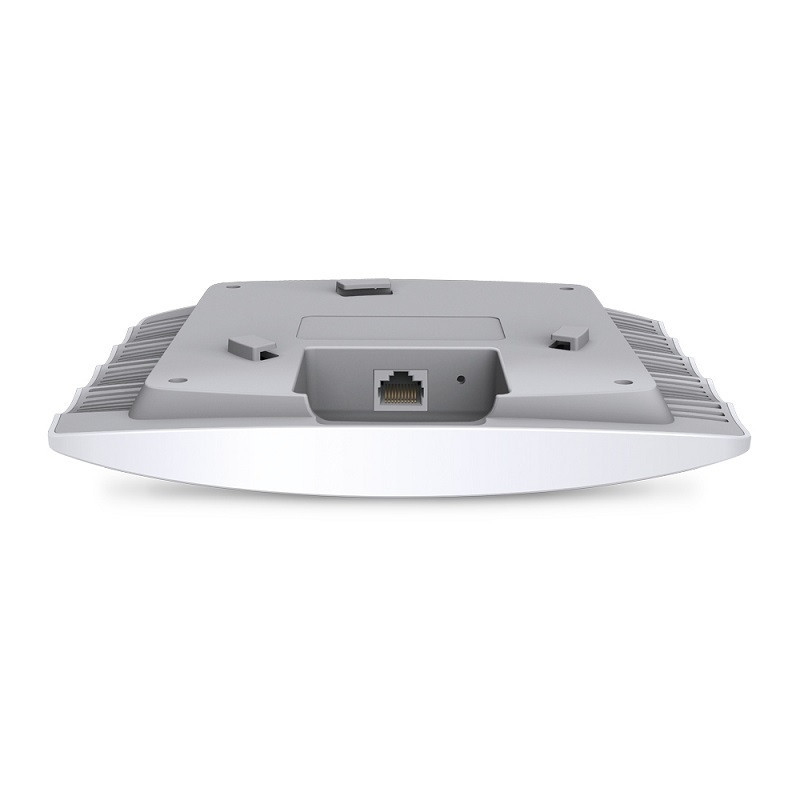

Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE） Button: Reset Power Supply: 24V Passive PoE (+4.5pins; -7.8pins. PoE Adapter Included) Power Consumption: 2.8W Dimensions: 7.5×6.8×1.2 in. (189.4×172.3×29.5mm) Antenna Type: Internal 2* 4dBi Omni Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency: 2.4-2.4835GHz

Signal Rate: 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)

Reception Sensitivity: 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Wireless Functions: Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission Power: CE: ≤19dBm(EIRP) FCC: ≤21dBm

MANAGEMENT

Omada Controller Software: Yes Email Alerts: Yes LED ON/OFF Control: Yes Management MAC Access Control: Yes SNMP: v1,v2c System Logging Local/Remote Syslog: Local/Remote Syslog Telnet: Yes Web-based Management: HTTP/HTTPS Management VLAN: Yes

OTHERS

Certification: CE, FCC, RoHS

Package Contents: 300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter Power Cord Mounting Kits Installation Guide

System Requirements: Microsoft Windows 10/8/7/Vista/XP

Environment:

Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
