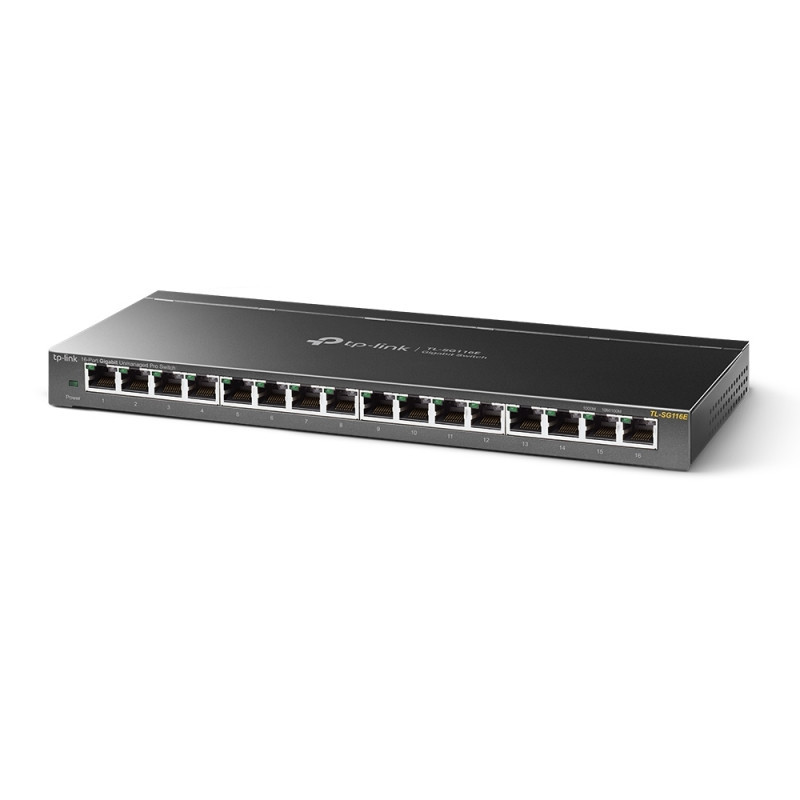

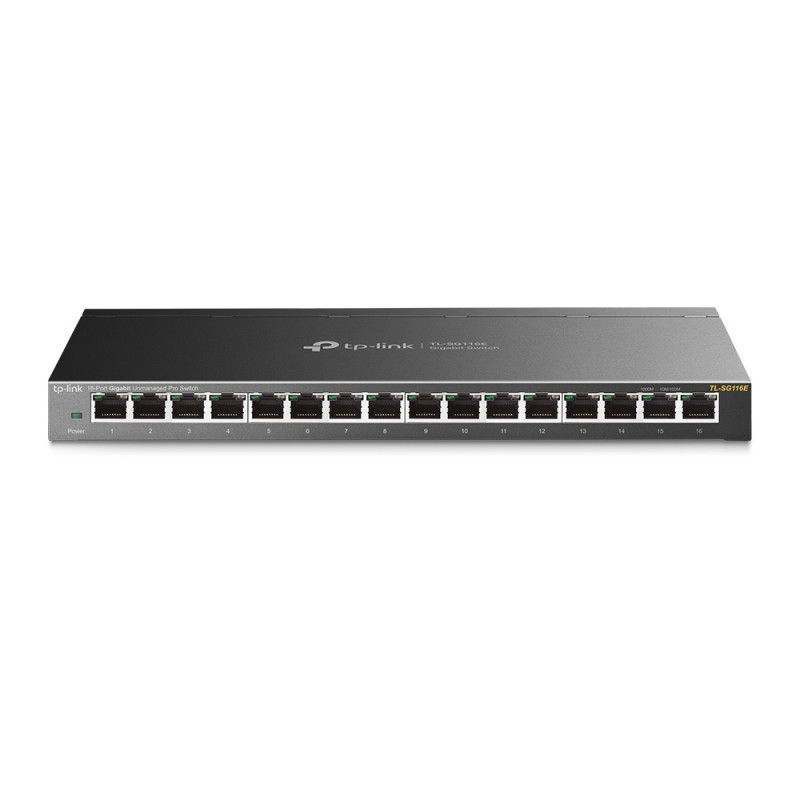

TP-LINK 16-Port Gigabit Unmanaged Pro Switch

• 16 10/100/1000Mbps RJ45 ports


• Plug and play, with no configuration required


• Durable metal casing of superior quality and professional appearance


• Intelligent management via a web user interface and downloadable utility


• Green technology reduces power consumption

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface: 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless Power Supply: External Power Adapter(Output: 12VDC / 1A) Dimensions ( W x D x H ): 286*111.7*25.4 mm (11.3 x 4.4 x 1.0 in.) Max Power Consumption: 9.19W(220V/50Hz) Max Heat Dissipation: 31.36BTU/h

PERFORMANCE

Switching Capacity: 32Gbps Packet Forwarding Rate: 23.81Mpps MAC Address Table: 8K Packet Buffer Memory: 4.1Mb Jumbo Frame: 10KB

SOFTWARE FEATURES

Quality of Service: Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control

L2 Features: IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention

VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN

Transmission Method: Store-And-Forward

OTHERS

Certification: FCC, CE, RoHS

Package Contents: TL-SG116E Power Cord Installation Guide Rubber Feet

System Requirements: Microsoft® Windows® for running Utility

Environment: Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
