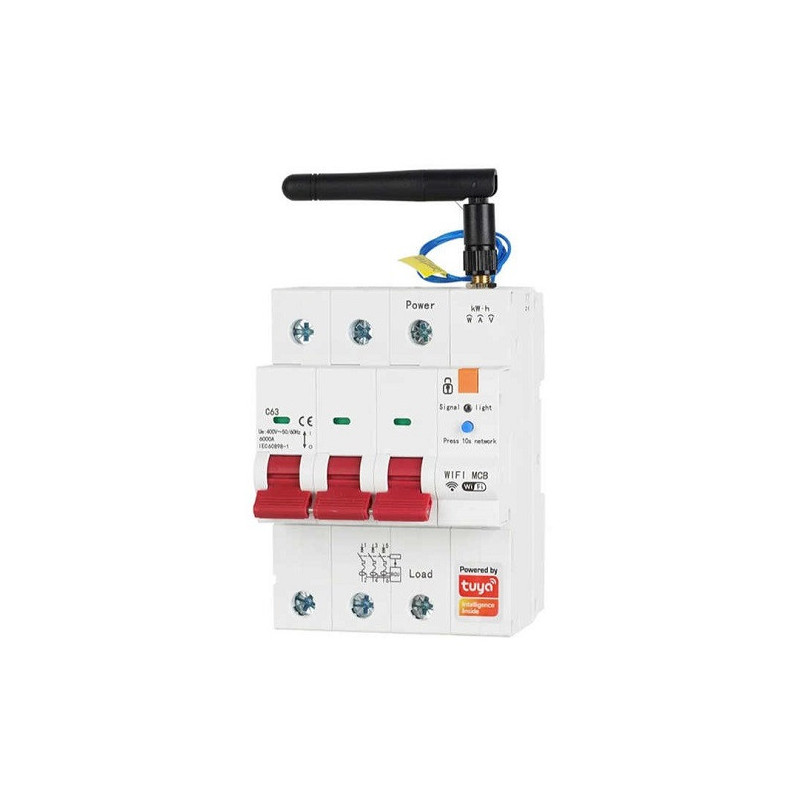

Smart Switch - TUYA 3P 63A Wi-Fi RS485 Energy Meter
Product reference:
14-9990001084066
The TUYA smart circuit breaker is a 3-pole device with a maximum current flow of 63A, allowing remote control via Wi-Fi and RS485 interface. It features energy metering, overload protection and compatibility with TuyaSmart and SmartLife apps, as well as voice control via Google Assistant and Amazon Alexa.
Smart Switch - TUYA 3P 63A Wi-Fi RS485 Energy Meter
Product reference:
14-9990001084066
The TUYA smart circuit breaker is a 3-pole device with a maximum current flow of 63A, allowing remote control via Wi-Fi and RS485 interface. It features energy metering, overload protection and compatibility with TuyaSmart and SmartLife apps, as well as voice control via Google Assistant and Amazon Alexa.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
TUYA Smart Switch, 3P, Wi-Fi, RS485, 63A
The TUYA smart switch is a 3-pole device with a maximum current of 63A, supporting remote control via Wi-Fi and RS485 interface. It has an energy measurement function, overload protection and is compatible with TuyaSmart and SmartLife apps, and also supports voice control via Google Assistant and Amazon Alexa.
- Remote control and real-time monitoring via TuyaSmart or SmartLife app.
- Supports voice control with Google Assistant and Amazon Alexa.
- Integrated energy metering, allowing for energy consumption monitoring and reporting.
- Comprehensive protection functions against overload, short circuit, etc.
Features | |
|---|---|
| Product Type | Smart Switch |
| Model | TUYA Smart Switch |
Specifications | |
| Number of Poles | 3P |
| Nominal Voltage | AC 400 V |
| Maximum Current | 63A |
| Frequency | 50/60Hz |
| Interrupting Capacity | to 6kA |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Standards | 802.11b/g/n |
| RS485 Interface | Yes |
| Management Methods | Manual / Automatic |
| Protection | Overload / High temperature / Short circuit / Overvoltage / Leakage |
| Operating Temperature | -25°C to +70°C (max.) |
| Mechanical Lifetime | gt; 10000 times |
| Electrical Lifespan | gt; 6000 times |
| Housing | PC V0 (fire retardant) |
| Installation | DIN rail, 35mm |
| Certificates of Conformity | CE, RoHS, IEC60898-1 |
| Dimensions | 71x74x100mm |
| Weight | 415g |
| Color | White |
| Included Accessories | 2x Wi-Fi antenna and RS485 adapter |
| Height | 120mm |
| Length | 200mm |
| Weight | 550g |
| Width | 100mm |
