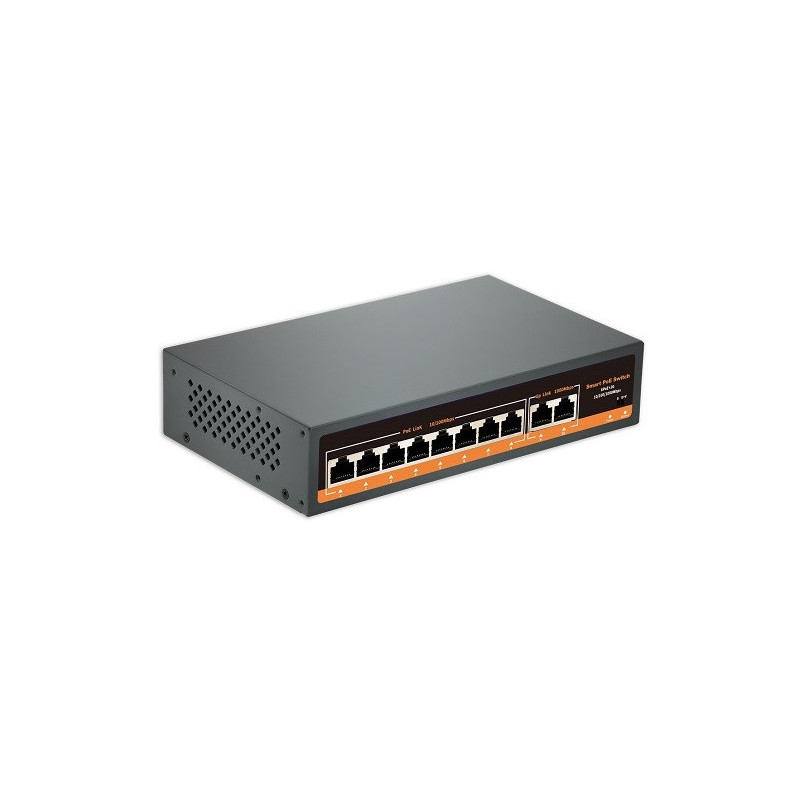

PoE hub 8x100Mbps PoE + 2x Gigabit UPLINK, 120W

8-port 100M PoE hub with 2 uplink ports 1000M, up to 250m.
Features:
The PoE hub has 8 PoE ports of 10/100Mbps and 2 RJ45 uplink ports of 10/100/1000Mbps; ports 1-8 support IEEE802.3af/at standard.
The standard power of PoE hubs is 15.4W/port, maximum power: 30W/port, total power 120W.
With DIP switch (Standard / Extend+VLAN).
Virtual LAN mode (VLAN) supports isolation of each PoE port.
Extend mode: supports transmission distance up to 250 meters.
Watchdog mode supports PoE network self-healing function, automatically resolving device performance issues.
Integrated surge protection for network ports up to 6 kV.
Integrated power supply (52V/2.3A), power cable included.
Technical data:
Ports: 8x 10/100Mbps PoE ports; 2x 10/100/1000Mbps uplink RJ45 ports.
Network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at.
Input voltage: 110-240V AC.
Power: Default: 1/2(+), 3/6(-).
PoE standards: IEEE802.3af/at.
MAC address table: 2K.
Transmission rate: 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps.
Cable used: UTP Cat5e or newer (10BASE-tx: Cat5 UTP =250 meters).
Maximum power: 30W/port; IEEE802.3af/at.
Average power: 15.4W/port.
Internal (Switching) capacity: 12Gbps.
PoE power supply distance: up to 250m.
Total power: 120W (52V, 2.3A).
LED indicators: power; network, Extend mode.
Built-in power supply: AC110-240V, 120W.
Operating temperature: -10°C ~ +55°C.
Operating humidity: 10-90% RH.
Dimensions: 200x118x44 mm.
Weight: 1kg.
Installation: rack-mounted.
Warranty: 24 months.
