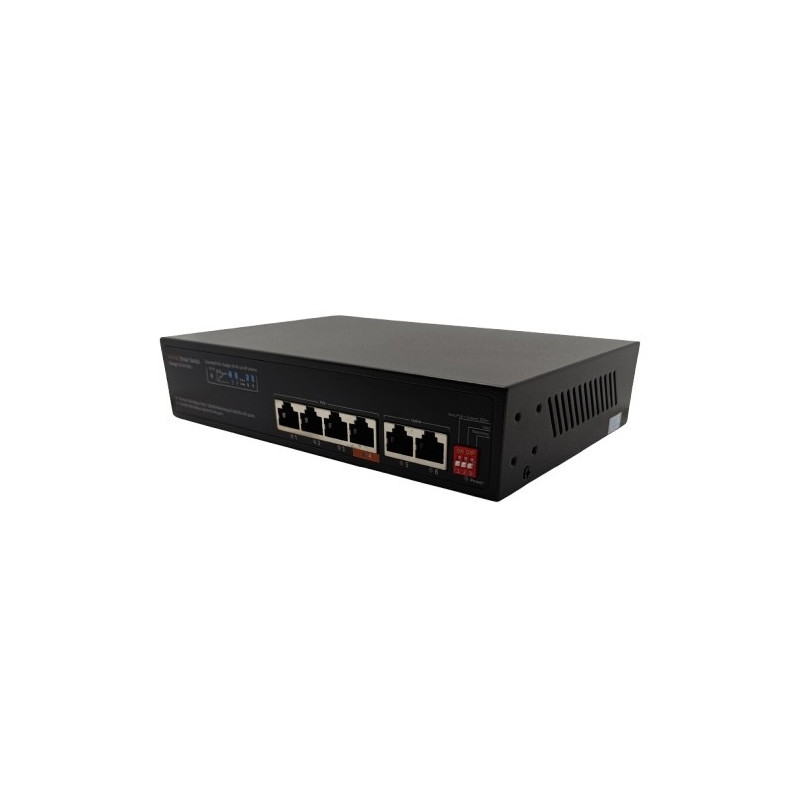

PoE hub 4x Gigabit PoE+2x Gigabit UPLINK, 65W

4-port 1000M PoE hub with 2 uplink ports 1000M.
Features:
The PoE hub has 4 PoE ports of 10/100/1000Mbps and 2 RJ45 uplink ports of 10/100/1000Mbps; ports 1-4 support IEEE802.3af/at standard, the fourth port supports IEEE 802.3af/at/bt (up to 60W).
The standard power of PoE hubs is 15.4W/port, maximum power: 30W/port, total power 65W.
With DIP switch.
AI Extend mode: transmission up to 300 meters, the speed of one port is automatically reduced (to 10 Mbps); other ports maintain 1000 Mbps speed up to 100 meters.
VLAN mode supports isolation and VLAN for each PoE port 1-4.
PoE Watchdog/Auto Recovery mode for 1-4 PoE ports supports AI-PoE network self-healing function, automatically resolving camera performance issues and reducing the need for maintenance.
The power supply is integrated, and a power cable is included.
Technical data:
Ports: 4x 10/100/1000Mbps Base-TX PoE ports (data/power) 2x 10/100/1000Base-T/TX uplink RJ45 ports (data only).
Network protocols:
IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T.
IEEE802.3u 100Base-TX.
IEEE802.3ab 1000Base-T.
IEEE802.3x.
Input voltage: 100-240V AC, 50-60Hz.
Power: Default: 1/2(+), 3/6(-).
PoE standards: IEEE802.3af/at.
MAC address table: 2K.
Buffer memory: 768K.
Twisted pair transmission:
10BASE-T: Cat5 UTP (=300 meters).
100BASE-TX: Cat5 or newer UTP (=100 meters).
Maximum power: 30W/port when using only one port; IEEE802.3af/at.
Average power: 15.4W/port.
Total power: 65W.
Power consumption: standby mode: <2W.
LED indicators: power; network.
Built-in power supply: AC100-240V, 50-60Hz, 65W.
Operating temperature: -20°C ~ +55°C.
Operating humidity: 5-90% RH (non-condensing).
Dimensions: 195x130x40 mm.
Weight: 720g.
Installation: desktop/wall mounted.
Safety class: IP30.
Mechanical properties: IEC61000-4-2 (ESD) (protection against electrostatic discharge), IEC61000-4-5 (against surge voltage).
Certifications: CCC; CE/LVD EN60950; FCC Part 15 Class B; RoHS.
Warranty: 24 months.
