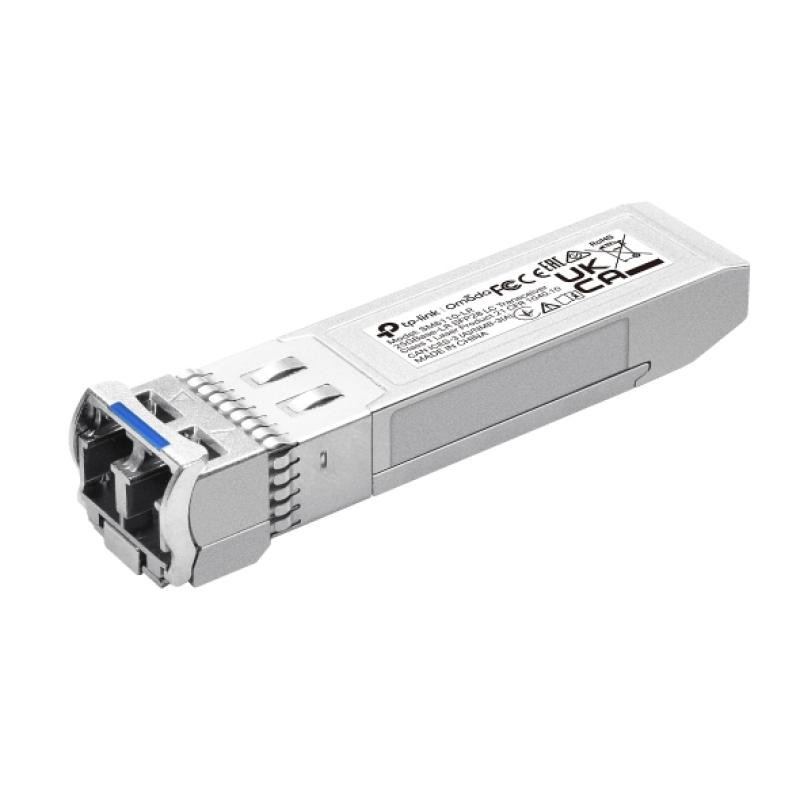

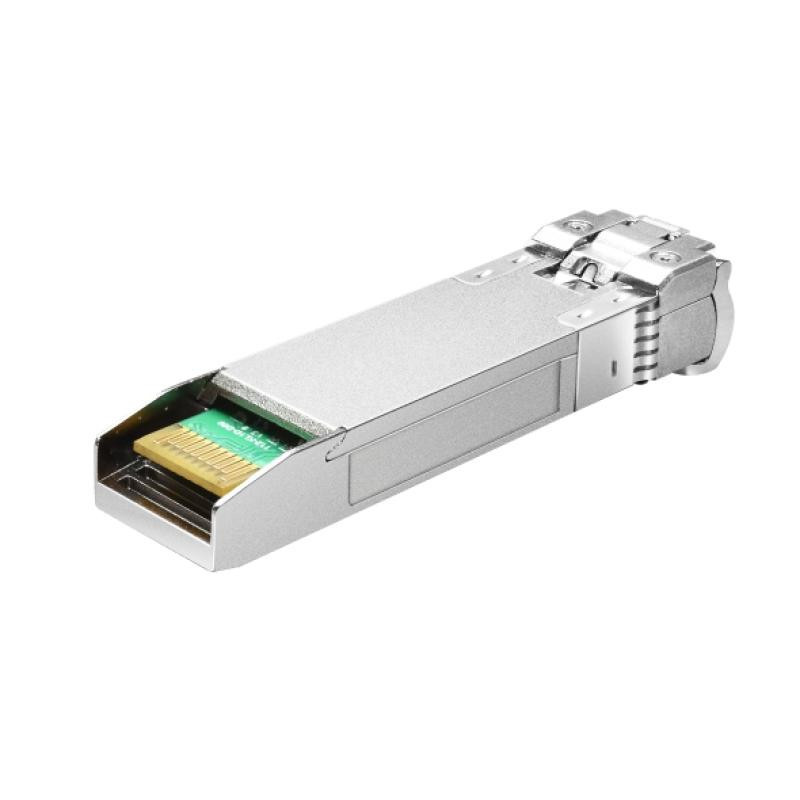

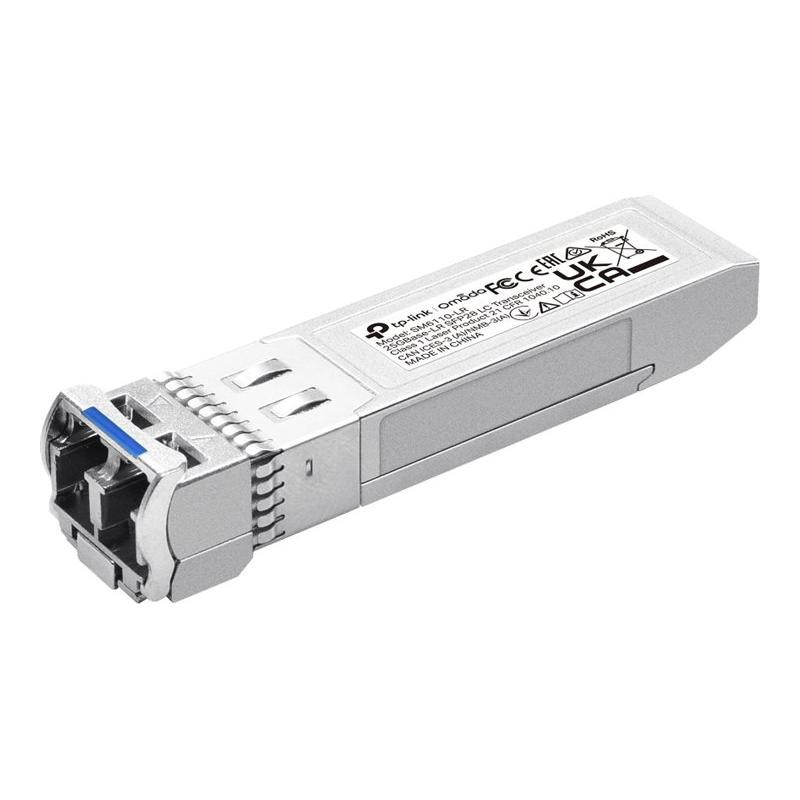

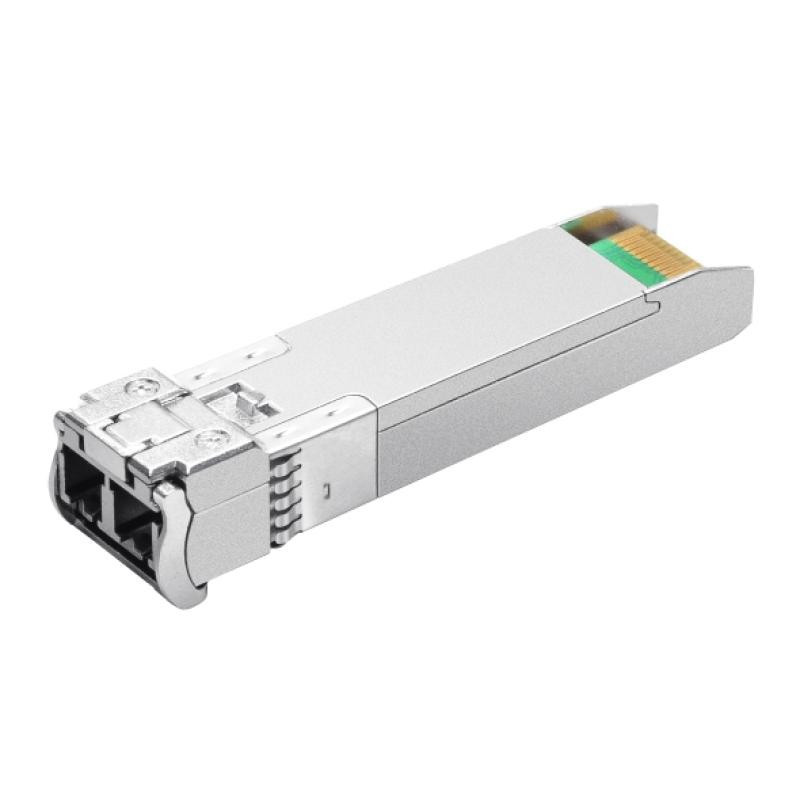

Optical transceiver - TP-Link Omada SM6110-LR 10G / 25G SFP+ / SFP28, 1310 nm 10 km
Product reference:
14-8885020622355
TP-Link Omada SM6110-LR - 10G/25G SFP+/SFP28 transceiver for single-mode fiber networks. It uses a 1310 nm signal and supports duplex connections up to 10 km over 9/125 µm fiber.
Optical transceiver - TP-Link Omada SM6110-LR 10G / 25G SFP+ / SFP28, 1310 nm 10 km
Product reference:
14-8885020622355
TP-Link Omada SM6110-LR - 10G/25G SFP+/SFP28 transceiver for single-mode fiber networks. It uses a 1310 nm signal and supports duplex connections up to 10 km over 9/125 µm fiber.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
TP-Link Omada SM6110-LR 10G/25G SFP+/SFP28 transceiver
TP-Link Omada SM6110-LR - 10G/25G SFP+/SFP28 transceiver for single-mode fiber networks. It uses a 1310 nm signal and supports duplex connections up to 10 km over 9/125 µm fiber.
- 10G/25GBASE-LR SFP+/SFP28 transceiver for fast Ethernet connection
- Extends duplex network connections up to 10 km over 9/125 µm single-mode fiber
- Uses a 1310 nm distributed feedback laser (DFB) and clock and data recovery (CDR) function for reliable operation
- Digital Diagnostic Monitoring (DDM) and 0-70°C operating temperature range ensure reliable network operation
Product information | |
|---|---|
| Product type | Optical transceiver |
| Brand | TP-Link Omada |
| Model | SM6110-LR |
| Construction | SFP+/SFP28 |
Technical specifications | |
| Supported standards | 10GBASE-LR and 25GBASE-LR Ethernet |
| Maximum data transfer rate | Up to 25.78 Gbps |
| Fiber optic type | 9/125 µm single-mode fiber |
| Transmitter | 1310 nm Distributed Feedback Laser (DFB) |
| Signal processing | Clock and Data Recovery (CDR) |
| Monitoring | Digital Diagnostic Monitoring (DDM) |
| Operating temperature | 0-70°C |
| Operating humidity | 10-90% relative humidity, non-condensing |
Safety information | |
| Safety warning | Use only with compatible SFP+/SFP28 networking equipment and suitable single-mode fiber. Do not look directly into the optical port or fiber once connected, as invisible laser radiation may be emitted. Install and use the transceiver only within the specified environmental conditions. |
| Height | 50mm |
| Length | 200mm |
| Weight | 150 g |
| Width | 100mm |
