NET CARD PCIE 1GBE 1PORT / SP&LP PCEE-GRF AXAGON
Product reference: 2-8595247906120

NET CARD PCIE 1GBE 1PORT / SP&LP PCEE-GRF AXAGON

Product reference: 2-8595247906120
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
10,18 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

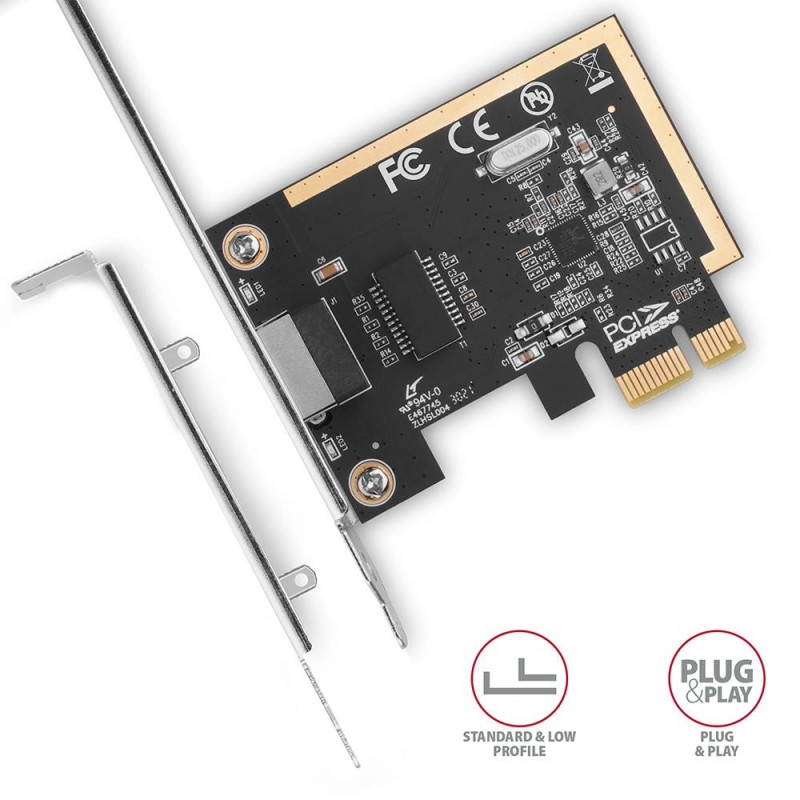

AXAGON PCEE-GRF PCI-Express network card adds high speed Gigabit Ethernet connection to your desktop computer. It enables a transmission speed of 10/100/1000 Mbit/s.

The network card is equipped with proven Realtek 8111 chipset. It ensures seamless compatibility with most operating systems.

Gigabit network card connects the computer to the Internet or a computer network, adds the missing RJ-45 connector, add another network card or replaces the original defunct network connection.

In addition to an adapter with a standard size bracket, the package also includes a low profile bracket which allows the mounting into low profile cases.

Input:
• PCI-Express 1.1 interface, PCI-Express 1.0a / 2.0 / 2.1 / 3.0 compatible.
• Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
• A bandwidth of 1-Lane PCI-Express 1.1 bus 2.5 Gb/s.

Output:

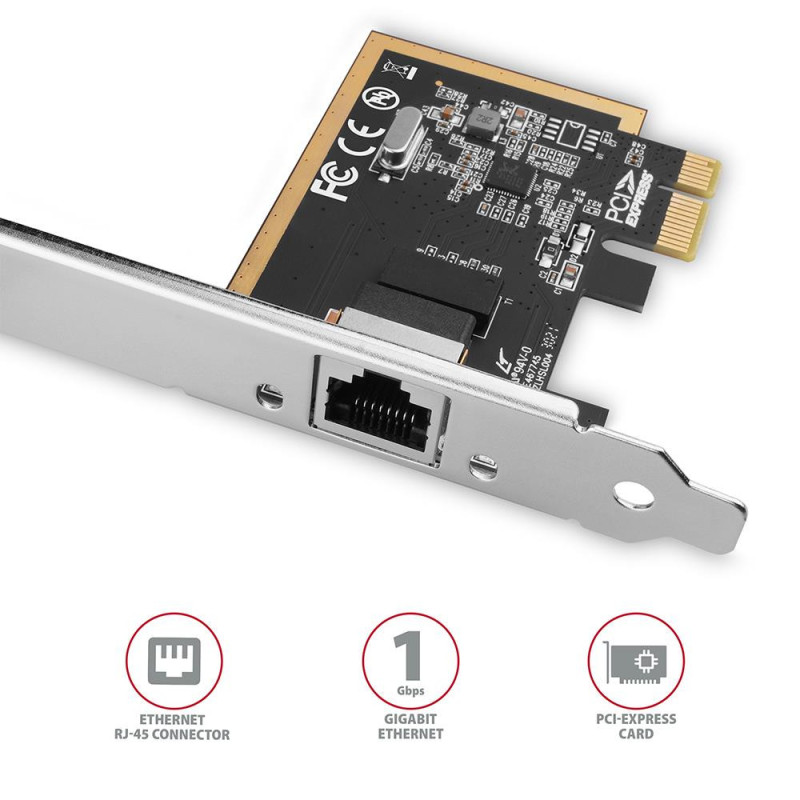

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.

Other features:
• Full Plug and Play support.
• 10/100/1000 Mbit/s auto-detection.
• Supports Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce processor load.
• Supports Segmentation Task-offload (Large send v1 a Large send v2).
• Supports full-duplex transmission s IEEE 802.3x flow control.
• Supports IEEE 802.1P Layer 2 priority encoding.
• Supports IEEE 802.1Q VLAN tagging.
• Supports IEEE 802.3az-2010 (EEE) Energy Efficient Ethernet - reduce power consumption at standby.
• Supports Auto MDI/MDIX - crossover detection and auto-correction eliminate the need for crossover cables.
• Supports hardware ECC (Error Correction Code), CRC (Cyclic Redundancy Check) function.
• Supports Pair Swap/Polarity/Skew Correction.
• Two LEDs for indicating network activity and connection.
• The Realtek RTL8111E/F chipset is used.

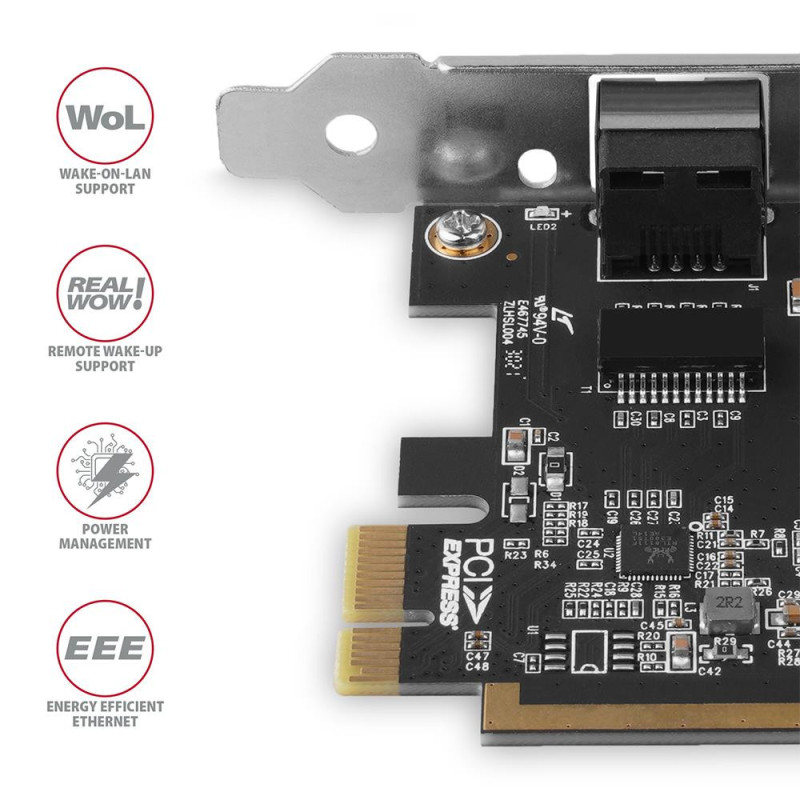

Wake-on-LAN support in various modes:
• Supports sleep mode and remote wake up via AMD Magic packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and also Link Change wake-up.
• Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers.

Advanced Power Management features:
The network card supports advanced power management to reduce losses during standby. It also supports advanced power saving when the Ethernet cable has been disconnected.
• Supports Advanced Configuration Power management Interface (ACPI).
• Supports Power Management offload (ARP & NS).
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X.

Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), MS DOS, MacOS X 10.4.x and higher, Linux kernel 2.4.x / 2.6.x / 3.x / 4.x, FreeBSD 7.x / 8.0 / 9.0, SCO Unix 5.0.6 / 5.0.7, SCO OpenServer 6, UnixWare 7.1.x, Novell server OS 5.x / 6.x, Novell client for DOS (ODI driver).

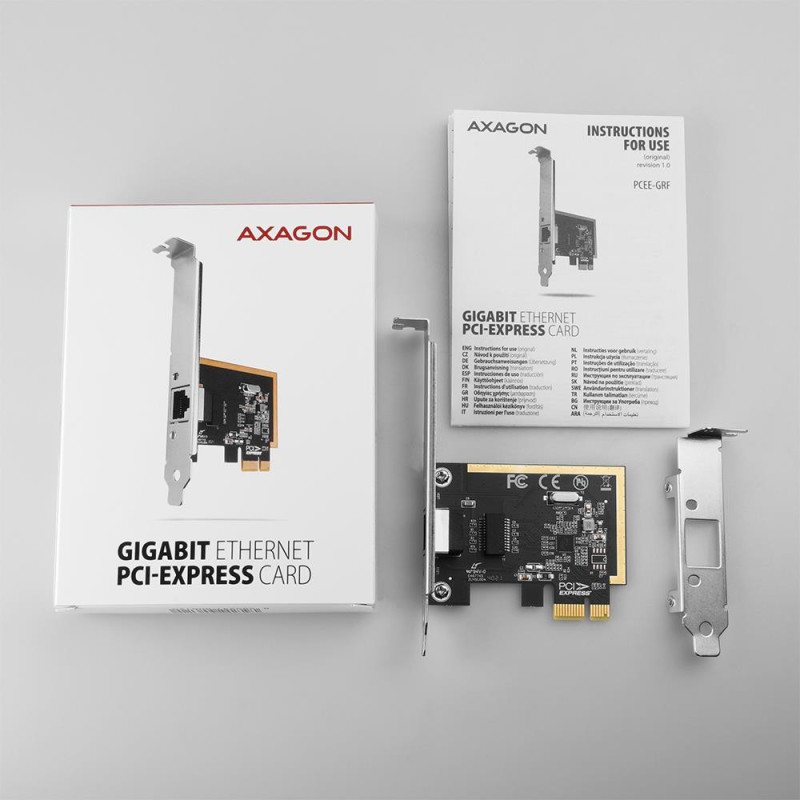

Package contains:
• PCI-Express Gigabit Ethernet card with a standard bracket,
• low profile bracket,
• multilanguage quick guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,

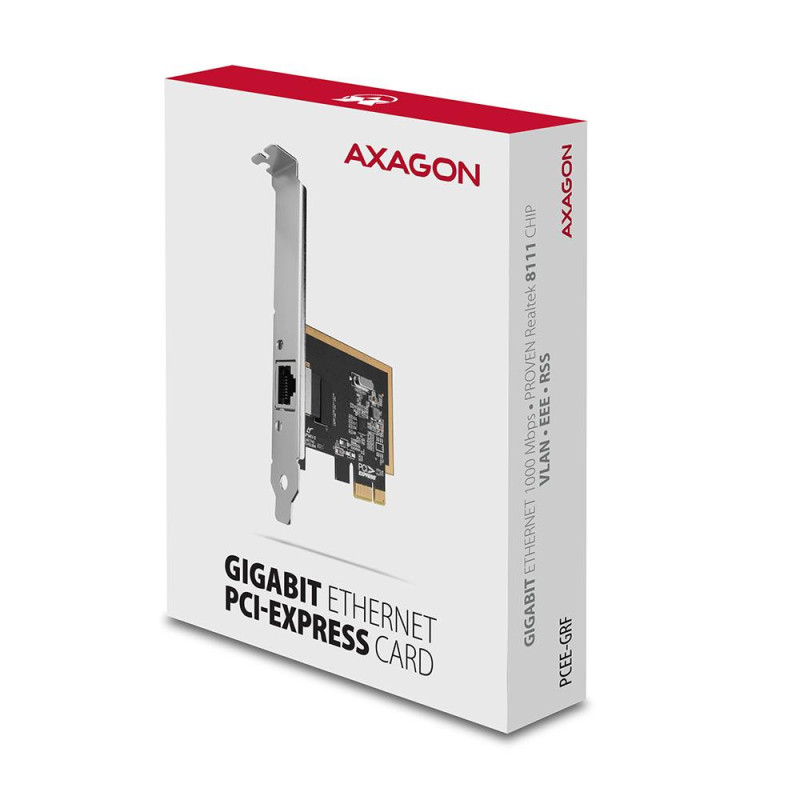

• packed in a cardboard box.


Atitikties sertifikatai CE/RoHS
Bruto svoris 0.078 kg
Didžiausias duomenų perdavimo greitis 1000 Mbit/ai
Eterneto LAN duomenų perdavimo norma 10/100/1000 Mbit/ai
Eterneto sąsajos tipas Gigabitinis eternetas
Ethernet LAN (RJ-45) portų kiekis 1
Ethernet LAN jungtis Taip
Instrukcija Taip
Kabelių technologija 10/100/1000BaseT(X)
Kilmės šalis Kinija
Kitos palaikomos operacinės sistemos Taip
LAN kontroleris Realtek RTL8111E/Realtek RTL8111F
LED indikatoriai Taip
Lustų rinkinys Realtek RTL8111
Model PCEE-GRF
Model name PCEE-GRF PCIe - Gigabit Ethernet adapter Realtek 8111F w. SP & LP
Neto svoris 0.05 kg
Paketo svoris 73 g
Pakuotės aukštis 25 mm
Pakuotės gylis 110 mm
Pakuotės plotis 145 mm
Palaikoma operacinė sistema "Linux" Taip
Palaikomos MAC operacinės sistemos Taip
Palaikomos serverio valdymo sistemos Taip
Palaikomos "Windows" operacinės sistemos Taip
PCI kortos formos koeficientas Visas aukštis (žemo profilio)
PCI versija 1.1
Pilnai abipusis (duplex) Taip
Pridėti montavimo kronšteinai Taip
Priimančioji sąsaja PCI Express
Ryšio technologija Vielinis
Sertifikavimas CE, RoHS
Shipping Box Depth 58 cm
Shipping Box Height 31.5 cm
Shipping Box Weight 7.8 kg
Shipping Box Width 28.5 cm
Summary Axagon PCEE-GRF PCIe - Gigabit Ethernet adapter Realtek 8111F w. SP & LP. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
Sąsaja Eternetas
Taikoma PC
Tinklo standartai IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u
Unit Box Height 0.145
Unit Box Length 0.025
Unit Box Width 0.11
Unit Brutto Volume 0.0005207 cubm
Vendor Homepage https://www.axagon.eu/en/produkty/pcee-grf
Vidinis Taip
Vieneto aukštis 14.5 cm
Vieneto gylis 2.5 cm
Vieneto plotis 11 cm
Vienetų skaičius vienoje siuntimo dėžėje 100
VLAN palaikymas Taip
Wake-on-LAN pasirengimas Taip
"Plug and Play" funkcija Taip
