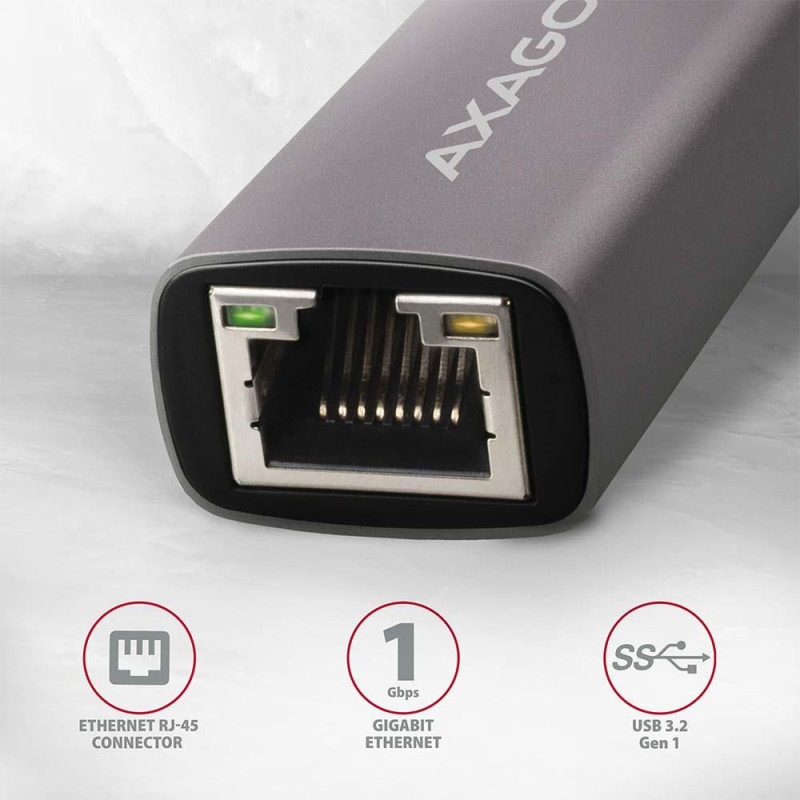

The external network card AXAGON ADE-TR easily converts USB 3.2 Gen 1 (USB 3.0) port to Gigabit Ethernet port.
It is compatible with 10/100/1000 Mbit/s transfer speeds. The Gigabit network adapter expands the computer with a fast and stable network connection, adds the missing RJ-45 network connector, adds another network card, or replaces the original non-functional network connection.

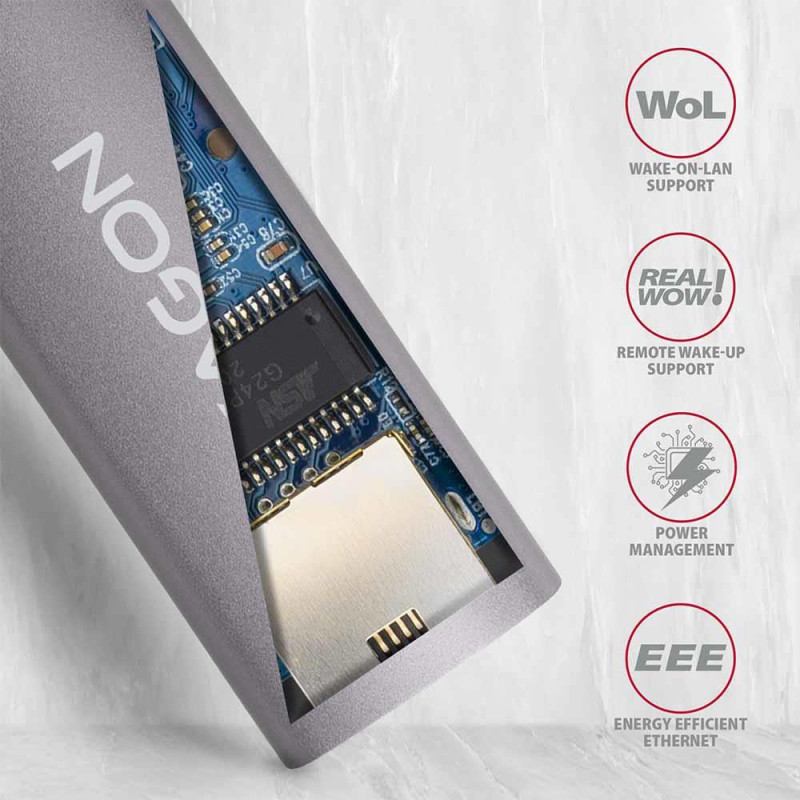

The network card with Gigabit bandwidth offers a wide range of features, such as IPv4/IPv6 checksum to reduce CPU load by checksums, the crossover detection and auto-correction, TCP large send offload, support for various modes of the Wake-on-LAN feature, the work with virtual LAN (VLAN) and advanced Power Management features.

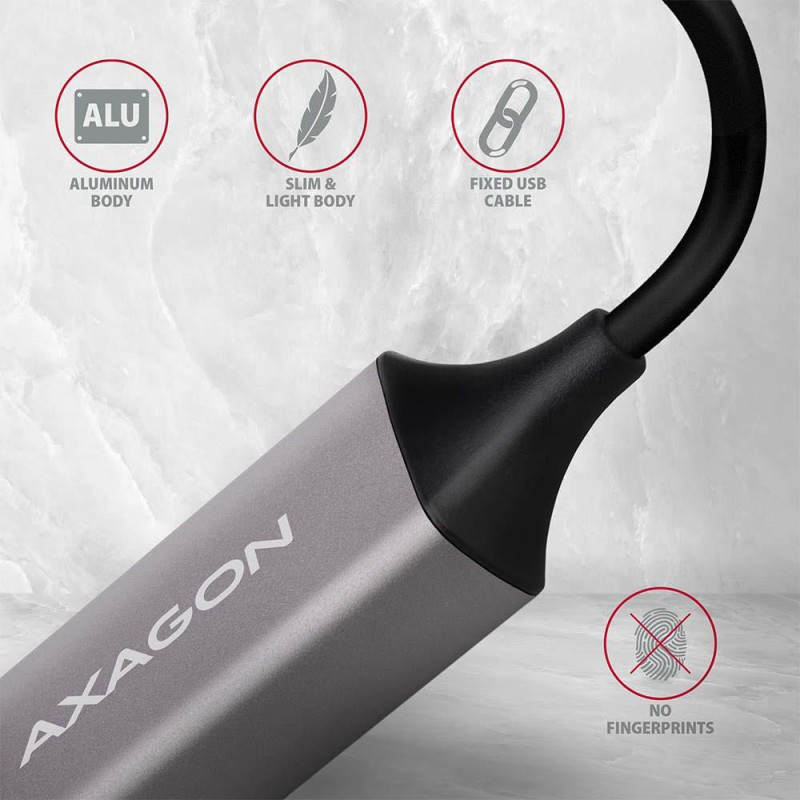

The metal adapter cover is made of aluminum and provides perfect mechanical protection and excellent heat dissipation. Thanks to its compact dimensions and minimal weight, it is an ideal accessory for laptops. The support for current versions of Windows, Mac OS X, and Linux operating systems allows it to be used for any desktop, laptop or ultrabook.
In modern operating systems from Windows 8.1 above, the adapter allows easy automatic installation without the need for an Internet connection. Also some phones and tablets with the Android operating system, such as the Sam-sung S9 +, can be connected to the Internet with a network Ethernet cable with suitable adapter* thanks to this adapter.
| Cables included | USB |
| Certification | CE, RoHS |
| Chipset | Realtek RTL8153 |
| Compliance certificates | CE/RoHS |
| Component for | PC/Laptop |
| Connectivity technology | Wired |
| Country of origin | China |
| Depth | 16 mm |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Full duplex | Yes |
| Height | 59 mm |
| Host interface | USB |
| Interface | Ethernet |
| Internal | No |
| Jumbo frames support | Yes |
| LAN controller | Realtek RTL8153 |
| LED indicators | Yes |
| Linux operating systems supported | Kernel 2.6.31/Kernel 2.6.33 |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard/Mac OS X 10.7 Lion/Mac OS X 10.8 Mountain Lion/Mac OS X 10.9 Mavericks/Mac OS X 11.0 Big Sur/Mac OS X 12.0 Monterey/Mac OS X 13.0 Ventura |
| Manual | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Model | ADE-TR |
| Model name | ADE-TR SuperSpeed USB gigabit ethernet adapter |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u |
| Other operating systems supported | Android |
| Package depth | 28 mm |
| Package height | 203 mm |
| Package weight | 66 g |
| Package width | 100 mm |
| Plug and Play | Yes |
| Product colour | Grey |
| Product Net Weight | 0.026 kg |
| Server operating systems supported | Windows Server 2003/Windows Server 2003 x64/Windows Server 2008/Windows Server 2008 x64/Windows Server 2012/Windows Server 2012 x64/Windows Server 2016/Windows Server 2016 x64 |
| Shipping Box Depth | 3 cm |
| Shipping Box Height | 20 cm |
| Shipping Box Weight | 0.08 kg |
| Shipping Box Width | 10 cm |
| Summary | Axagon ADE-TR SuperSpeed USB gigabit ethernet adapter. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. USB powered. Product colour: Grey |
| Unit Box Height | 0.2 |
| Unit Box Length | 0.03 |
| Unit Box Width | 0.1 |
| Unit Calculated Volume | 0.0006 cubm |
| Unit Calculated Weight | 0.08 kg |
| Units per Shipping Box | 1 |
| USB powered | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Vendor Homepage | https://www.axagon.eu/en/produkty/ade-tr |
| VLAN support | Yes |
| Wake-on-LAN ready | Yes |
| Warranty period | 2 year(s) |
| Weight | 28 g |
| Width | 24 mm |
| Windows operating systems supported | Windows 10/Windows 10 x64/Windows 7/Windows 7 x64/Windows 8/Windows 8 x64/Windows 8.1/Windows 8.1 x64/Windows Vista/Windows Vista x64/Windows XP |
