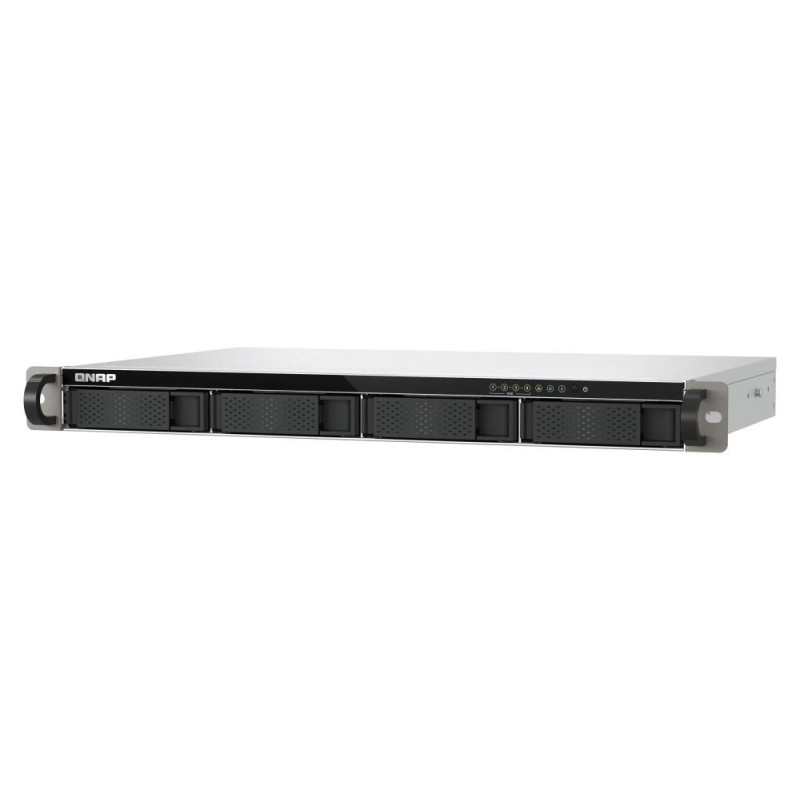

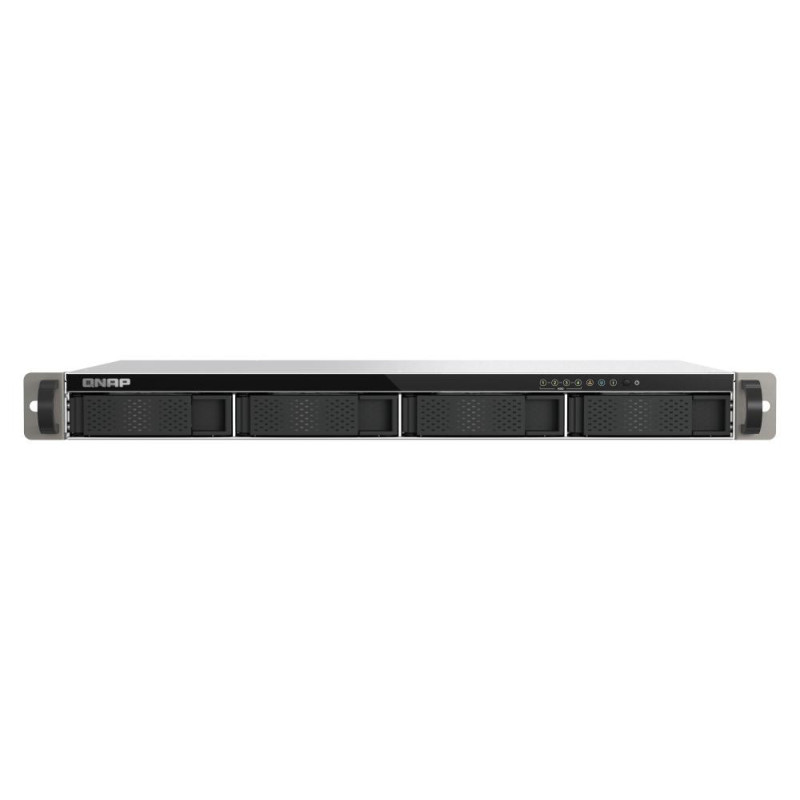

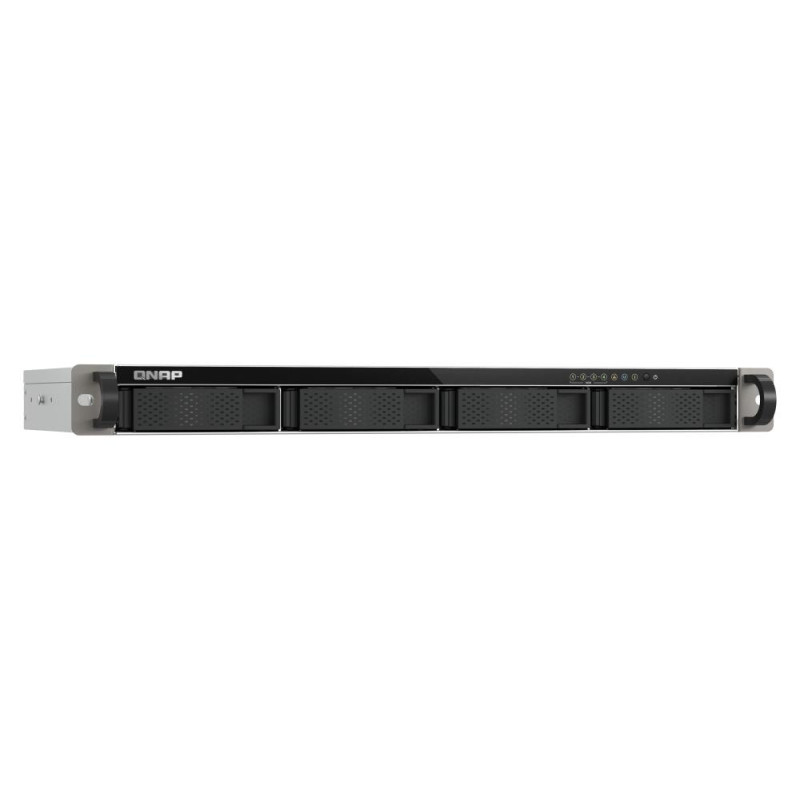

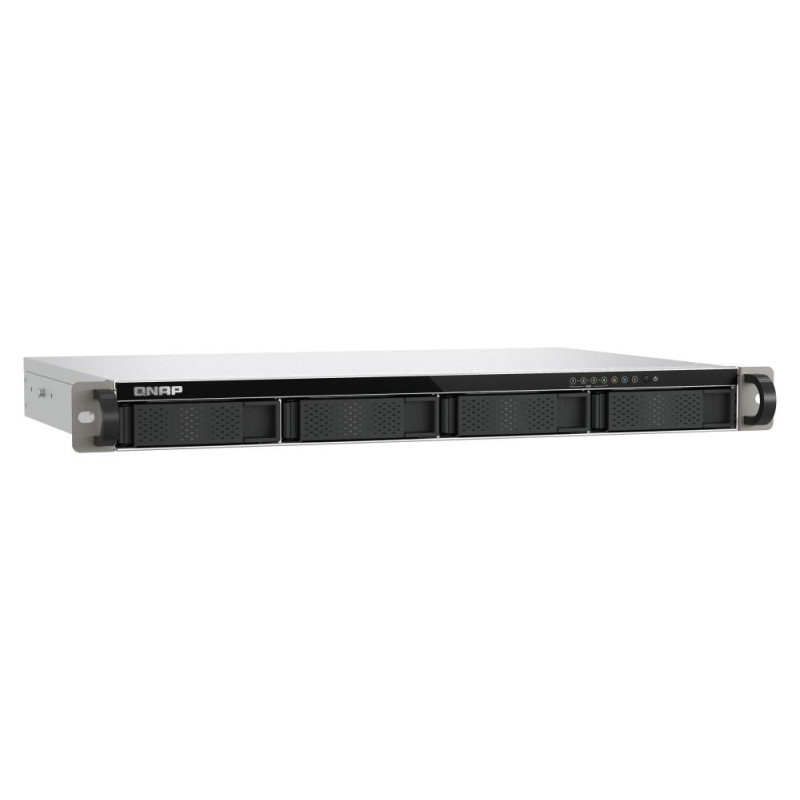

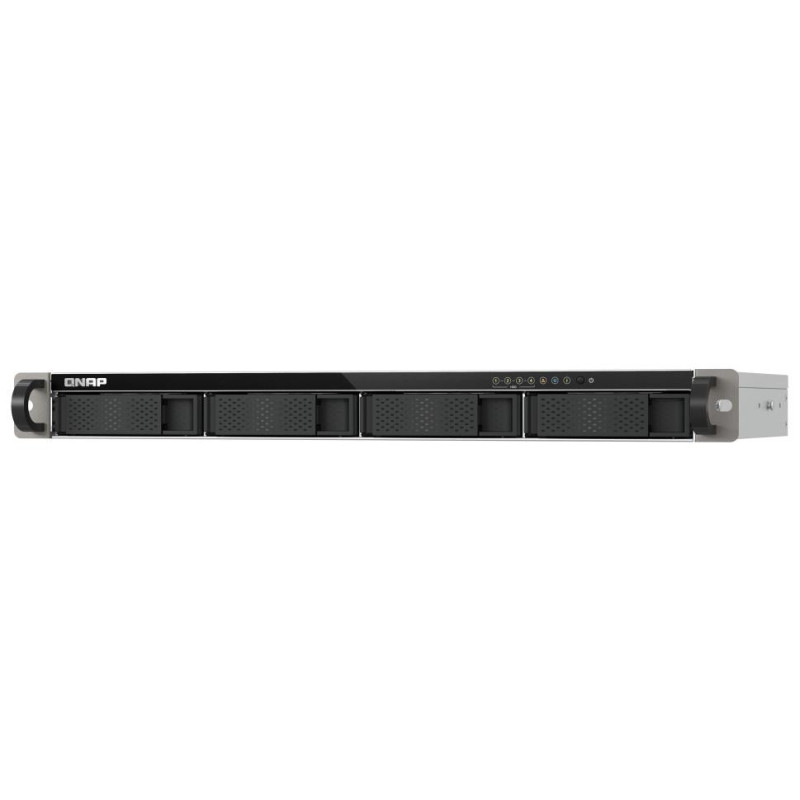

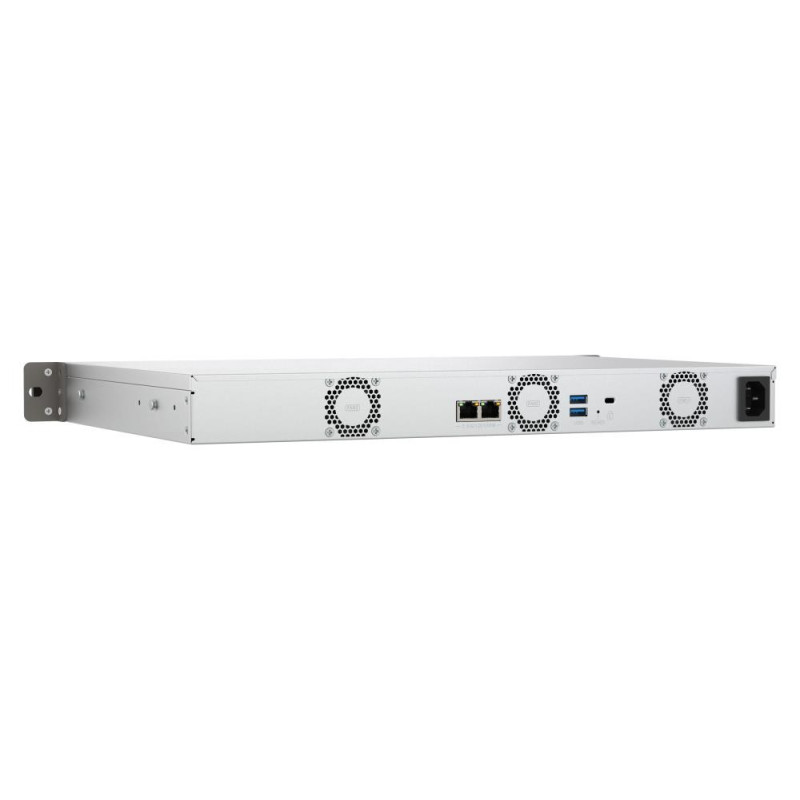

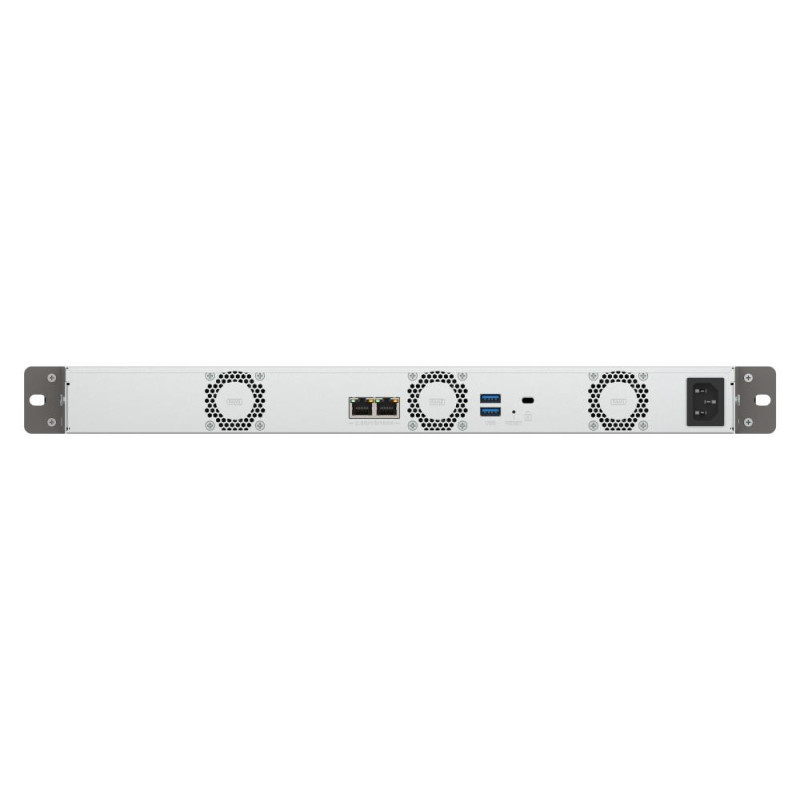

The closer your data storage is, the faster you can access your data or applications! The TS-433eU with its sleek 1U short-depth rackmount design fits perfectly in tight spaces, making it ideal for flexible deployment. Deploy the TS-433eU closer to your operations to effortlessly create edge storage, and enjoy intelligent file management, secure backups, and seamless Docker container applications.
Space-saving
Flexible deployment for installation in small media cabinets or wall-mounted network racks.
Powerful yet energy-efficient
The ARM Cortex-A55 quad-core processor with 4GB RAM uses up to 80% less power than similar x86-based NAS.
AI image recognition with NPU acceleration
The built-in NPU enhances AI-powered face recognition and accelerates subject identification in QNAP's QuMagie smart album.
Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Easy storage expansion via USB
Connect a QNAP short-depth USB JBOD TR-004U to the TS-433eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
Backup and snapshot protection for peace of mind
Centralize all data backups to TS-433eU and regularly create snapshots to safeguard your data against ransomware threats.
| Summary | QNAP TS-433eU. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Cortex-A, Processor model: Cortex-A55, Processor frequency: 2 GHz. Internal memory: 4 GB. Total installed storage capacity: 0 TB. Operating system installed: QNAP Turbo System |
| Vendor Homepage | https://www.qnap.com/en/product/ts-433eu |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.58 |
| Unit Box Width | 0.47 |

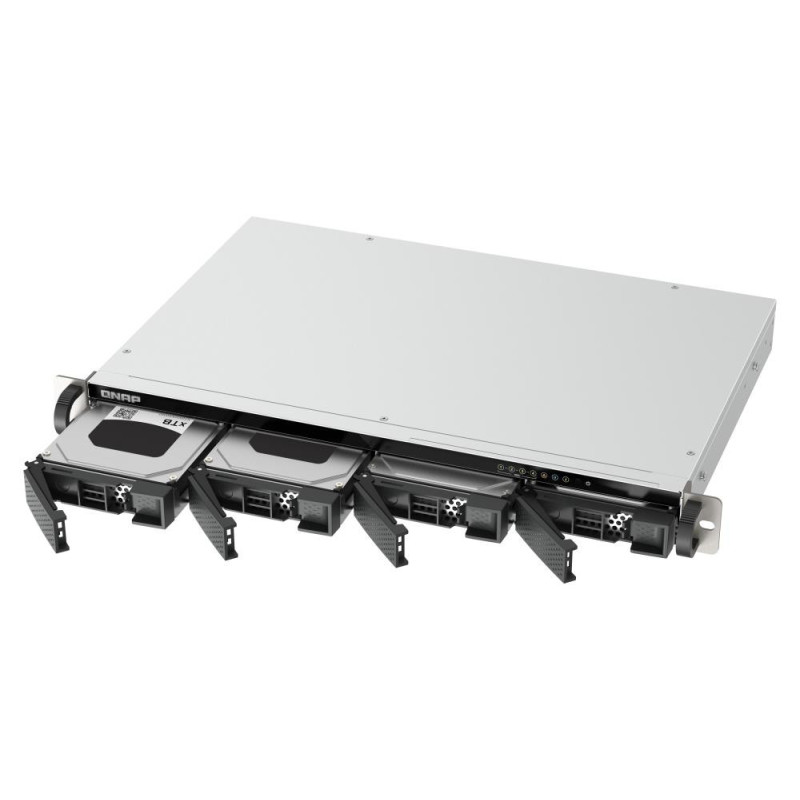

| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Number of storage drives supported | 4 |
| RAID support | No |
| Storage drive interface | Serial ATA |
| Storage drive size | 2.5/3.5 " |
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Processor architecture | ARM Cortex-A55 |
| Processor cores | 4 |
| Processor family | Cortex-A |
| Processor frequency | 2 GHz |
| Processor manufacturer | ARM |
| Processor model | Cortex-A55 |
| Internal memory | 4 GB |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000/2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Fan diameter | 40 mm |
| LED indicators | HDD/LAN/Status/USB |
| Number of fans | 3 fan(s) |
| Product colour | Black |
| Browser supported | Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome |
| Built-in FTP server | Yes |
| Buzzer | Yes |
| Device class | Small & Medium Business |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Share folder | CIFS/SMB |
| Type | NAS |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operating system installed | QNAP Turbo System |
| Operating system version | 4.1 |
| Windows operating systems supported | Yes |
| AC input voltage | 100-240 V |
| Fan voltage | 12 V |
| Number of power supply units | 1 |
| Power consumption (sleep) | 9.32 W |
| Power consumption (typical) | 23.74 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 60 W |
| Depth | 292.3 mm |
| Height | 43.3 mm |
| Package depth | 179 mm |
| Package height | 542 mm |
| Package weight | 5900 g |
| Package width | 415 mm |
| Weight | 4010 g |
| Width | 430 mm |
| Package type | Box |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Warranty period | 3 year(s) |
| Model | TS-433EU |
| Model name | TS-433eU |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.04907 cubm |
| Unit Calculated Weight | 5.9 kg |
