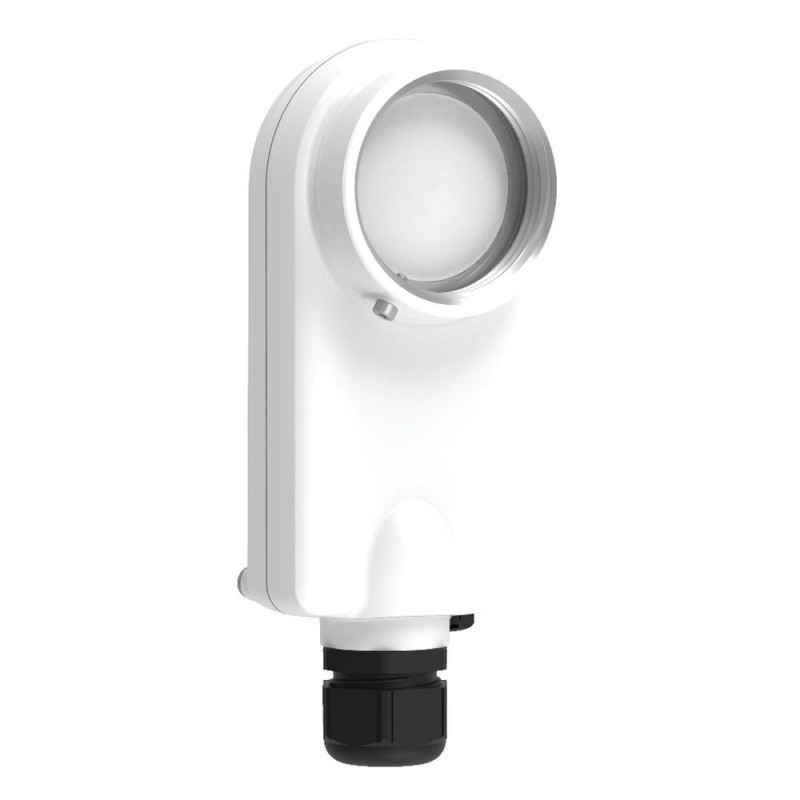

MIMOSA Integrated 4.9-6.4 GHz Radio C5x

The Mimosa C5x is the industry's most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9-6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x ​​is the go-to solution for 5 GHz deployments. The C5x ​​can be used in PTP or PTMP mode with speeds of up to 700 Mbps.

Integrated Radio with Modular Antenna OptionsThe C5x ​​radio's native 8 dBi gain can be increased to 12, 16, 20 or 25 dBi using Mimosa's modular, N5-X, twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility!

Incredible RF PerformanceAvailable with either Cassegrain or horn antenna options, the C5x ​​reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

Ultra RuggedThe C5x, with its die-cast aluminum metal enclosure, dual pole mounts, and industrial-grade twist-on antenna options, is custom-engineered to reduce noise, withstand the outdoor elements and stay mounted in harsh wind and extreme weather.

Extended Frequency 4.9-6.4 GHzTo escape the noise, the C5x ​​lets you take advantage of licensed frequencies from 4.9 GHz up to 6.4 GHz, where allowed by local regulations, including the public safety band in the US. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.

Key Applications• Broadband service providers • Public safety and first responders • Enterprise and campus building interconnecting • Multipoint distribution for WiFi, video security and Smart Cities

Distances that are supported for PTP and PTMP C5x linksThis depends on the antenna size and regulatory power settings. The C5x ​​and all the N5-X antenna options are available in Mimosa's Network Design Tool (NDT). It's free and very easy to model a PTP link or PTMP coverage area, give it a try at:https://design.mimosa.co/designtool/ndt

Performance• Max Throughput: PTP/PTMP: 700 Mbps IP (866 PHY) • Wireless Protocols: Mimosa SRS (GPS Sync); WiFi Interop • Modes: PTP Backhaul; PTMP Client

Radio• MIMO and Modulation: 2x2:2 MIMO OFDM, up to 256 QAM • Bandwidth: 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode • Frequency Range: PTP/PTMP: 4900-6400 MHz (restricted by country of operation) • Max Output Power: 27 dBm • Sensitivity (MCS0): -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz

Power• Max Power Consumption: 9.2 W average; 12.9 W max • System Power Method: Passive POE (24-56 VDC) • PoE Power Supply: Passive POE compliant, 24-56 V Power over Ethernet supply (not included)

Physical• Dimensions: Height: 175 mm (6.89') Width: 70 mm (2.75') Depth: 61 mm (2.40') • Weight: 0.37 kg (0.82 lbs) • RF Connector Type: Mimosa N5-X twist-on • Enclosure Characteristics: Outdoor, die-cast aluminum, UV stabilized paint • Mounting: Dual attached pole mount straps • Grounding: Ground lug • Wind Survivability: 200 km/h (125 mph)

Environmental• Outdoor Ingress Protection Rating: IP55 • Operating Temperature: -40°C to +55°C (-40°F to 131°F) • Operating Humidity: 5 to 100% condensing • Operating Altitude: 4,420 m (14,500') max • Shock Vibration: ETS 300-019-2-4 class 4M5

Regulatory and Compliance• Approvals: FCC Part 15.405 and Part 90Y CE/ETSI • EMI/Safety: FCC Part 15 Class B EN 55022 Class B IEC61000 UL/IEC 60950-2 IEC/EN 60905-1 • WEEE/ROHS Compliance: Yes

Features• Gigabit Ethernet: 10/100/1000-Base-T • Management Services: Mimosa cloud monitoring and management; SNMPv2 Syslog monitoring; HTTPS; HTML5-based web UI • Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of channel and bandwidth use • Security: WPA2 PSK and Enterprise 802.1x, Radius provisioning, COA, DM (from A5); 128-bit AES with hardware acceleration • VLANs: Per subscriber, VLAN, Q-in-Q, triple tagging, management VLAN • QoS: Supports 4 pre-configured QoS levels
