Switch - TP-Link TL-SG1016PE black
Product reference:
14-1210002616775
Managed L2 Gigabit Ethernet switch with 16 RJ-45 ports, 8 of which support PoE+ and deliver up to 30W per port. The device features web management, VLAN, QoS, channel aggregation and IGMP snooping, and a total PoE budget of 150W; black chassis for rack mounting.
Switch - TP-Link TL-SG1016PE black
Product reference:
14-1210002616775
Managed L2 Gigabit Ethernet switch with 16 RJ-45 ports, 8 of which support PoE+ and deliver up to 30W per port. The device features web management, VLAN, QoS, channel aggregation and IGMP snooping, and a total PoE budget of 150W; black chassis for rack mounting.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

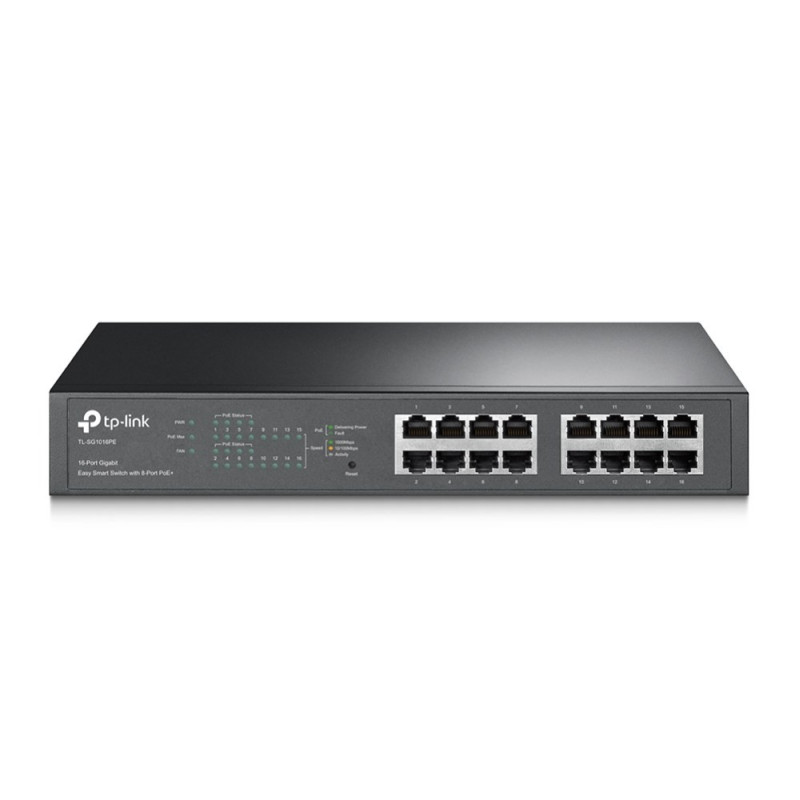

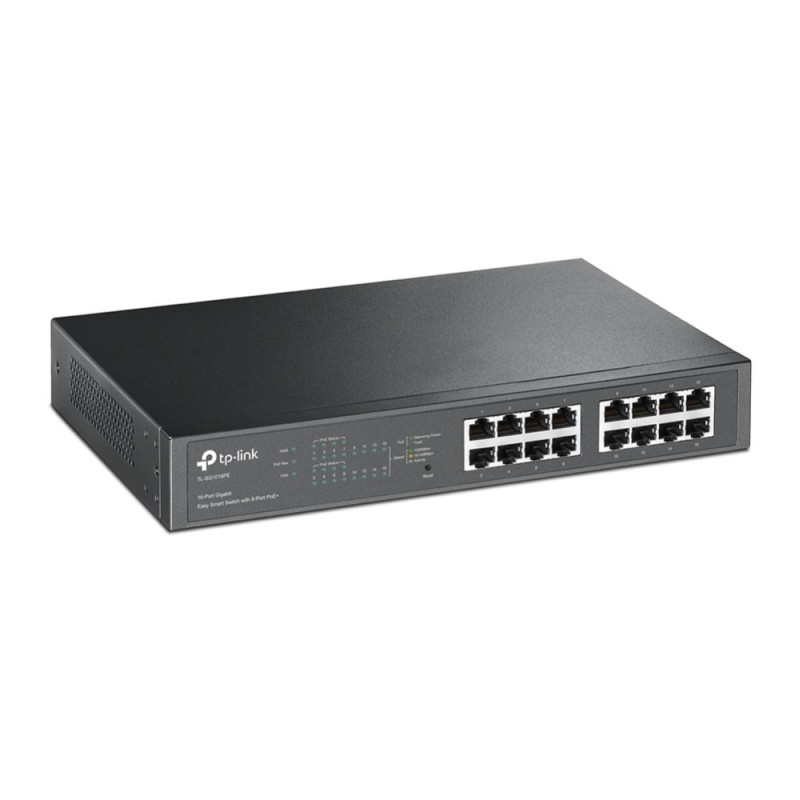

TP-Link TL-SG1016PE black
Managed Layer 2 Gigabit Ethernet network switch with 16 RJ-45 ports and 8 PoE+ ports, each delivering up to 30 W of power. The device supports management via a web interface, VLAN, QoS, channel aggregation, IGMP snooping, and has a total PoE power budget of 150 W. The black housing is suitable for rack mounting.
- Managed 16-port Gigabit Ethernet switch with Layer 2 management via web interface
- 8 PoE+ ports, each delivering up to 30 W, total PoE power budget - 150 W
- Supports VLAN, QoS, channel aggregation, IGMP snooping, and port mirroring
- Black housing, rack-mountable, switching performance - 32 Gbit/s
Product information | |
|---|---|
| Product type | Managed Layer 2 Gigabit Ethernet network switch |
| Brand | TP-Link |
| Model | TL-SG1016PE |
| Color | Black |
| Installation | Rack-mounted |
Ports and connectivity | |
| Ethernet ports | 16 × RJ-45 Gigabit Ethernet |
| Supported speeds | 10/100/1000Mbps |
| PoE+ ports | 8 |
| Supported cables | Cat3, Cat4, Cat5, Cat5e and Cat6 |
| Ethernet standards | IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3ad, 802.3x, 802.1p and 802.1Q |
| 10GbE support | No |
Network management | |
| Control interface | Management via web interface |
| VLAN types | By ports and tagged VLANs |
| Maximum number of VLANs | 4,000 |
| Channel aggregation | Yes |
| Port duplication | Yes |
| Flow control | Rate limiting, traffic control, and broadcast traffic storm control |
| Security features | Static port security and loop protection |
| IGMP snooping | Yes |
| Automatic tuning | Yes |
| Auto MDI/MDI-X | Yes |
Performance | |
| Switching performance | 32 Gbps |
| Transfer rate | 23.8 Mpps |
| MAC address table | 8,000 entries |
| Large frame support | Up to 10,000 bytes |
| Processing method | Store-and-forward |
| QoS queues | 4 |
| Two-way communication mode | Full duplex communication |
Power supply and installation | |
| PoE standard | IEEE 802.3af/at PoE+ |
| PoE power per port | Up to 30W |
| Total PoE power budget | 150W |
| AC input | 100-240V, 50-60Hz |
| Maximum power consumption | 124.4W |
| Power source | Attached |
| Cooling | 1 fan |
| Rack mounting kit | Attached |
Physical properties and conditions of use | |
| 294 × 44 × 180 mm (width × height × depth) | |
| Operating temperature | 0-40°C |
| Storage temperature | −40-70 °C |
| Operating humidity | 10-90% relative humidity |
| Storage humidity | 5-90% relative humidity |
Safety warning | |
| Warning | For indoor network use only. Install and operate the switch in a well-ventilated rack or area, protect from moisture, and use only with a compatible power supply. Disconnect power before installation or maintenance. |
| Height | 100mm |
| Length | 250mm |
| Weight | 1600g |
| Width | 350mm |
