Switch - MERCUSYS MS108GP black
Product reference:
14-6957939003630
Mercusys MS108GP - black 8-port Gigabit Ethernet switch with Power over Ethernet support. It supports VLAN, QoS, link aggregation and rate limiting, and the switching capacity reaches 16 Gbit/s.
Switch - MERCUSYS MS108GP black
Product reference:
14-6957939003630
Mercusys MS108GP - black 8-port Gigabit Ethernet switch with Power over Ethernet support. It supports VLAN, QoS, link aggregation and rate limiting, and the switching capacity reaches 16 Gbit/s.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

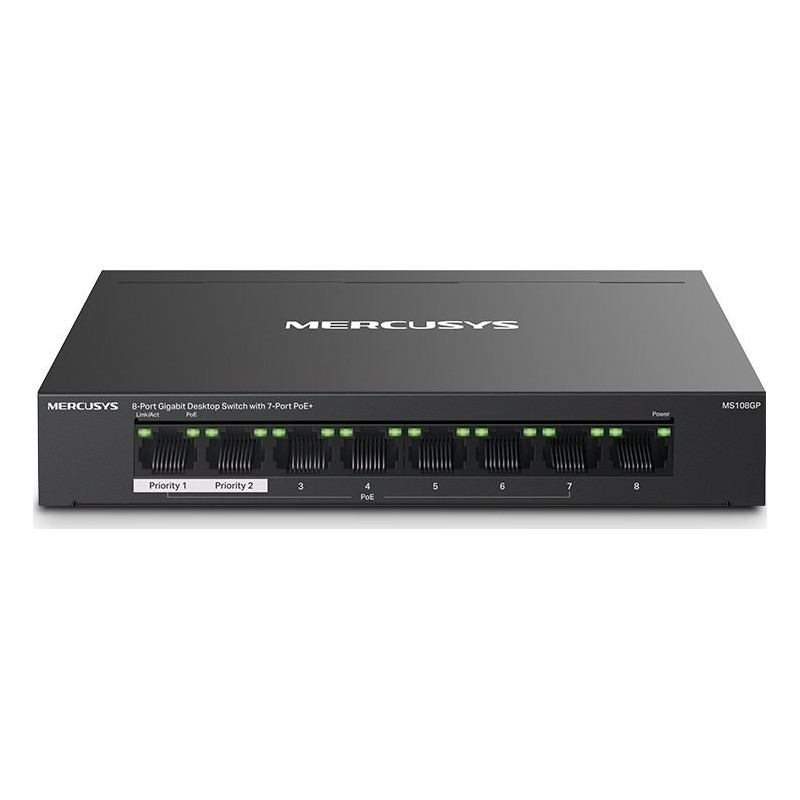

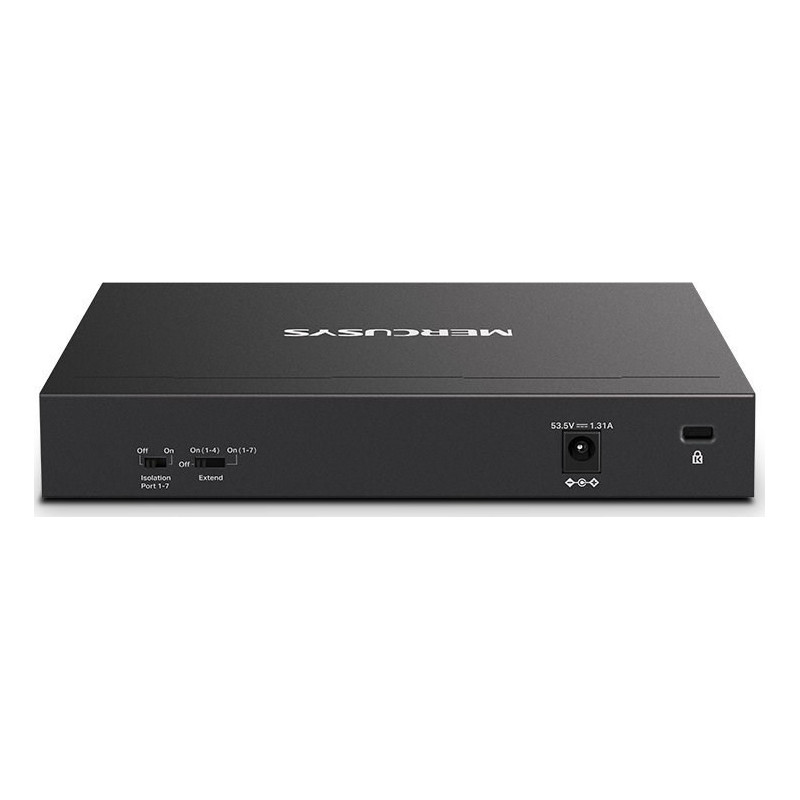

MERCUSYS MS108GP Black
"Mercusys MS108GP" is a black 8-port Gigabit Ethernet switch with Power over Ethernet (PoE) support. It supports VLAN, QoS, link aggregation, rate limiting, and has a switching performance of up to 16 Gbit/s.
- 8-port Gigabit Ethernet switch for reliable high-speed wired networking
- Power over Ethernet (PoE) support for powering compatible devices over network cables
- Managed Layer 2 features: VLAN, QoS, link aggregation, and port mirroring support
- 16 Gbit/s switching performance, 11.9 Mpps throughput, and 9,000-byte jumbo frame support
Product information | |
|---|---|
| Product type | Managed Layer 2 Gigabit Ethernet Switch |
| Brand | MERCURY |
| Model | MS108GP |
| Color | Black |
Network features | |
| Switch layer | Layer 2 |
| VLAN support | Yes |
| Quality of Service (QoS) | Yes |
| Connection aggregation | Yes |
| Port mirroring | Yes |
| Speed limitation | Yes |
| Managing broadcast storms | Yes |
| Flow control | Yes |
| IGMP snooping | No |
| Static port security | No |
Ports and connectors | |
| RJ-45 Ethernet ports | 8 |
| Port speed | 10/100/1000 Mbps Gigabit Ethernet |
| Full duplex communication | Yes |
| Automatic tuning | Yes |
| Auto MDI/MDI-X | Yes |
| Supported cable types | Cat3, Cat4, Cat5, Cat5e and Cat6 |
| 10 Gigabit Ethernet | No |
Power supply and installation | |
| PoE support | Yes |
| Power source | Attached |
| AC input voltage | 100-240V |
| AC input frequency | 50-60Hz |
| Maximum power consumption | 77.33 W |
| Rack mounting | Supported; rack mounting kit included |
Performance | |
| Switching performance | 16 Gbps |
| Throughput | 11.9 Mpps |
| MAC address table | 8,192 entries |
| Large frame size | 9,000 bytes |
| Number of threats | 8 |
Terms of Use | |
| Operating temperature | 0-40°C |
| Operating humidity | 10-90% relative humidity |
| Storage temperature | −40-70 °C |
| Storage humidity | 5-90% relative humidity |
Safety | |
| Safety warning | Use only for wired network switching and PoE applications. Connect the switch to a suitable electrical outlet and ensure sufficient ventilation. Protect from moisture, heat sources and unauthorized modification. |
| Height | 100mm |
| Length | 350mm |
| Weight | 1300g |
| Width | 250mm |
