Presence Sensor - Shelly Presence Gen4 W Motion Sensor, White
Product reference:
14-3800238072391
Shelly Presence Gen4 W - white mmWave radar sensor that detects moving and stationary people indoors. It supports Wi-Fi 6, Zigbee 3.0, Bluetooth 5 LE and Matter, can detect up to six people and monitor up to ten detection zones.
Presence Sensor - Shelly Presence Gen4 W Motion Sensor, White
Product reference:
14-3800238072391
Shelly Presence Gen4 W - white mmWave radar sensor that detects moving and stationary people indoors. It supports Wi-Fi 6, Zigbee 3.0, Bluetooth 5 LE and Matter, can detect up to six people and monitor up to ten detection zones.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Shelly Presence Gen4 W motion sensor, white
Shelly Presence Gen4 W - white mmWave radar sensor for detecting motion and stationary people indoors. It supports Wi-Fi 6, Zigbee 3.0, Bluetooth 5 LE, Matter, can detect up to six people and use up to ten detection zones.
- 60-64 GHz mmWave radar detects real human presence, even when the person is sitting still.
- Monitors up to 6 people, distributed across up to 10 configurable detection zones covering an area of up to 42 m².
- Supports Wi-Fi 6, Zigbee 3.0, Bluetooth 5 LE, Matter, MQTT, and popular smart home platforms.

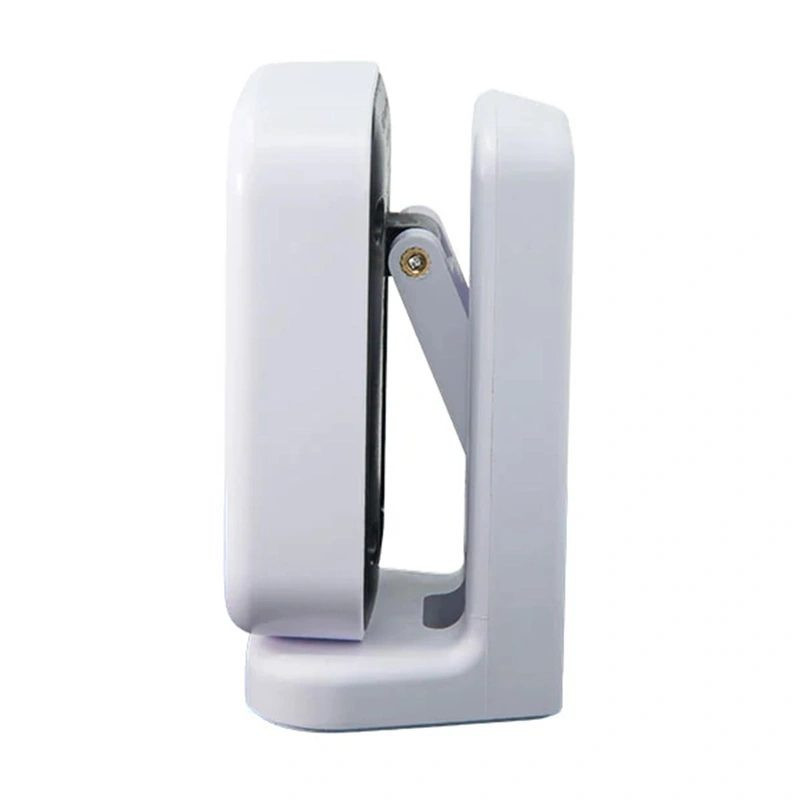

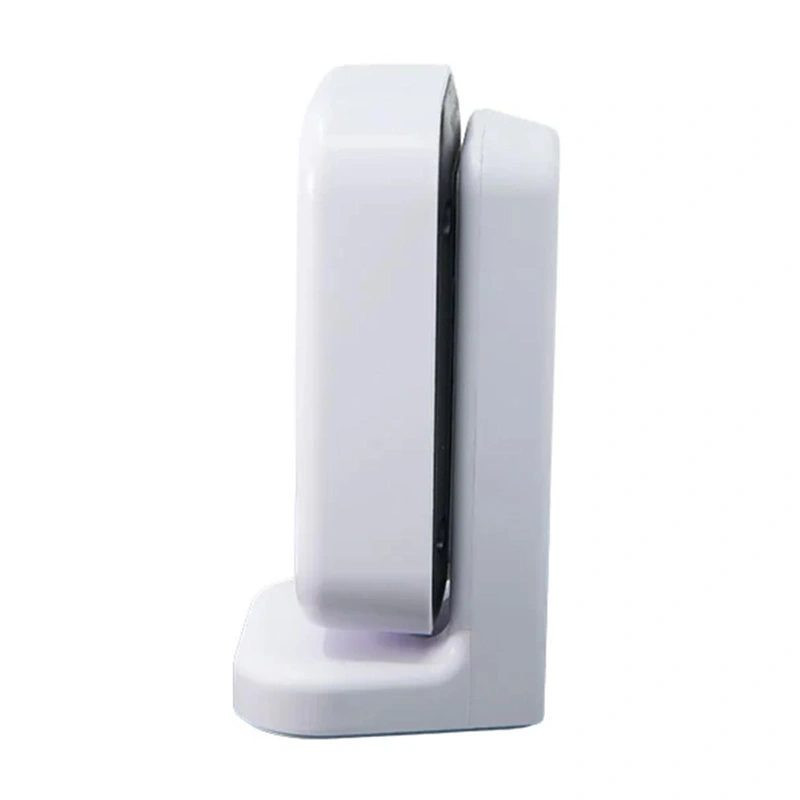

- Compact white housing with integrated light sensor, various mounting options and camera-free privacy.
Product information | |
|---|---|
| Product type | Presence sensor |
| Brand | Shelly |
| Model | Presence Gen4 W |
| Color | White |
| Detection technology | 60-64 GHz mmWave radar |
| Camera | No |
Physical specifications | |
| Dimensions without base | 64 × 41 × 26mm |
| Dimensions with base | 73 × 41 × 37 mm |
| Weight without base | 42 grams |
| Weight with base | 85 g |
| Housing material | Plastic with aluminum back |
| Mounting options | Freestanding base, adhesive tape, screws and wall plugs |
| Mounting direction | Supports 180° inverted mounting |
| Recommended mounting height | 2 years |
| Maximum room height | 5 years |
Detection and sensors | |
| Motionless person detection | Yes, up to 3 m |
| Detection capacity | Up to 6 people |
| Detection area when mounted on the wall | 140° horizontal, 120° vertical; up to 8 × 8 m |
| Detection zone when mounted in a corner | 90°; up to 7 × 7 m |
| Detection zones | Up to 10 configurable zones |
| Light sensor | Yes; dark, twilight, and bright light conditions |
| Detection settings | Adjustable sensitivity and transmission power |
| Filtering | Floor-level motion filtering; filtering of small objects, pets and cleaning robots |
Connection | |
| Wi-Fi | Wi-Fi 6, IEEE 802.11 b/g/n/ax, 2.4 GHz |
| Bluetooth | Bluetooth 5 LE |
| Zigbee | Zigbee 3.0, IEEE 802.15.4 |
| Matter | Matter via Wi-Fi |
| MQTT | Yes |
| Supported platforms | Shelly Cloud, Home Assistant, Amazon Alexa, Google Smart Home and Samsung SmartThings |
| Wireless transmission power | Less than 20 dBm |
Power and software | |
| Power source | 5V DC via USB-C, 1A |
| Energy consumption | 2.5 W nominal; 3.5 W peak |
| Processor | ESP-Shelly-C68F |
| Flash memory | 8MB |
| Schedules | 20, including extended schedules |
| Webhook feature | 20 webhook actions, each with up to 5 URLs |
| Additional features | Scripts, UDP, encryption, and key-value storage |
Terms of Use | |
| Operating temperature | −20 °C-40 °C |
| Operating humidity | 30-70% relative humidity |
| Maximum operating height | 2,000 m |
Safety | |
| Safety warning | Use only for indoor presence detection and smart home automation as intended. Power the sensor only with a suitable 5 V DC USB-C power supply. Protect the device and power connector from water, excessive heat, and damaged cables. Perform installation and wiring work safely to avoid electric shock or damage. |
| Height | 100mm |
| Length | 150mm |
| Weight | 120 g |
| Width | 80mm |
