Energy Sensor - Smart Energy Sensor 1P+N 63A Modbus RS485
Product reference:
14-9990001083830
The smart energy sensor monitors energy consumption in single-phase systems up to 63A and transmits data via Modbus RTU (RS485). It measures voltage, current, power and energy with 1% accuracy and operates in temperatures from -25°C to +60°C.
Energy Sensor - Smart Energy Sensor 1P+N 63A Modbus RS485
Product reference:
14-9990001083830
The smart energy sensor monitors energy consumption in single-phase systems up to 63A and transmits data via Modbus RTU (RS485). It measures voltage, current, power and energy with 1% accuracy and operates in temperatures from -25°C to +60°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days

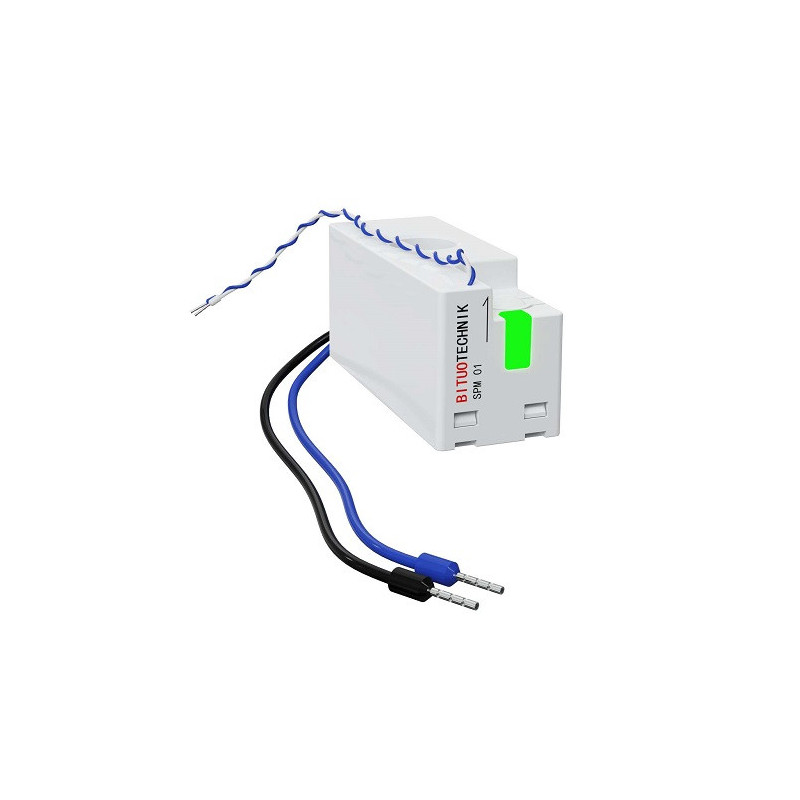

Smart energy sensor, 1P+N, 63A, Modbus RS485
The smart energy sensor monitors energy consumption in single-phase systems up to 63A and communicates via Modbus RTU (RS485). It measures voltage, current, power and energy with 1% accuracy and operates in a temperature range from -25°C to +60°C.
- A competent smart energy sensor for efficient monitoring of single-phase systems (1P+N).
- Measures voltage, current, power and energy consumption with high accuracy (1%; class 1).
- Uses Modbus RTU communication for stable integration with industrial control systems.
- Flexible installation in small distribution panels, ideal for monitoring specific circuits or devices.
Features | |
|---|---|
| Product type | Smart energy sensor |
| Model | 1P+N, 63A, Modbus RS485 |
Specifications | |
| Maximum current | 63 A |
| Working voltage | 110~240V AC |
| Frequency | 50/60Hz |
| Rated insulation voltage | 250V |
| Energy measurement accuracy | 1%; Class 1 |
| Working power | 0.5W |
| Rated impulse withstand voltage | 4 kV |
| Overload category | III |
| Connector type | Modbus RTU (RS485) |
| Reset button | Yes |
| Indicator light | Yes |
| Installation | Down |
| Protection class | IP20 |
| Working temperature | -25°C to +60°C |
| Gauge cavity diameter | 9.8 mm |
| Dimensions | 46.8 x 17.8 x 21.3 mm |
| Height | 50mm |
| Length | 200mm |
| Weight | 150 g |
| Width | 100mm |
