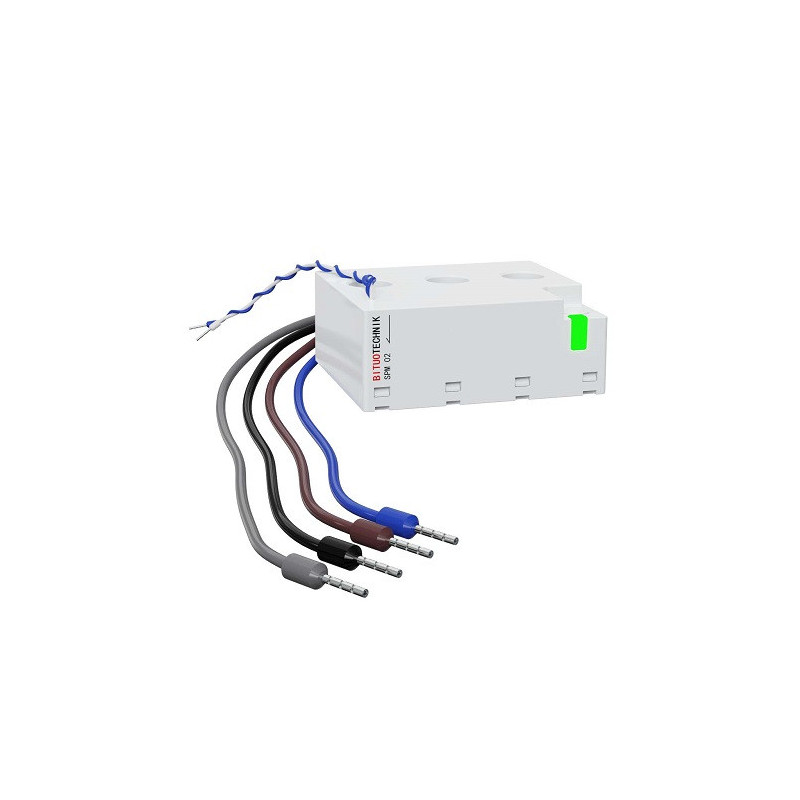

Energy Sensor - Smart 3P+N 63A Modbus RS485
Product reference:
14-9990001083854
The smart energy sensor monitors energy consumption in three-phase systems up to 63A and supports Modbus RS485 communication. It provides real-time measurements of voltages, currents, power and frequency with 1% accuracy.
Energy Sensor - Smart 3P+N 63A Modbus RS485
Product reference:
14-9990001083854
The smart energy sensor monitors energy consumption in three-phase systems up to 63A and supports Modbus RS485 communication. It provides real-time measurements of voltages, currents, power and frequency with 1% accuracy.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Smart energy sensor, 3P+N, 63A, Modbus RS485
The smart energy sensor monitors energy consumption in three-phase systems up to 63A and supports Modbus RS485 communication. It provides real-time voltage, current, power and frequency measurements with 1% accuracy.
- Advanced energy monitoring for three-phase systems (3P+N) with real-time voltage, current and power measurements.
- Supports current measurement up to 63A, ensuring accurate energy consumption monitoring.
- Uses Modbus RS485 communication for stable and fast integration with industrial control systems.
- Flexible mounting options allow monitoring of specific circuits without occupying a DIN rail.
Features | |
|---|---|
| Product type | Smart energy sensor |
| Model | 3P+N, 63A, Modbus RS485 |
Specifications | |
| Maximum current | 63 A (3P+N) |
| Working voltage | 208~415V AC |
| Frequency | 50/60Hz |
| Rated insulation voltage | 400V |
| Energy measurement accuracy | 1%; Class 1 |
| Labor consumption | 0.7W |
| Rated impulse withstand voltage | 4 kV |
| Transmission category | III |
| Communication type | Modbus RS485 |
| Reload button | Yes |
| Indicator light | Yes |
| Installation | Below |
| Protection class | IP20 |
| Working temperature | -25°C~+60°C |
| Diameter of the measured cavity | 9.8mm |
| Dimensions | 46.8x52.8x21.3mm |
| Height | 100mm |
| Length | 150mm |
| Weight | 250 g |
| Width | 80mm |
