Energy Monitor - Smart Energy Monitor 3P+N 120A DIN Modbus RS485
Product reference:
14-9990001083816

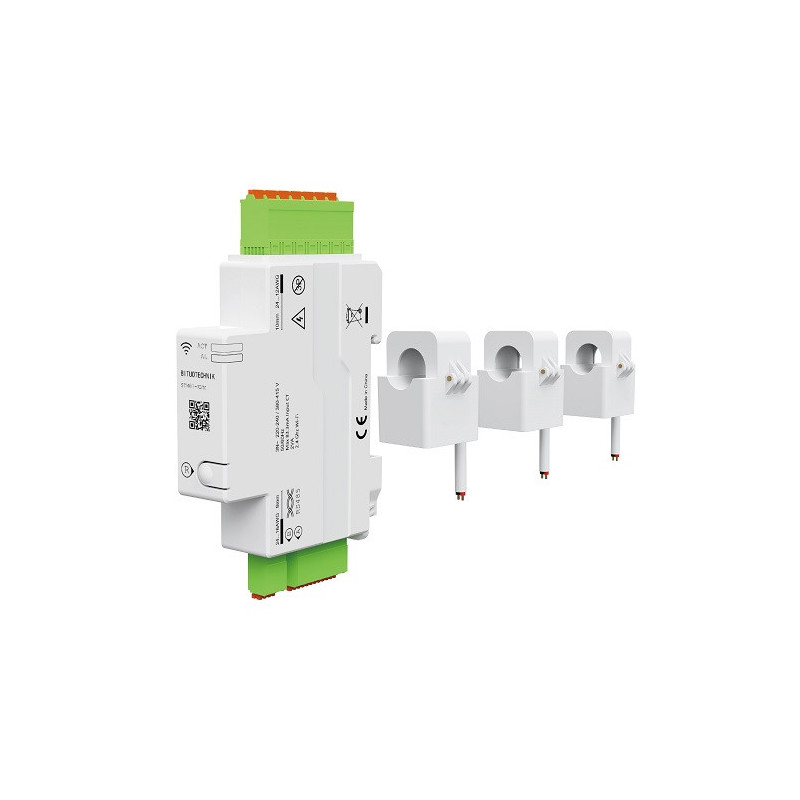

The smart energy monitor monitors energy consumption in three-phase systems with a maximum current of 120A and has Modbus RTU communication. It is equipped with three partial current transformers for easy installation and accurate monitoring.
Energy Monitor - Smart Energy Monitor 3P+N 120A DIN Modbus RS485
Product reference:
14-9990001083816
The smart energy monitor monitors energy consumption in three-phase systems with a maximum current of 120A and has Modbus RTU communication. It is equipped with three partial current transformers for easy installation and accurate monitoring.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Smart Energy Monitor 3P+N, 120A, DIN, Modbus RS485
Smart Energy Monitor monitors energy consumption in three-phase systems with maximum current 120A and has Modbus RTU communication. It has three transparent current transformers for easy installation and accurate monitoring.
- Advanced real-time monitoring of voltage, current, power and energy consumption in three-phase systems (3P+N).
- Easy installation with transparent current transformers (CTs) allowing quick setup without power interruption.
- Modbus RTU communication for seamless integration with industrial control systems.
- Precise energy measurement with 1% accuracy, ideal for industrial and commercial applications.
Features | |
|---|---|
| Product type | Smart Energy Monitor |
| Model | 3P+N, 120A, DIN, Modbus RS485 |
Specifications | |
| Maximum current (Imax) | 120 A |
| Working voltage | 220~240V AC (phase-neutral) / 380~415V AC (phase-phase) |
| Frequency | 50/60Hz |
| Insulation voltage (Ui) | 440V |
| Energy measurement accuracy | 1%; Class 1 |
| Maximum consumption | lt;2 VA |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Transmission category | III |
| Communication type | Modbus RTU (RS485) |
| Reset button | Yes |
| Installation | On DIN rail |
| Protection class | IP20 |
| Working temperature | -25°C to +70°C |
| Height | 120mm |
| Length | 220mm |
| Weight | 700g |
| Width | 170mm |
