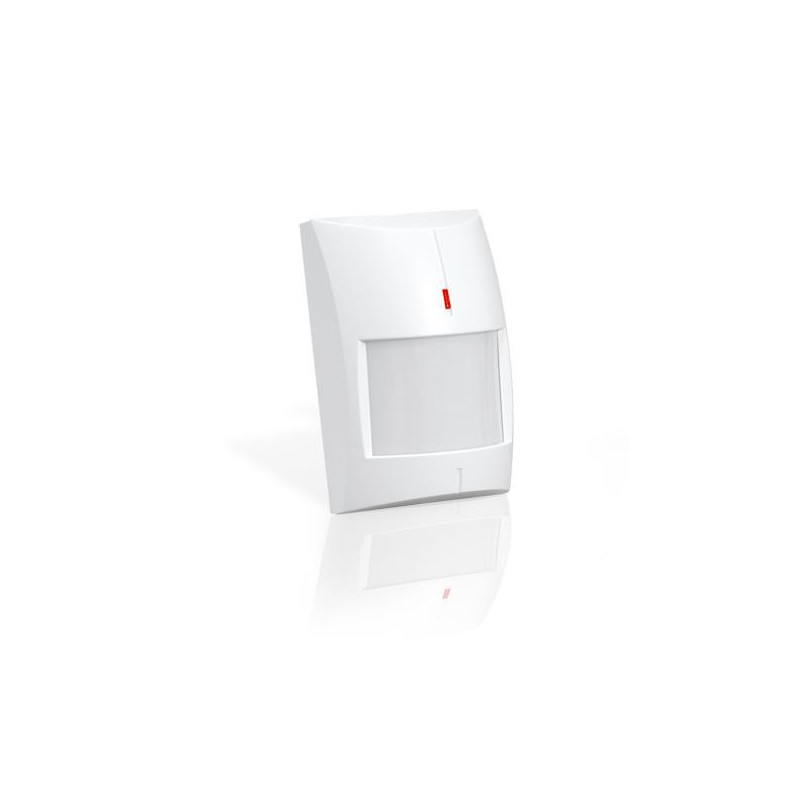

DETECTOR MOTION WRL / MICRA MPD-300 SATEL
Product reference: 2-5905033330238

DETECTOR MOTION WRL / MICRA MPD-300 SATEL

Product reference: 2-5905033330238
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
37,53
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Motion detector, whose function is to detect an intruder moving within the system protected area. Owing to its pet immunity, the MPD-300 can provide protection even if small animals, such as small dogs or cats, are moving in its coverage range at the time of supervision. A lithium battery used to power the device ensures many years of work without having to replace it, so the system is as easy to use as the traditional wired solutions.

  • compatible with MICRA alarm module, PERFECTA 16-WRL and PERFECTA 32-WRL control panels as well as VERSA-MCU and MTX-300 wireless system controllers
  • digital detection algorithm with temperature compensation for high immunity to false alarms and repeatability of parameters
  • ability to change sensitivity to match optimum detector parameters to the protected space
  • optional operating mode with up to 15kg pet immunity, which allows protection of areas where there are pets
  • energy management system to enable many years of operation without having to replace the CR123A lithium battery
  • LED indicating violations in test mode, for easy start-up and subsequent maintenance of the system
  • detection of tamper, e.g. opening enclosure, ripping away from mounting surface

Alarm function Yes
Battery technology Lithium
Battery type CR123A
Certification CE
Connectivity technology Wireless
Depth 49 mm
Height 96 mm
Housing material Plastic
Input voltage 3 V
Installation height (min) 2.4 m
LED colour Red
LED indicators Yes
Model name MPD-300
Mounting type Wall
Operating frequency 433.05/434.79 MHz
Operating relative humidity (H-H) 0 - 93 %
Operating temperature (T-T) -10 - 55 °C
Pet immunity (max) 15 kg
Placement Indoor,Outdoor
Power consumption 20 mA
Power source type Battery
Product colour White
Quantity per pack 1 pc(s)
Sensor type Passive infrared (PIR) sensor
Standby current 0.09 mA
Status feedback Yes
Summary Satel MPD-300. Mounting type: Wall, Placement: Indoor, Outdoor, Product colour: White. Sensor type: Passive infrared (PIR) sensor, Connectivity technology: Wireless, Operating frequency: 433.05/434.79 MHz. Power source type: Battery, Power consumption: 20 mA, Standby current: 0.09 mA. Width: 63 mm, Depth: 49 mm, Height: 96 mm. Quantity per pack: 1 pc(s)
Unit Box Height 0.055
Unit Box Length 0.147
Unit Box Width 0.066
Unit Calculated Volume 0.0005336 cubm
Unit Calculated Weight 0.149 kg
Units per Shipping Box 1
Vendor Homepage https://www.satel.pl/
Weight 108 g
Width 63 mm
