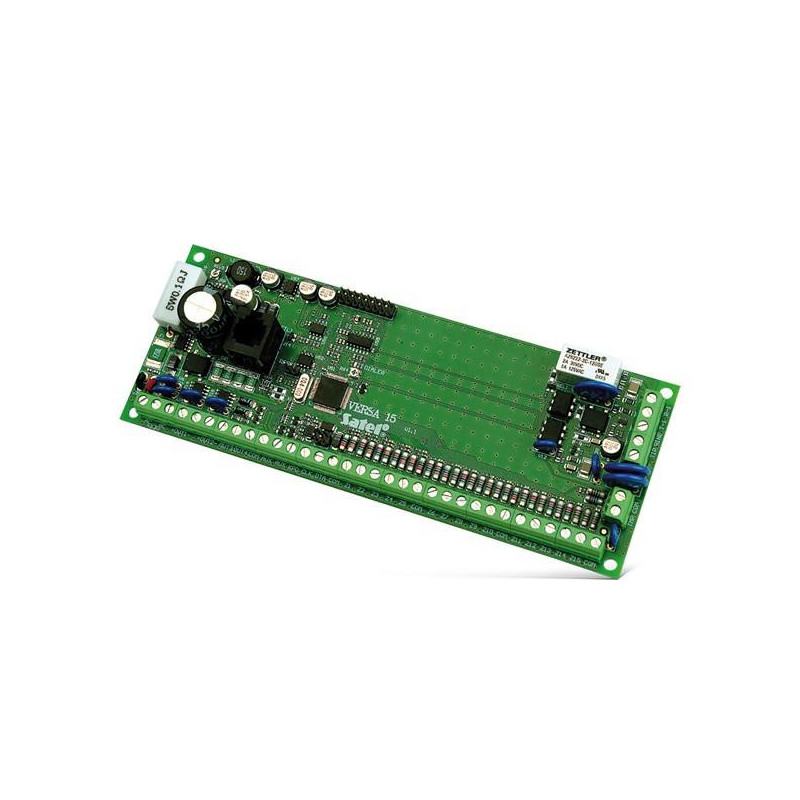

CONTROL PANEL 15-30ZONES / VERSA15 SATEL
Product reference: 2-5905033330153
CONTROL PANEL 15-30ZONES / VERSA15 SATEL

CONTROL PANEL 15-30ZONES / VERSA15 SATEL

Product reference: 2-5905033330153
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
94,97 €
Last product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*



  • EN50131 Grade 2 compliance


  • 15 zones expandable up to 30:



    • NO, NC, EOL, 2EOL/NO, 2EOL/NC zone configurations


    • support for vibration and roller shutter detectors


    • detectors supervision






  • additional tamper input


  • 4 up to 12 programmable outputs


  • 2 supply outputs


  • 2 partitions:



    • 3 arming modes for each partition


    • arming/disarming by users or timer controlled






  • communication bus for keypads, readers and expansion modules


  • RS-232 port (RJ type socket) for panel programming built-in telephone dialer for:



    • reporting (SIA, ContactID, other)


    • personal messaging (8 telephone numbers, 64 text/16 voice messages)


    • remote programming (built-in 300 bps modem)






  • support for GSM/GPRS communicator:



    • SMS/GPRS reporting


    • voice/SMS messaging






  • support for TCP/IP communicator:



    • e-mail messaging


    • TCP/IP reporting






  • system operation via:



    • LCD or LED keypads (up to 6)


    • proximity tags/cards (up to 6 readers)


    • remote control key fobs






  • easy update of firmware for enhancing the panel with new features


  • support for 31 user codes:



    • 30 standard users


    • 1 installer






  • individual naming for easy system operation and management


  • timers:



    • 4 timers with holidays support






  • event log with 2047 entries


  • automatic diagnostics of basic system components


  • built-in 2 A switching mode power supply:



    • overload protection


    • deep discharge protection


    • battery charging supervision







Dimensions 23.5 x 13 x 5.5cm
Product Net Weight 0.14 kg
Unit Box Height 0.055
Unit Box Length 0.23
Unit Box Width 0.13
Unit Calculated Volume 0.001645 cubm
Unit Calculated Weight 0.419 kg
Units per Shipping Box 1
Vendor Homepage http://www.satel.pl/en/product/391/VERSA%2015,Intruder-alarm-control-panel
