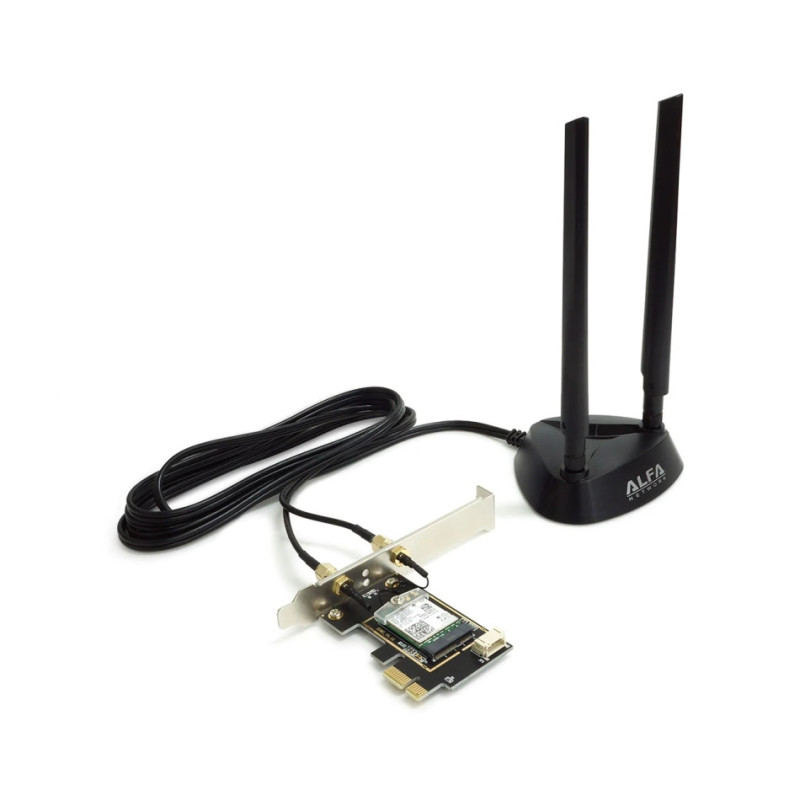

ALFA NETWORK Wi-Fi 6E PCIe Card with Magnetic Antenna

Product reference: 18-AIT-AX210-EX

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

5402 €

Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

Ask about product

AIT-AX210-EX is a WiFi 6E PCIe card, based on the Intel AX210 module

AIT-AX210-EX supports the latest WiFi 6E (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. The module also includes Bluetooth 5.2, is backward compatible and operates in 2.4, 5 and 6 GHz bands.

The PCI Express ×1 interface allows using this set in any desktop PC equipped with a PCIe ×1, ×4, ×8 or ×16 slot.

Parameters	Value
Intel product code	AX210NGW Intel WiFi 6E (Gig+)/Typhoon Peak series
IEEE 802.11 standards	a/b/g/n/ac/ax
Special features	OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT
Frequency	2.4GHz 5GHz 6GHz
Date in circle	Up to 2.4 Gbps
Bluetooth	5.2 (USB 2.0 cable included)
Antenna type	2× tri-band dipole (5 dBi gain) (ARS-AS02T dual magnetic antenna stand with 2-meter RG-174 RF cable included)
Antenna connectors (adapter)	2× RP-SMA (pigtail RF cables included)
Antenna connectors (module)	2× IPEX4 (MHF4)
Interface	PCIe x1 (WiFi) USB 2.0 (Bluetooth)
Operating systems	Microsoft Windows 10 and 11 Linux (kernel 5.10 and above)
Form factor (adapter)	PCI Express ×1 (compatible with ×4, ×8 and ×16 slot type)
Form factor (module)	M.2/NGFF A+E-key 2230
Bundle contents	- 1× Intel AX210NGW module - 1× PCIe ×1 to M.2/NGFF A+E-key 2230 adapter board - 1× ARS-AS02T magnetic antenna stand - 2× dipole antenna with IPEX4 (MHF4) to RP-SMA female pigtail - 1× plastic IPEX4 (MHF4) connectors cover - 1× USB 2.0 cable for Bluetooth - Assembly accessories (screws, etc.)
