ALFA NETWORK Marine Grade 4G / LTE 6dBi Omnidirectional Antenna (AOA-M4G)
Product reference:
18-AOA-M4G
ALFA NETWORK Marine Grade 4G/LTE 6dBi Omnidirectional Antenna (AOA-M4G)
ALFA NETWORK Marine Grade 4G / LTE 6dBi Omnidirectional Antenna (AOA-M4G)
Product reference:
18-AOA-M4G
ALFA NETWORK Marine Grade 4G/LTE 6dBi Omnidirectional Antenna (AOA-M4G)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days

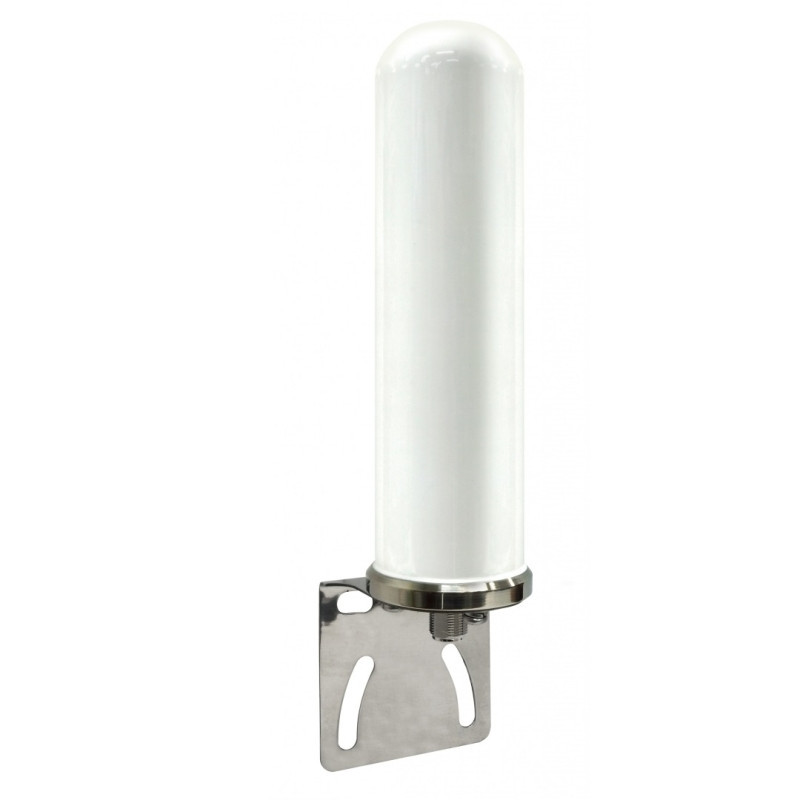

ALFA AOA-M4G is a weatherproof 4G omnidirectional antenna that is ideal for marine applications. The omni antenna has a gain of 6dBi and covers all 4G frequency bands (800, 1800, 2600 MHz). Due to the materials used and the robust construction, the AOA-M4G antenna withstands even extreme weather conditions and aggressive seawater.
Frequency Range | 698-960MHz, 1710-2700MHz |
Gain | 4/6 dBi |
VSWR | <1.5 |
Radiation | Omni Direction |
Horizontal Beam width | 360º |
Vertical Beam width | 18º |
Polarization | Vertical |
Maximum Input Power | 100W |
Impedance | 50 ohms |
Connector | N Female |
Antenna Material | Fiberglass |
Mount type | Pole |
Diameter of Installation Pole | Ø30 - Ø50 mm |
Dimensions | Ø63 x 220 mm |
Weight | 1.2 kg |
Operating Temperature | -40ºC - 70ºC |
Rated wind speed | 60 m/s |
