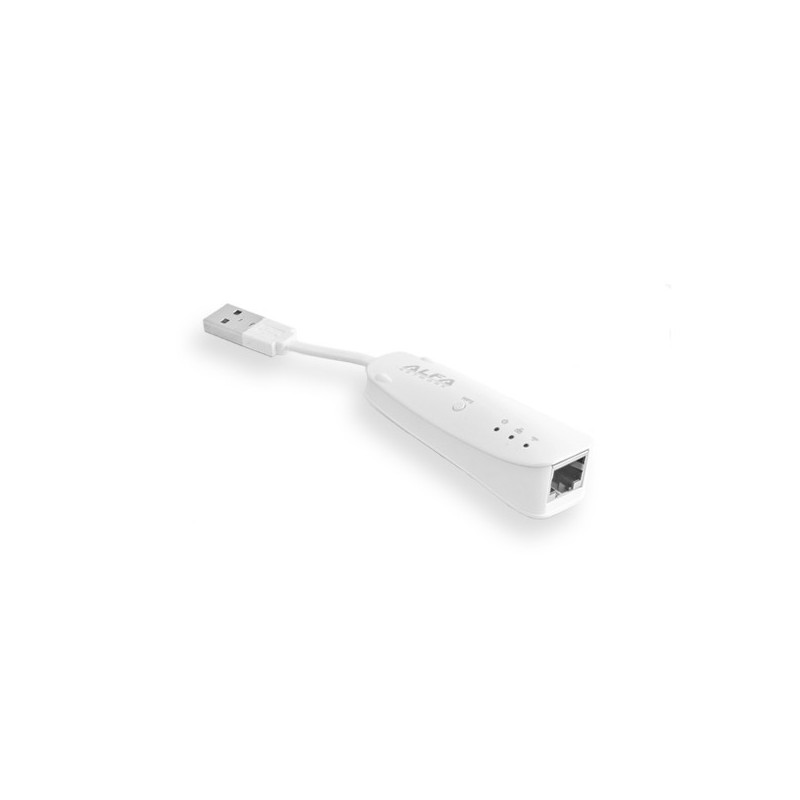

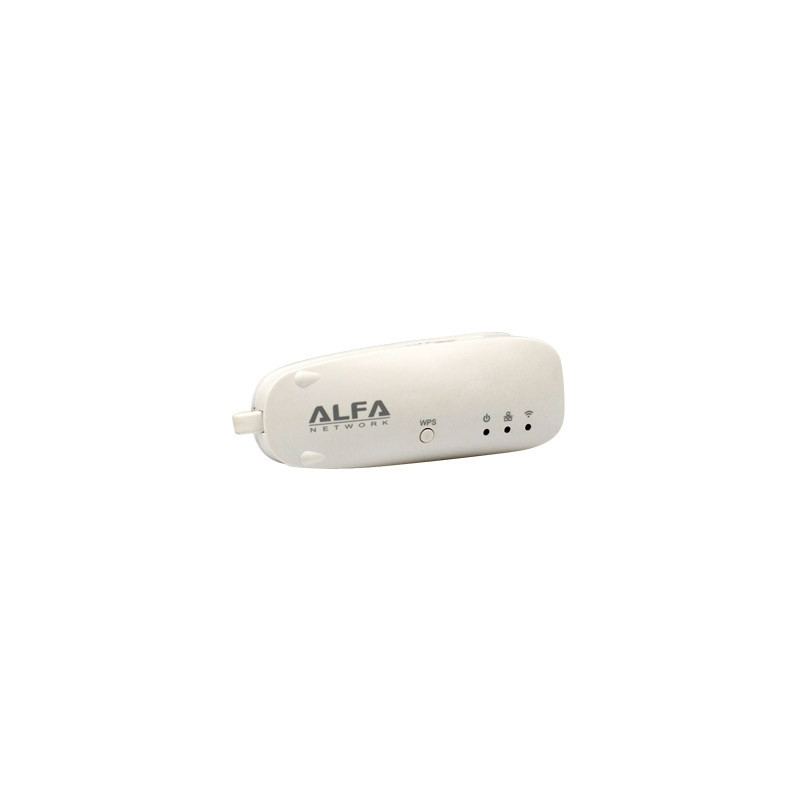

ALFA NETWORK 802.11n standard Wireless Travel Router

AIP-W511 is a thumb-size 5-in-1 USB wireless AP/router and Ethernet adapter taking wireless networking to another level.

• AP mode


• Router mode


• Repeater mode


• Wireless client mode


• USB to Ethernet adapter mode


• Auto-install


• Thumb size


• Plug Play


• Power by USB port


• Easy web UI setup


• Flip USB cable


• Easy setup by domain name alfasetup.com, without knowing IP address


• Traveling is all about convenience


• Thumb size 72 x 27 x 15 mm (suitable for Macbook Air Ultra Book)


• Auto-install for AIP-W511 802.11n 5-IN-1 Travel Router Adapter

Standard: IEEE 802.11b/g/n Frequency Band: 2.4GHz ISM Band Data Rate: 802.11b: Up to 11Mbps 802.11g: Up to 54Mbps 802.11n: Up to 150Mbps LED indicators: Power / LAN / Wireless Antenna: 2dBi embedded antenna Interfaces: 1x RJ45 Ethernet WAN/LAN Port 1x USB flip cable 1x WPS button 1x Reset button Receive Sensitivity: -82dBm@802.11b -76dBm@802.11g -73dBm@802.11n Security: Wired Equivalent Privacy (WEP) data encryption Dynamic WEP key exchange WEP64/128, WPA, WPA2 802.1x Dimension: 65 x 15.25 x 21.25 mm Power: USB 5V / 500mA Operating Temperature: -20 ~ 65 Storage Temperature: -10 ~ 70 Humidity: 5~90% (non-condensing) Support Operation: Windows XP, Windows 7, Windows 8, Windows 8.1, Mac OSX 10.6.x, 10.7.x, 10.8.x
