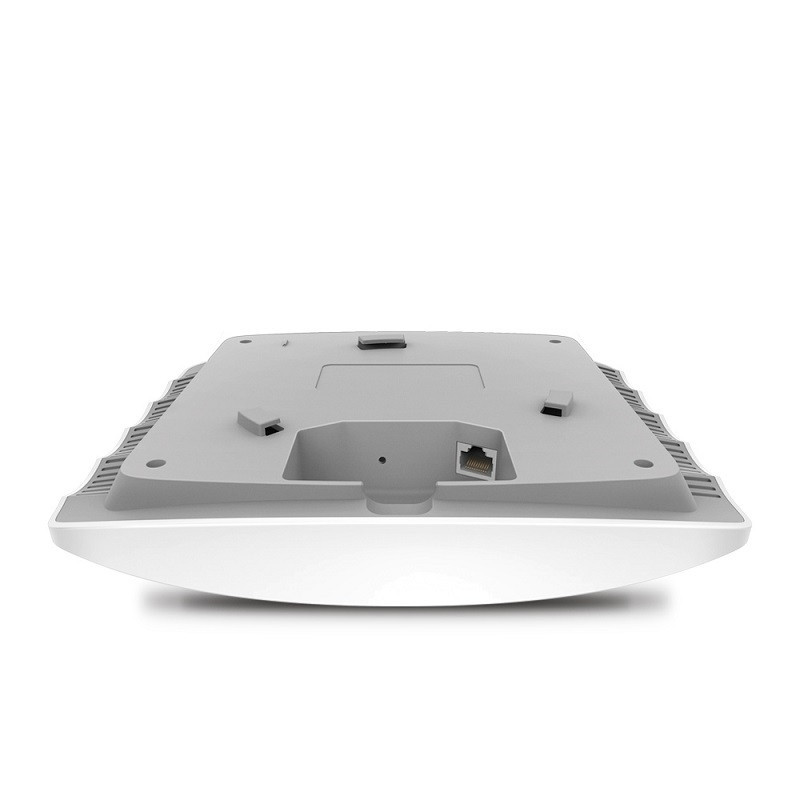

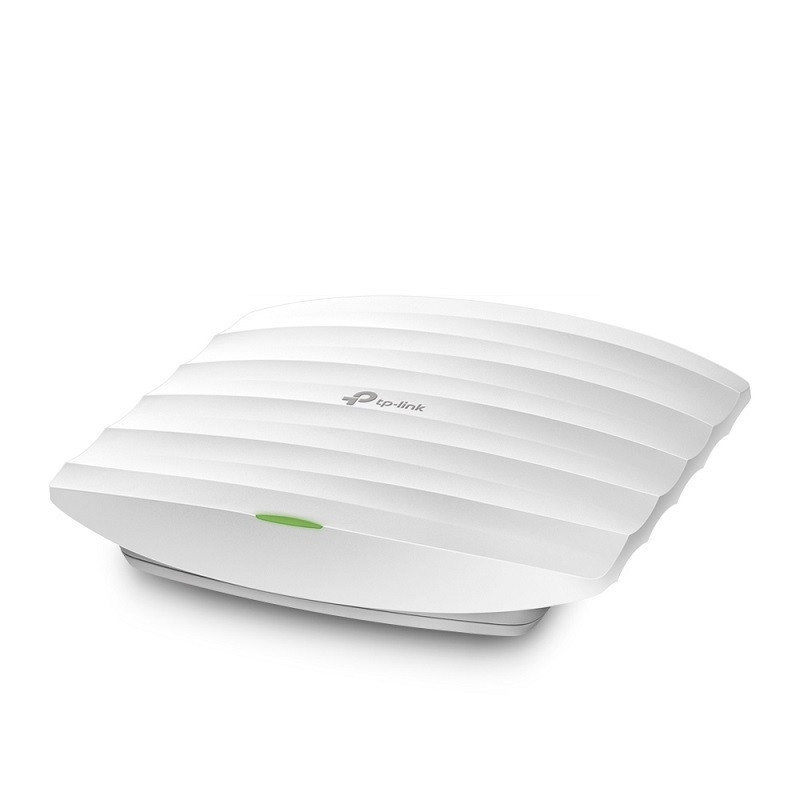

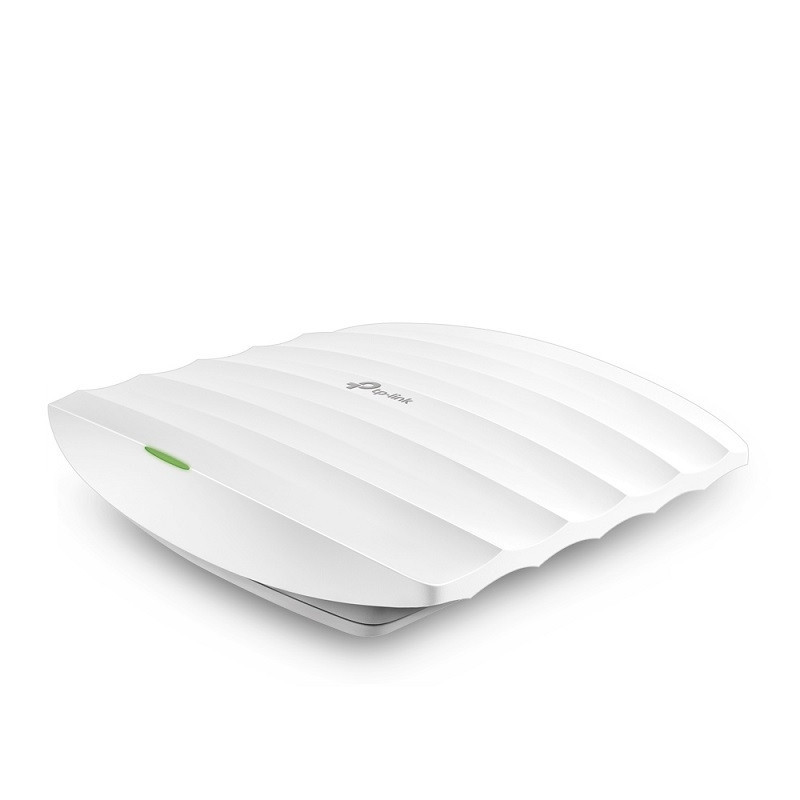

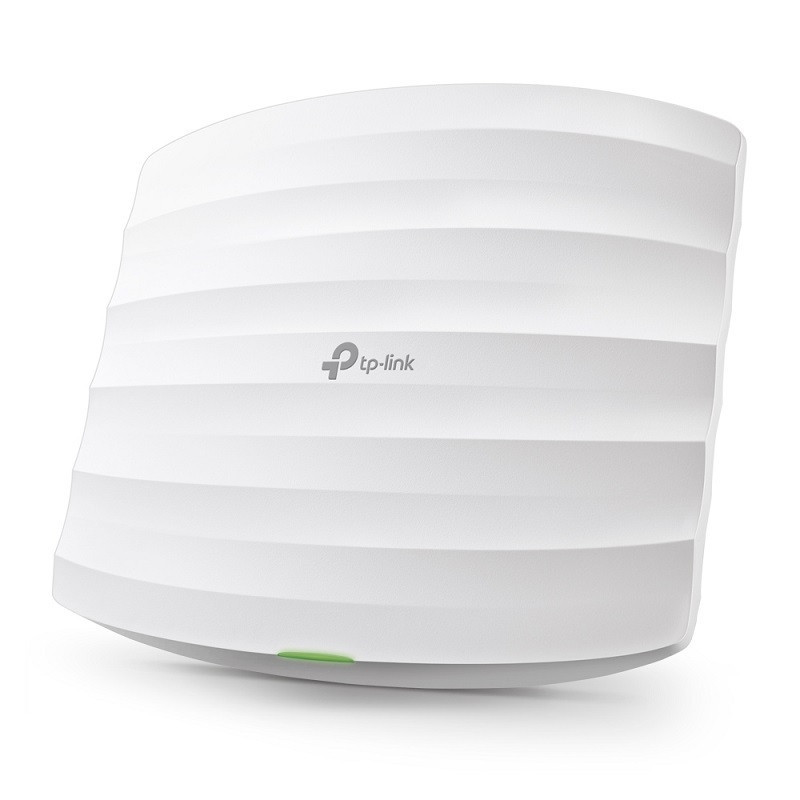

AC1350 Wireless Dual Band Gigabit Ceiling Mount Access Point

• Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds


• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations


• Free cloud centralized management and Omada app for ultra convenience and easy management


• Compatibility with 802.3af and Passive PoE (PoE adapter included) support makes deployment effortless and flexible


• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.


• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections


• MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections


• Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience


• Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

HARDWARE FEATURES

Interface: Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE) Button: Reset

Power Supply: 802.3af/A PoE 24V Passive PoE (+4.5pins; -7.8pins. PoE Adapter Included)

Power Consumption: 10.5 W Dimensions: 205.4 × 181.6 × 37.4 mm

Antenna Type: Internal Omni 2.4GHz: 3*4dBi 5GHz: 2*5dBi

Mounting: Ceiling /Wall Mounting (Kits included) Physical Security Lock: Yes Hardware Watch Dog: Yes

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/g/b/a Frequency: 2.4GHz and 5GHz

Signal Rate: 5GHz: up to 867Mbps 2.4GHz: up to 450Mbps

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Band Steering Load Balance MU-MIMO Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support

Transmission Power: CE: ≤20dBm(2.4GHz,EIRP), ≤23dBm(5GHz,EIRP) FCC: ≤24dBm(2.4GHz), ≤22dBm(5GHz)

MANAGEMENT

Omada Controller Software: Yes Omada Cloud Controller: Yes (sold separately) Omada app: Yes Email Alerts: Yes LED ON/OFF Control: Yes Management MAC Access Control: Yes SNMP: v1,v2c System Logging Local/Remote Syslog: Local/Remote Syslog Telnet: Yes Web-based Management: HTTP/HTTPS L3 Management: Yes Multi-site Management: Yes Management VLAN: Yes

OTHERS

Certification: CE, FCC, RoHS

Package Contents: AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 Passive PoE Adapter Power Cord Mounting Kits Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Environment: Operating Temperature: 0 ~60 (32 ~144 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
