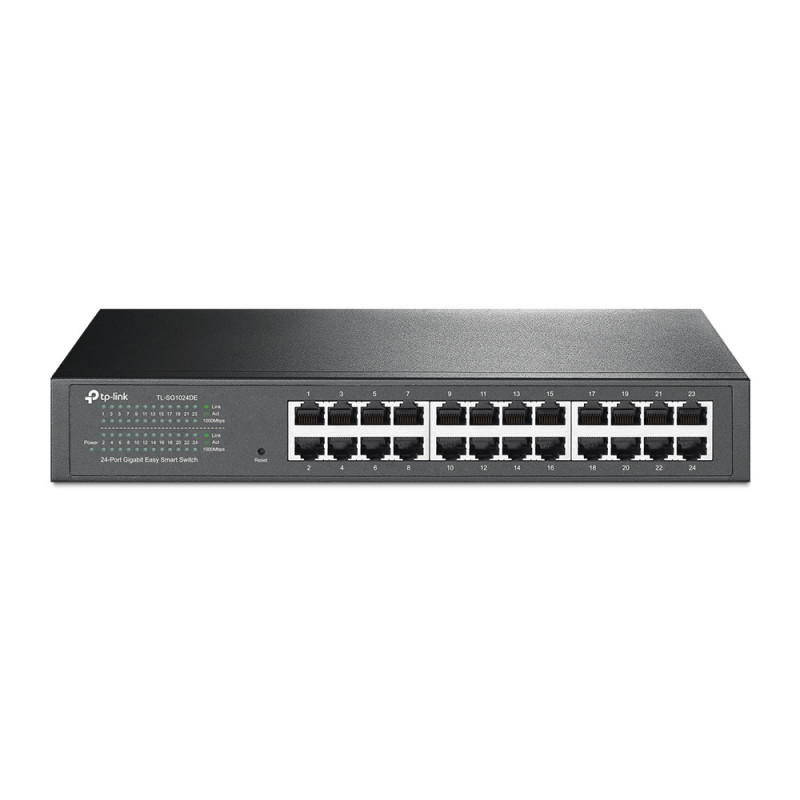

24-Port Gigabit Easy Smart Switch

24 10/100/1000Mbps ports provide instant large file transfers Innovative energy-efficient technology reduces power consumption by up to 18% IEEE 802.3x flow control provides reliable data transfers 9K Jumbo frame improves performance of large data transfers Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics Port-based/802.1p/DSCP QoS1 enable smooth latency-sensitive traffic Abundant VLAN features improve network security via traffic segmentation IGMP Snooping optimizes multicast applications Web-based user interface and management utility simplify configuration

1. DSCP QoS is for V2 and later versions.

HARDWARE FEATURES Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply 100-240VAC, 50/60Hz Power Consumption Maximum: 14.86W (220V/50Hz) Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Packet Buffer Memory 512KB Jumbo Frame 9KB SOFTWARE FEATURES Quality of Service Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Loop Diagnostics Prevention VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet System Requirements Microsoft® Windows® for running Utility Environment Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
