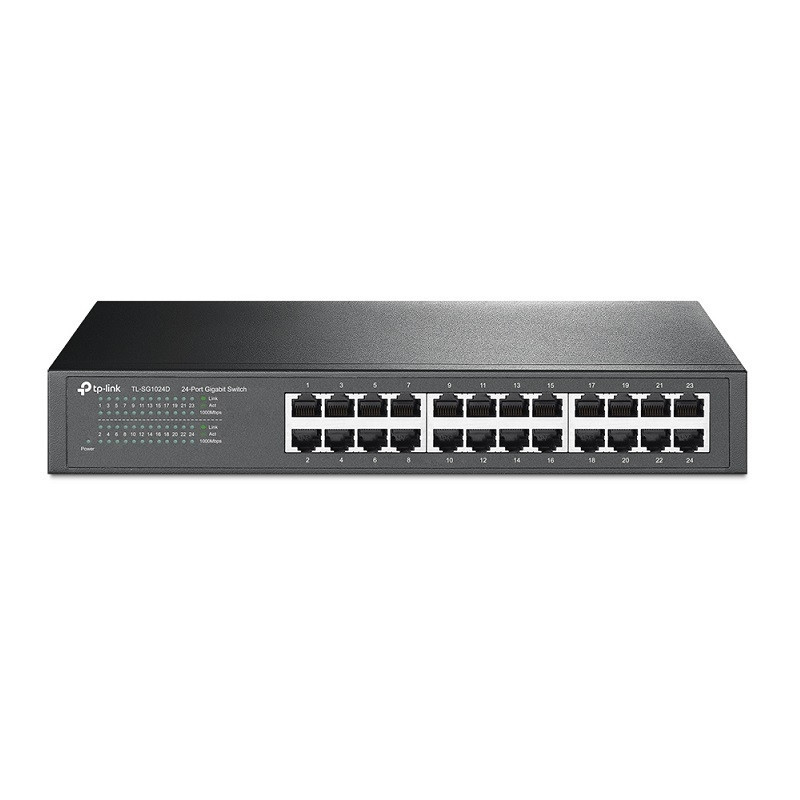

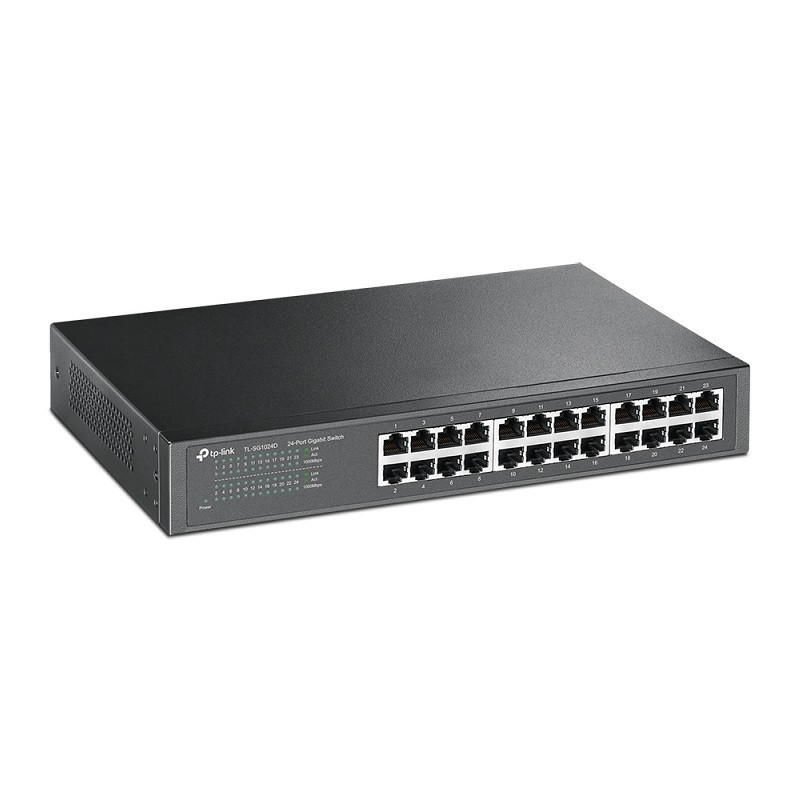

24-Port Gigabit Desktop/Rackmount Switch

Innovative energy-efficient technology saves power consumption Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput 48Gbps Switching Capacity 10KB Jumbo frame improves performance of large data transfers Auto-MDI/MDIX eliminates the need for crossover cables Supports MAC address auto-learning and auto-aging Store and forward Switching scheme Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware. Desktop and Rack-mountable design Plug and Play design simplifies installation

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity: Fanless

Power Supply: 100-240VAC, 50/60Hz

Power Consumption: Maximum: 13.1W (220V/50Hz)

Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44mm)

PERFORMANCE

Switching Capacity: 48Gbps

Packet Forwarding Rate: 35.7Mpps

MAC Address Table: 8K

Jumbo Frame: 10KB

Green Technology: Yes

Transfer Method: Store-and-Forward

OTHERS

Certification: FCC, CE, RoHS

Package Contents: 24-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet

Environment: Operating Temperature: 0 ~40 (32 ~104 ); Storage Temperature: -40 ~70 (-40 ~158 ); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
