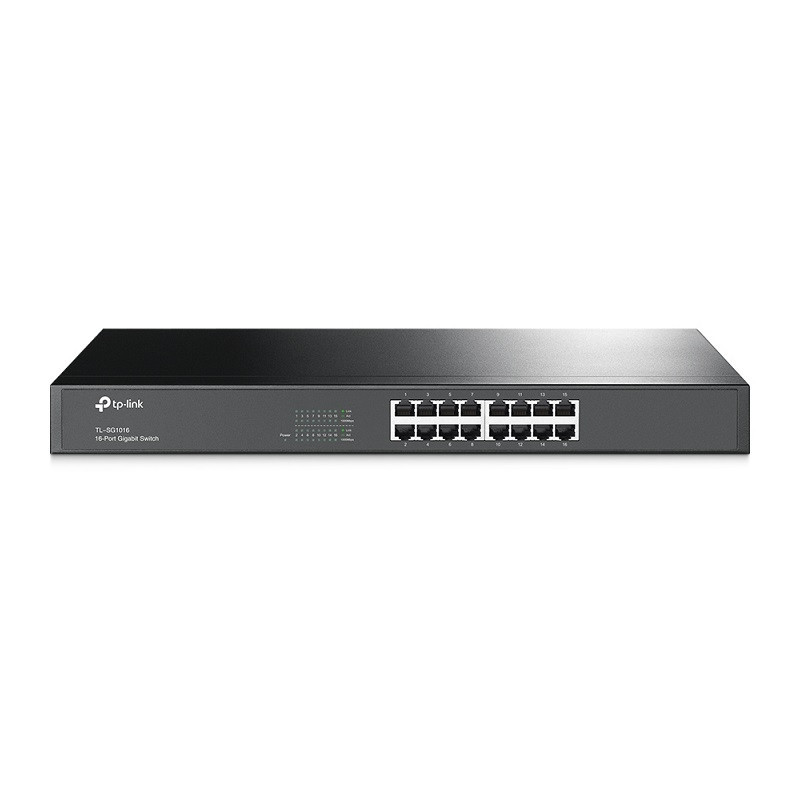

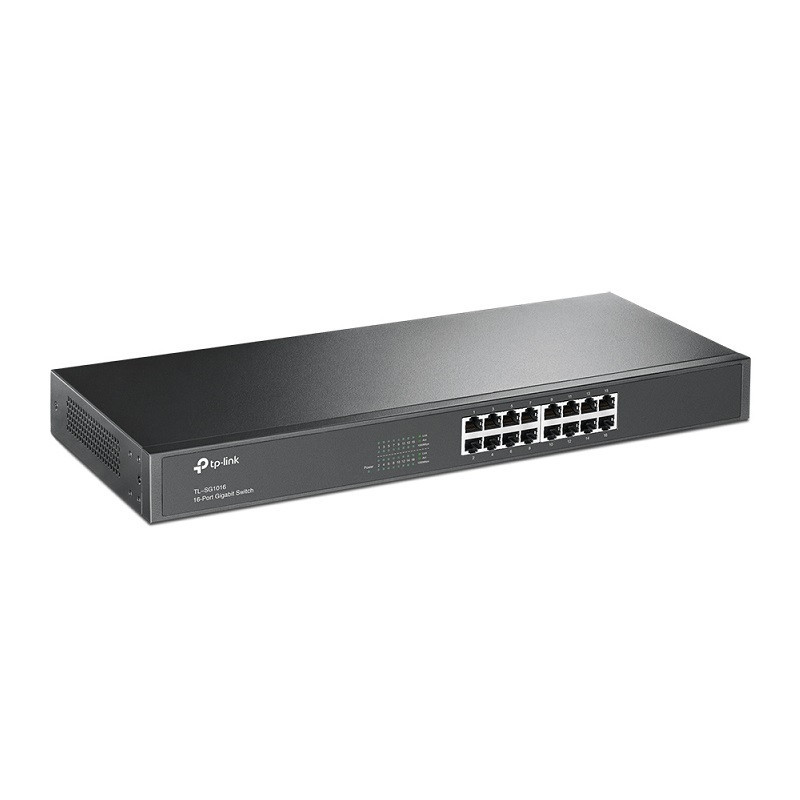

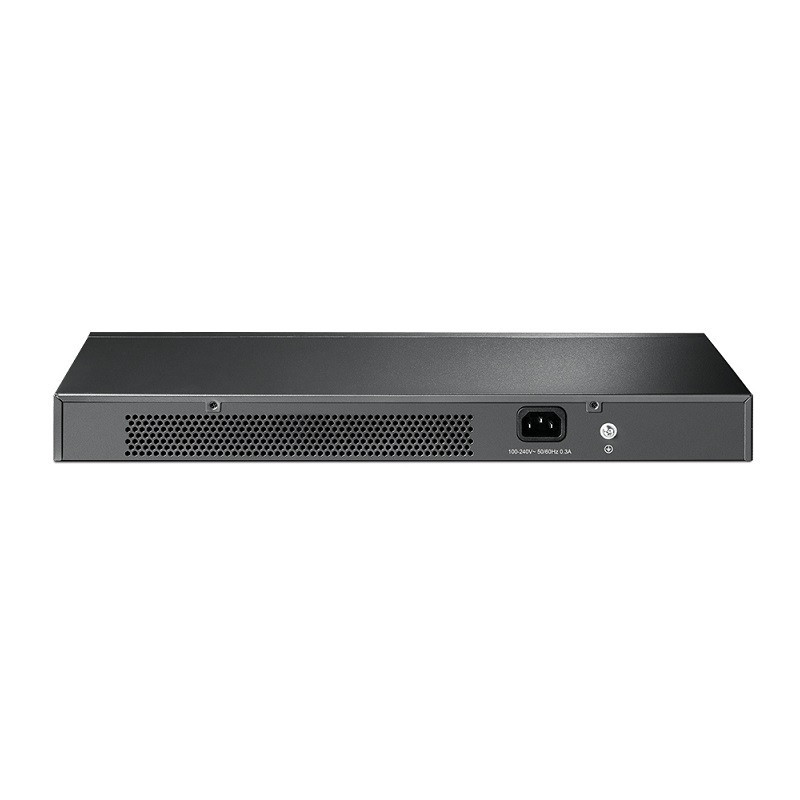

16-Port Gigabit Rackmount Switch

• Innovative energy-efficient technology saves power consumption


• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode


• Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput


• 32Gbps Switching Capacity


• Auto-MDI/MDIX eliminates the need for crossover cables


• Supports MAC address auto-learning and auto-aging


• Support the port N-Way Auto-Negotiation, Store and Forward.


• Compact size design for desktops, Rackmountable


• Plug and Play design simplifies installation

HARDWARE FEATURES

Standards and Protocols:IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity: Fanless Power Supply: 100-240VAC, 50/60Hz Power Consumption: Maximum: 9.26W (220V/50Hz) Dimensions ( W x D x H ): 17.3*7.1*1.7 in. (440*180*44mm)

PERFORMANCE

Switching Capacity:32Gbps Packet Forwarding Rate: 23.8Mpps MAC Address Table: 8K Jumbo Frame: 10KB QoS: 802.1p/DSCP QoS (Only for V12 and later version)Green Technology: Yes Transfer Method: Store-and-Forward

OTHERS

Certification:FCC, CE, RoHS Package Contents: 16-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet Environment: Operating Temperature: 0 ~40 (32 ~104 ); Storage Temperature: -40 ~70 (-40 ~158 ); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
