Thermal Imaging Camera - Guide Sensmart E3 256 × 192 Graphite
Product reference:
14-6970883552665

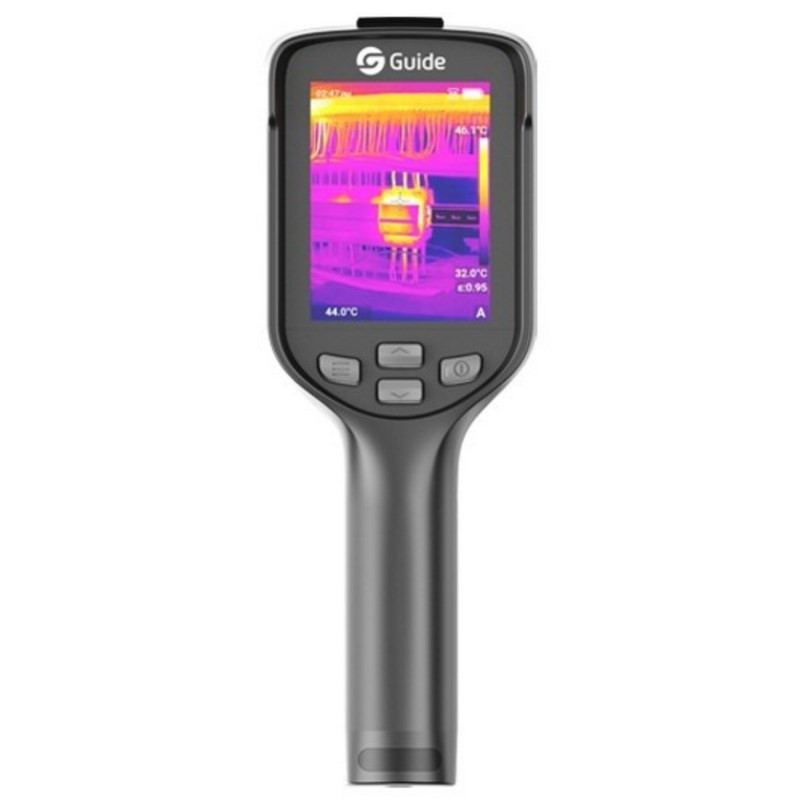

Guide Sensmart E3 is a thermal imaging camera with a resolution of 256 x 192 pixels and a temperature measurement range from -20 to 550 °C. It features an integrated LCD display with a resolution of 640 x 480 pixels and offers both thermal and visual image modes.
Thermal Imaging Camera - Guide Sensmart E3 256 × 192 Graphite
Product reference:
14-6970883552665
Guide Sensmart E3 is a thermal imaging camera with a resolution of 256 x 192 pixels and a temperature measurement range from -20 to 550 °C. It features an integrated LCD display with a resolution of 640 x 480 pixels and offers both thermal and visual image modes.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Guide Sensmart E3 Thermal Imaging Camera 256 X 192 Pixels Integrated LCD Screen 640 X 480 Pixels Graphite
Guide Sensmart E3 is a thermal imaging camera model with a resolution of 256 x 192 pixels and a temperature measurement range from -20 to 550 °C. It has an integrated LCD display with a resolution of 640 x 480 pixels and offers image modes for both thermal imaging and visual imaging.
- High-resolution thermal imaging with a temperature measurement range from -20 to 550 °C.
- Built-in Wi-Fi connectivity for easy image sharing and remote access.
- Durable design with IP54 protection level, resistant to drops up to 200 cm, and lightweight - 370 g.
- Long battery life of up to 12 hours with fast charging capability.
Features | |
|---|---|
| Product Type | Thermal Imaging Camera |
| Product Brand | Guide Sensmart |
| Model | E3 |
Specifications | |
| Dimensions | 194 mm (W) × 62 mm (D) × 76 mm (H) |
| Weight | 370g |
| Color | Graphite |
| Housing Material | Metal |
Technical Data | |
| Temperature Measurement Range | -20°C to 550°C |
| Thermal Imaging Frame Rate | 9 Hz |
| Vertical Viewing Angle | 56° |
| Horizontal Viewing Angle | 42° |
| Accuracy | ±2°C |
| Thermal Imaging Sensitivity (NETD) | 30 mK |
| Built-in Flashlight | Yes |
| Internal Memory Capacity | 32GB |
| Video Frequency | 30Hz |
Battery | |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Battery Life (Max) | 12 hours |
| Fast Charging | Yes |
Ports and Interfaces | |
| USB Connector Type | USB Type-C |
Safety Warning | |
| Use the product only for its intended purpose to ensure safety and accuracy. | |
| Height | 100mm |
| Length | 300mm |
| Weight | 500g |
| Width | 250mm |
