Thermal Imaging Camera - Guide Sensmart E1+ 120x90px LCD Screen
Product reference:
14-6970883551798
The Guide Sensmart E1+ thermal imaging camera has a resolution of 240 x 180 pixels and a temperature measurement range from -20 to 550 ° C. The device is equipped with an integrated LCD screen, Wi-Fi connectivity and up to 8 hours of operating time.
Thermal Imaging Camera - Guide Sensmart E1+ 120x90px LCD Screen
Product reference:
14-6970883551798
The Guide Sensmart E1+ thermal imaging camera has a resolution of 240 x 180 pixels and a temperature measurement range from -20 to 550 ° C. The device is equipped with an integrated LCD screen, Wi-Fi connectivity and up to 8 hours of operating time.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

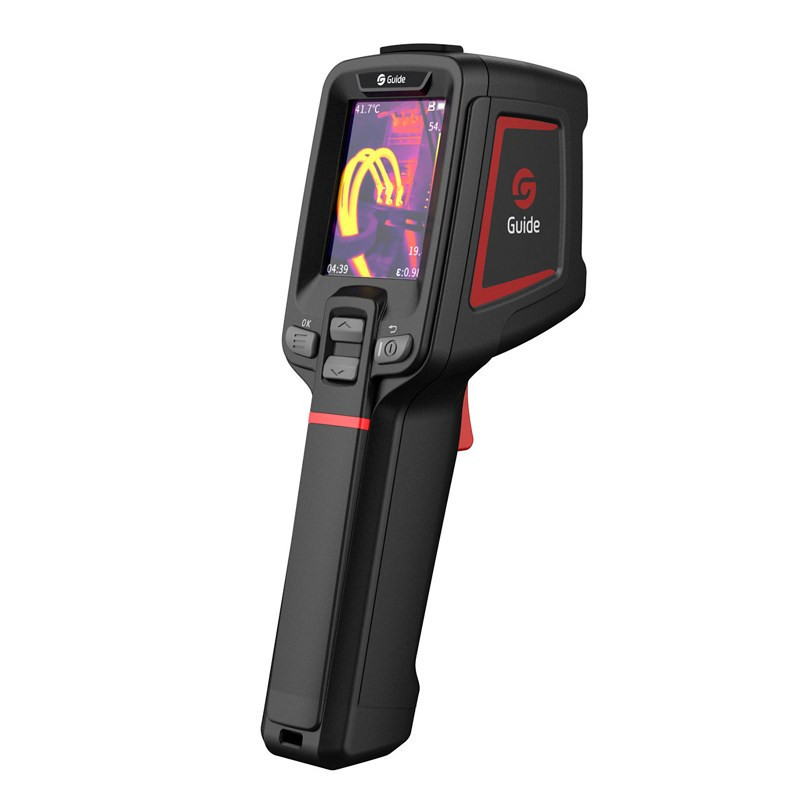

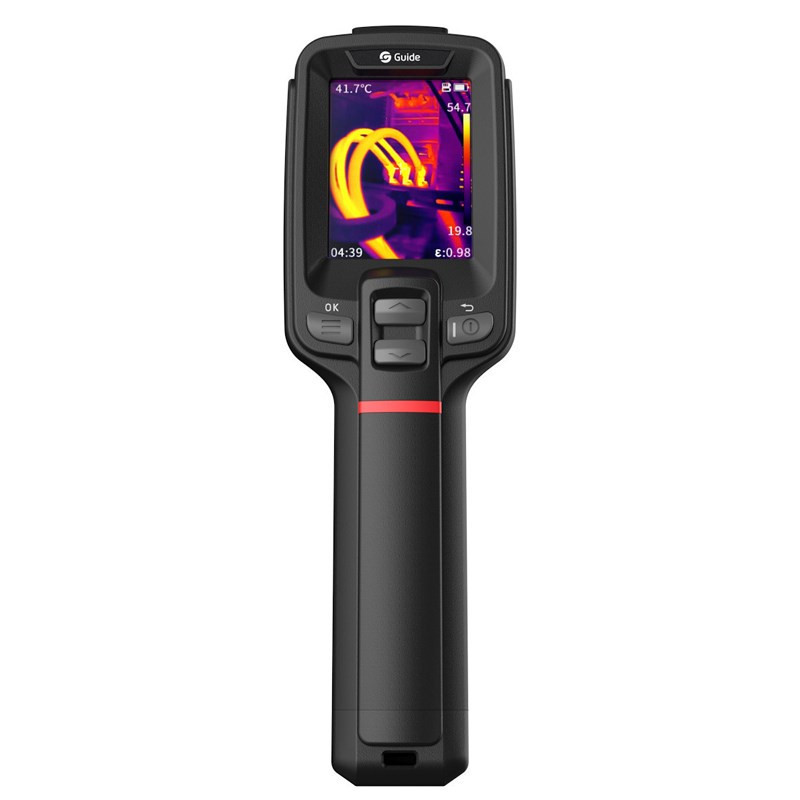

Guide Sensmart E1+ Thermal Imaging Camera
The Guide Sensmart E1+ thermal imaging camera features a resolution of 240 x 180 pixels and a temperature measurement range of -20 to 550 °C. It has an integrated LCD display, Wi-Fi connectivity, and a battery life of up to 8 hours.
- High-quality thermal imaging with 240 x 180 pixel resolution and a temperature measurement range from -20 to 550 °C.
- Durable construction with IP54 protection, resistant to drops up to 200 cm, and a sturdy metal housing.

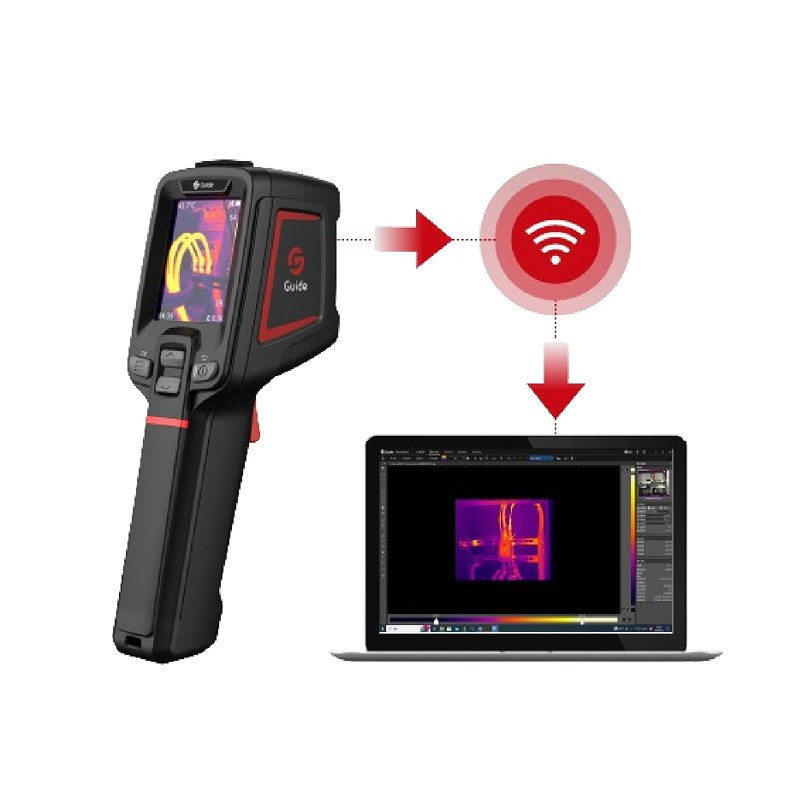

- Reliable built-in Wi-Fi, USB Type-C connectivity, and 8 hours of battery life for extended use.
- Necessary accessories such as a USB cable, wrist strap, battery charger, and user manual are included.
Features | |
|---|---|
| Maximum memory card size | 16GB |
| Wi-Fi | Yes |
Design | |
| Screen diagonal | 6.1 cm (2.4') |
| Integrated display | Yes |
| Product color | Black |
| Screen type | LCD |
| International Protection (IP) Class | IP54 |
| Housing material | Metal |
| Drop resistance | 200cm |
Weight and Dimensions | |
| Weight | 350 g |
| Width | 194 mm |
| Height | 76 mm |
| Depth | 62 mm |
Operation | |
| Maximum resolution | 240 x 180 pixels |
| Horizontal field of view | 50° |
| Internal memory capacity | 16GB |
| Accuracy | 2 °C |
| Thermal imaging frame rate | 25Hz |
| Built-in viewfinder | Yes |
| Temperature measurement range | -20 - 550 °C |
| Thermal sensitivity (NETD) | 60 mK |
| Integrated laser sight | Yes |
| Vertical field of view | 38° |
| Sensor type (thermal imaging module) | Vanadium oxide uncooled focusing plates |
| Infrared spectral range | 7.5 - 14 µm |
| Image frequency | 25Hz |
Packaging Details | |
| Packaging type | Box |
Package Contents | |
| Cables included | USB Type-A to USB Type-C |
| Wrist strap included | Yes |
| Battery charger included | Yes |
| Manager | Yes |
Ports and Interfaces | |

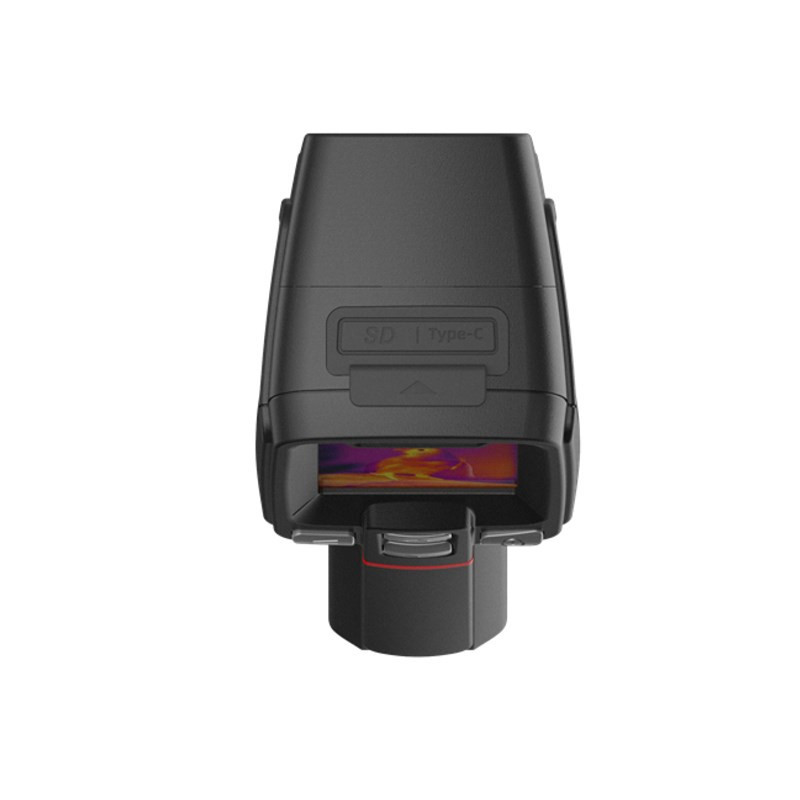

| USB connection type | USB Type-C |
| USB port | Yes |
Battery | |
| Battery life (max) | 8 hours |
Lens System | |
| Fixed focal length | 2.28 mm |
| Sensor resolution (thermal imaging module) | 120 x 90 pixels |
