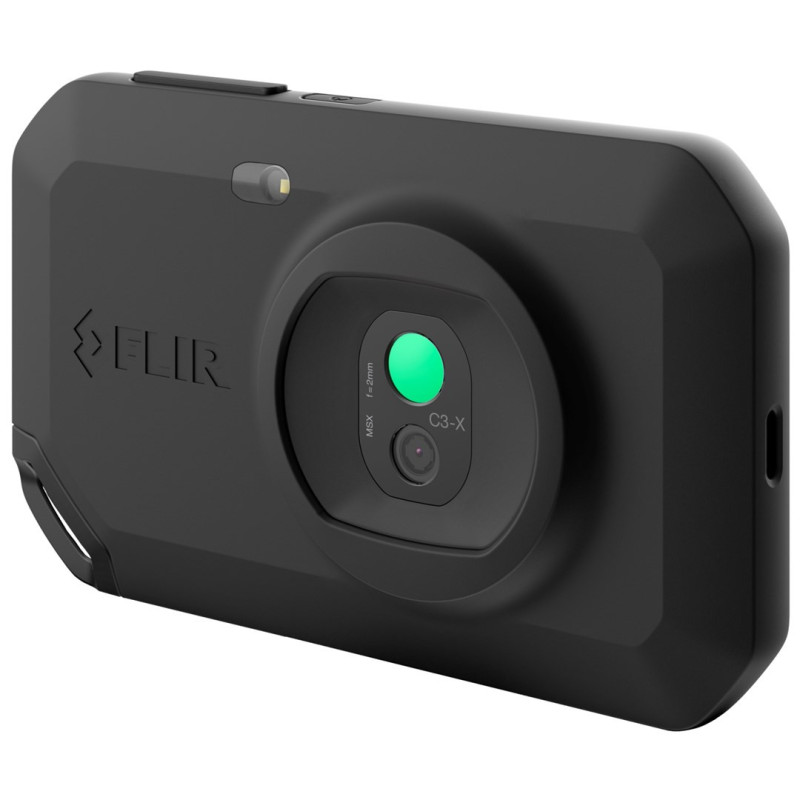

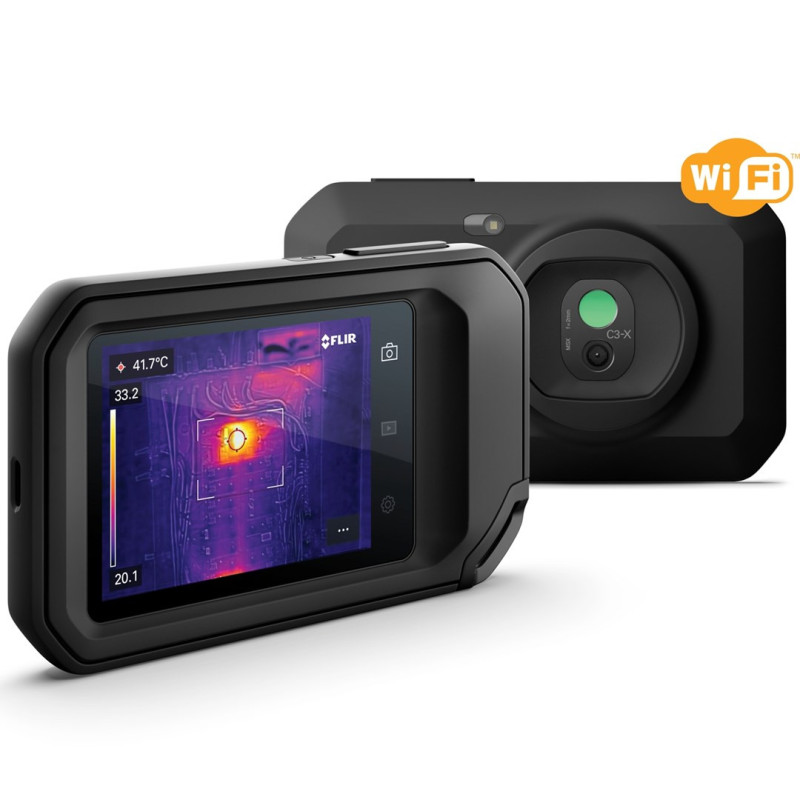

Thermal Imaging Camera - FLIR C3-X 128x96 Black
Product reference:
14-4743254004764
The FLIR C3-X thermal imaging camera has a 128 x 96 pixel thermal sensor and an integrated 3.5-inch LCD display with a resolution of 640 x 480 pixels. It operates in temperatures from -20 to 300 °C and has an operating time of up to 4 hours.
Thermal Imaging Camera - FLIR C3-X 128x96 Black
Product reference:
14-4743254004764
The FLIR C3-X thermal imaging camera has a 128 x 96 pixel thermal sensor and an integrated 3.5-inch LCD display with a resolution of 640 x 480 pixels. It operates in temperatures from -20 to 300 °C and has an operating time of up to 4 hours.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
FLIR C3-X thermal imaging camera 1800 mAh 128x96 LCD Black
The FLIR C3-X thermal imaging camera has a 128 x 96 pixel thermal sensor and an integrated 3.5' LCD display with a resolution of 640 x 480 pixels. It operates in temperatures from -20 to 300 °C and has an operating time of up to 4 hours.
- Thermal sensitivity 70 mK with a temperature measurement range from -20 to 300 °C.
- Equipped with a 3.5' LCD screen with a resolution of 640 x 480 pixels.
- Lightweight design - 190 g, dimensions 138 mm x 84 mm x 24 mm.
- Powered by a rechargeable 1800 mAh lithium-ion battery that provides up to 4 hours of use.
- IP54 class, dust and water resistant, making it suitable for various environments.
Technical data | |
|---|---|
| Sustainability certificates | RoHS |
Design | |
| Integrated display | Yes |
| Screen diagonal | 8.89 cm (3.5') |
| Operating temperature (OT) | -10 - 50 °C |
| International Protection (IP) Code | IP54 |
| Storage temperature (TT) | -40 - 70 °C |
| Housing material | Aluminum |
| Product color | Black |
| Screen resolution | 640 x 480 pixels |
| Screen type | LCD |
Weight and dimensions | |
| Weight | 190 g |
| Height | 24 mm |
| Depth | 84 mm |
| Width | 138 mm |
Operation | |
| Heat sensitivity (NETD) | 70 mK |
| Thermal frame rate | 8.7 Hz |
| Horizontal field of view | 53.6° |
| Temperature measurement range | -20 - 300 °C |
| Sensor type (thermal module) | Vanadium oxide uncooled focusing plates |
| Infrared spectral band | 8 - 14 µm |
| Standard pallets | Gray, High Contrast, Hot Metal, Iron Palette |

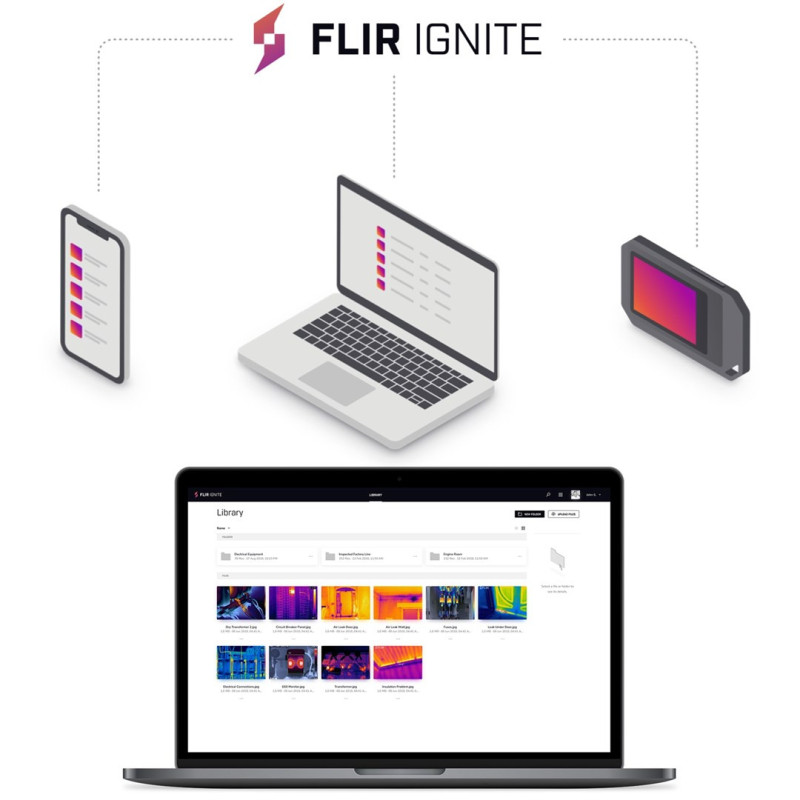

| Wi-Fi | Yes |
| Sensor resolution (thermal module) | 128 x 96 pixels |
| IFOV (spatial resolution) | 7.9 mRad |
Package contents | |
| Cables included | USB Type-C |
| Batteries included | Yes |
| Wrist strap included | Yes |
| Instructions for use | Yes |
Certificates | |
| WEEE compliance | Yes |
Ports and interfaces | |
| USB port | Yes |
Battery | |
| Battery technology | Lithium-ion (Li-Ion) |
| Battery capacity | 1800mAh |
| Battery life (max) | 4 hours |
| Rechargeable battery | Yes |
Lens system | |
| Fixed focus | Yes |
