Thermal imager - Seek Thermal CW-DBAX 200 x 150 Pixels
Product reference:
14-859356006750
200 x 150 pixel thermal imaging camera with a temperature measurement range of -20°C to 330°C and a thermal sensitivity (NETD) of 35 mK. The kit includes thermal imaging modes (Amber, Black Hot, Ironbow, White Hot), fixed focus and a 25 Hz image frequency.
Thermal imager - Seek Thermal CW-DBAX 200 x 150 Pixels
Product reference:
14-859356006750
200 x 150 pixel thermal imaging camera with a temperature measurement range of -20°C to 330°C and a thermal sensitivity (NETD) of 35 mK. The kit includes thermal imaging modes (Amber, Black Hot, Ironbow, White Hot), fixed focus and a 25 Hz image frequency.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

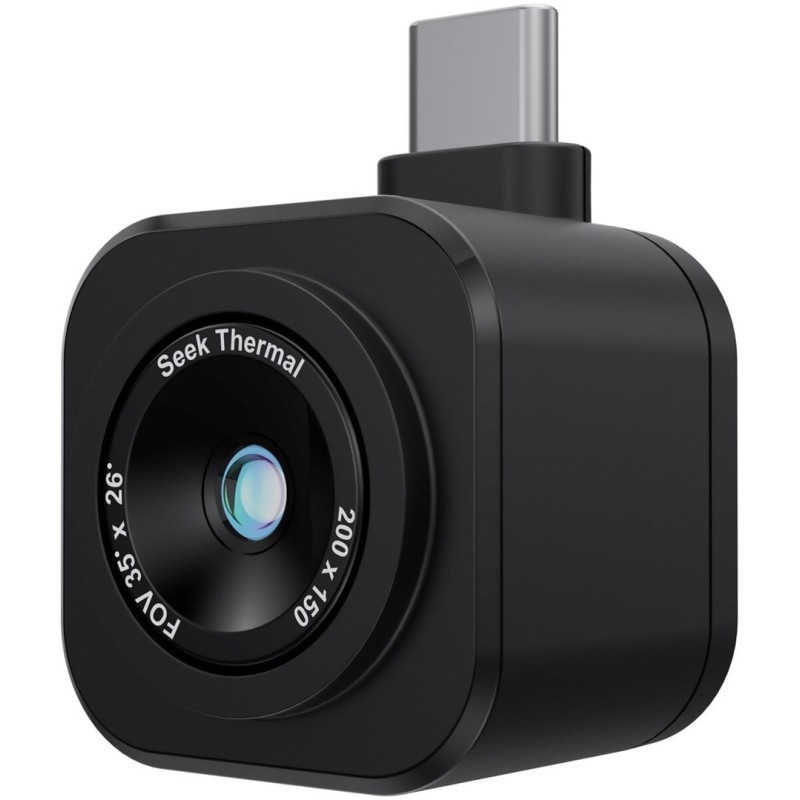

Seek Thermal CW-DBAX
Compact thermal imaging camera with 200 x 150 pixel resolution, ideal for detecting temperature differences.
Main features
- Thermal imaging modes: Amber, Black Heat, Iron, White Heat
- Temperature measurement range: -20°C to 330°C
- Image frequency: 25 Hz
- Thermal sensitivity (NETD): 35 mK
Design | |
|---|---|
| Integrated display | No |
| Product color | Black |
| Screen resolution | 200 x 150 pixels |
| Housing material | Plastic |
Weight and dimensions | |
| Depth | 25 mm |
| Height | 24 mm |
| Weight | 13 grams |
| Width | 25 mm |
Operation | |
| Video modes | Thermal imaging |
| Standard pallets | Amber, Black heat, Iron, White heat |
| Maximum resolution | 200 x 150 pixels |
| Image frequency | 25Hz |
| Temperature measurement range | -20 - 330 °C |
| Measurement modes | Central point |
| Integrated distance meter | No |
| Thermal sensitivity (NETD) | 35 mK |
| Integrated laser sight | No |
| Built-in flashlight | No |
Packaging details | |
| Packaging type | Box |

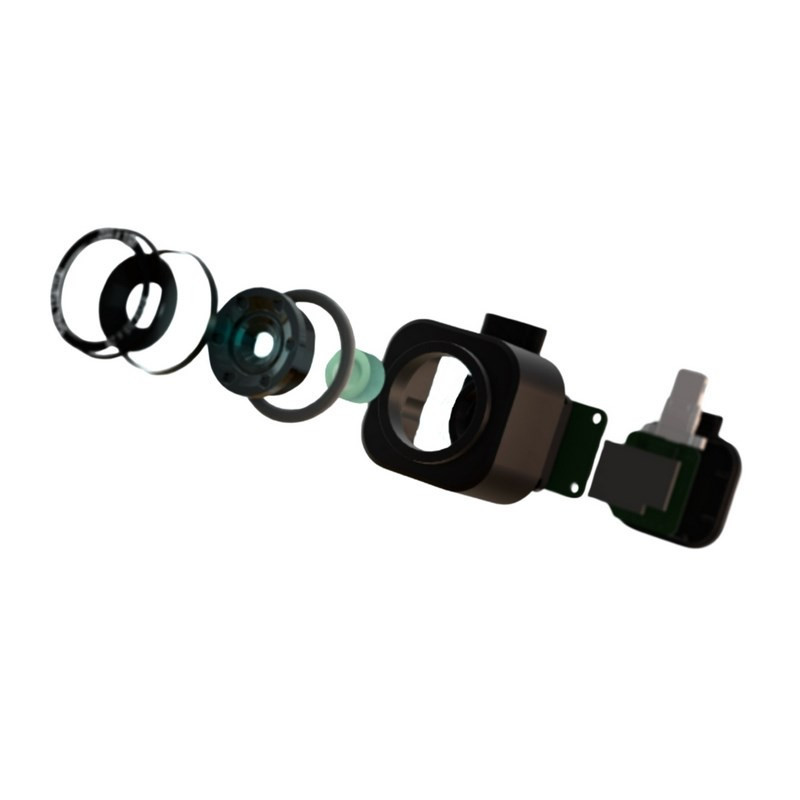

Optical module | |
| Fixed focus | Yes |
| Height | 55 mm |
| Length | 125mm |
| Weight | 60 g |
| Width | 60mm |
