Equip 351025 barcode reader

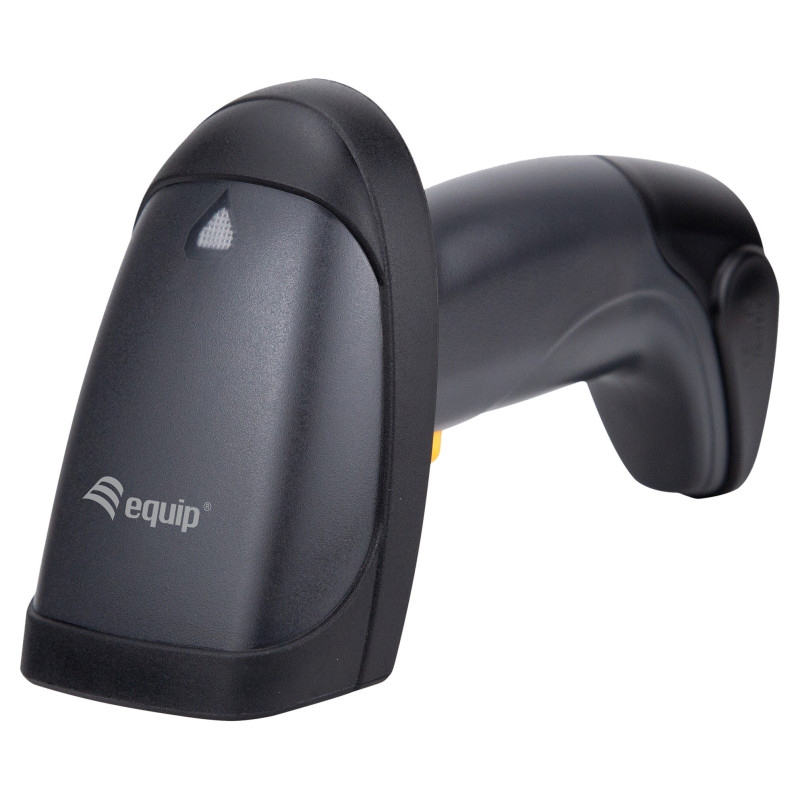

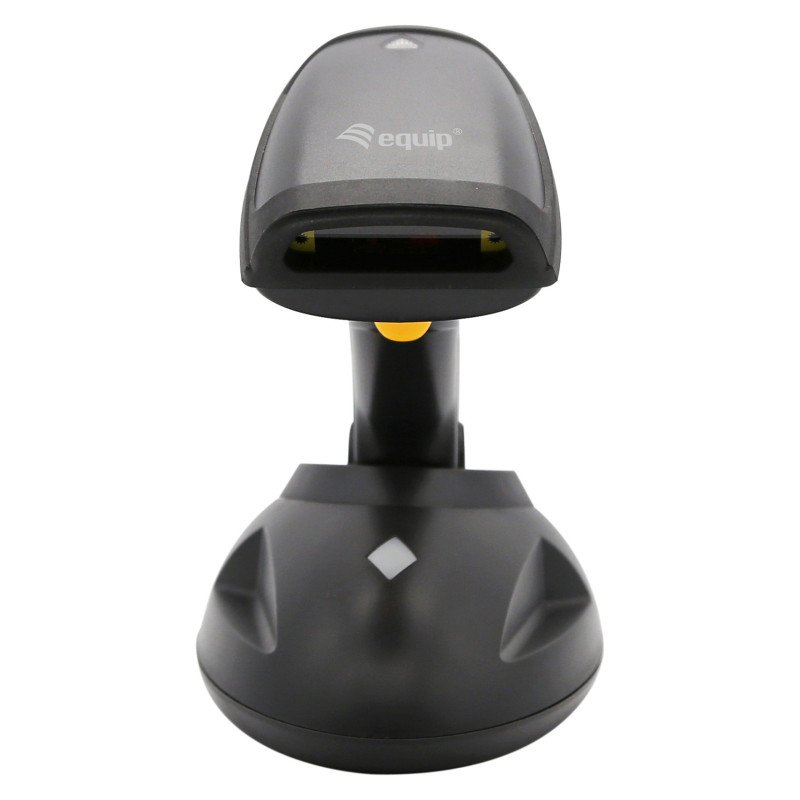

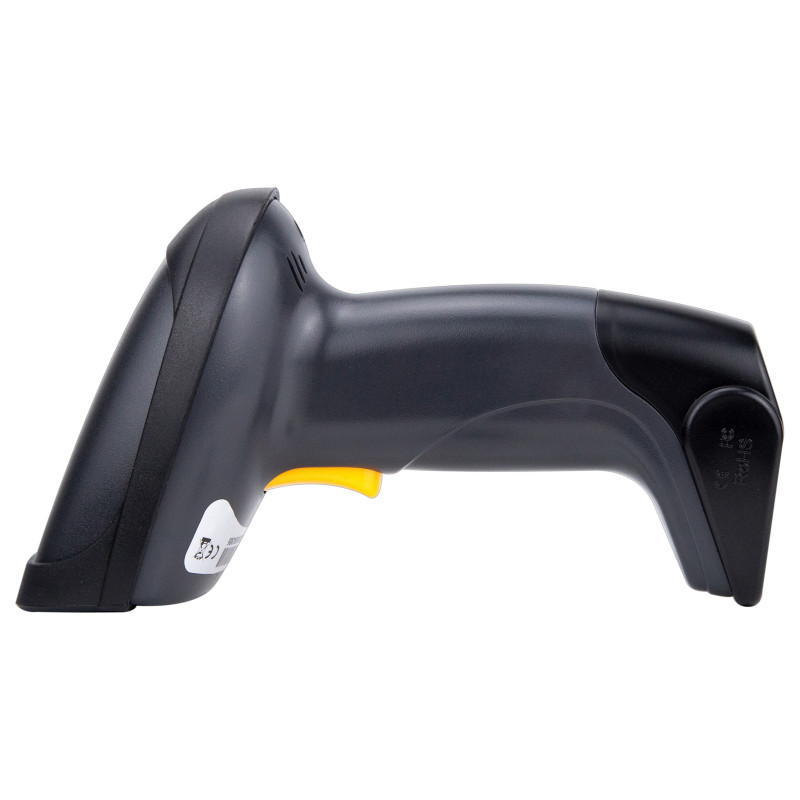

Equip Wireless 1D Laser Barcode Scanner, Long Distance, with Stand. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Wireless LAN, Wireless range: 200 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: Battery, Battery type: Built-in battery, Battery voltage: 3.7 V. Weight: 445 g, Width: 111 mm, Depth: 175 mm

The Equip Wireless 1D Laser Barcode Scanner with Long-Distance Capability and Stand is an advanced and versatile scanning solution suitable for a variety of industries. This device offers wireless freedom, making it ideal for applications in retail, warehousing, and inventory management. With the included stand, it allows for hands-free operation, enhancing efficiency and reducing user fatigue.

The scanner is designed for long-distance scanning, ensuring reliable data capture even from a distance. Its 1D laser scanning technology quickly and accurately reads traditional barcodes, simplifying data capture and reducing errors. The wireless connectivity provides flexibility and seamless integration into your existing systems.

Whether scanning barcodes on products, shelves, or packages, this scanner streamlines operations and improves accuracy. It's a cost-effective solution for businesses looking to optimize their operations and enhance inventory accuracy while providing exceptional customer service. This scanner is a dependable tool for organizations seeking an efficient way to manage 1D barcoded information with the added benefit of long-distance scanning capability.

Scanning

Type: Handheld bar code reader
Scanner type: 1D
Sensor type: LED
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: Not supported
Trigger mode: Auto-induction, Continuous, Manual
Scanner resolution: 4 mm
Working distance: 70 cm
Read rate (max): 200 reads/s
Wavelength: 650 nm
Maximum scan width: 30 cm
Depth of field range: 7.5 cm

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Wireless LAN
Wireless range: 200 m
Operating frequency: 433 MHz
Cable length: 1.8 m

Performance

Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Protection features: Drop proof, Water resistant
Product colour: Black
Country of origin: China

Power

Power source type: Battery
Battery type: Built-in battery
Number of batteries supported: 1
Battery voltage: 3.7 V
Battery life: 20 h

Weight & dimensions

Width: 111 mm
Depth: 175 mm
Height: 180 mm
Weight: 445 g

Packaging data

Feature: Charging base
Package width: 231 mm
Package depth: 262 mm
Package height: 80 mm
Package weight: 685 g

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 1500 mAh
Battery capacity: 5.55 Wh
Standby time: 3 month(s)

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 20 pc(s)
Master (outer) case gross weight: 15 kg
Master (outer) case length: 550 mm
Master (outer) case width: 485 mm
Master (outer) case height: 420 mm
Harmonized System (HS) code: 8471900090

Other features

Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Feature: Quick start guide
