Odłącznik wyłącznik prądu masy akumulatora hebel AMIO-03025

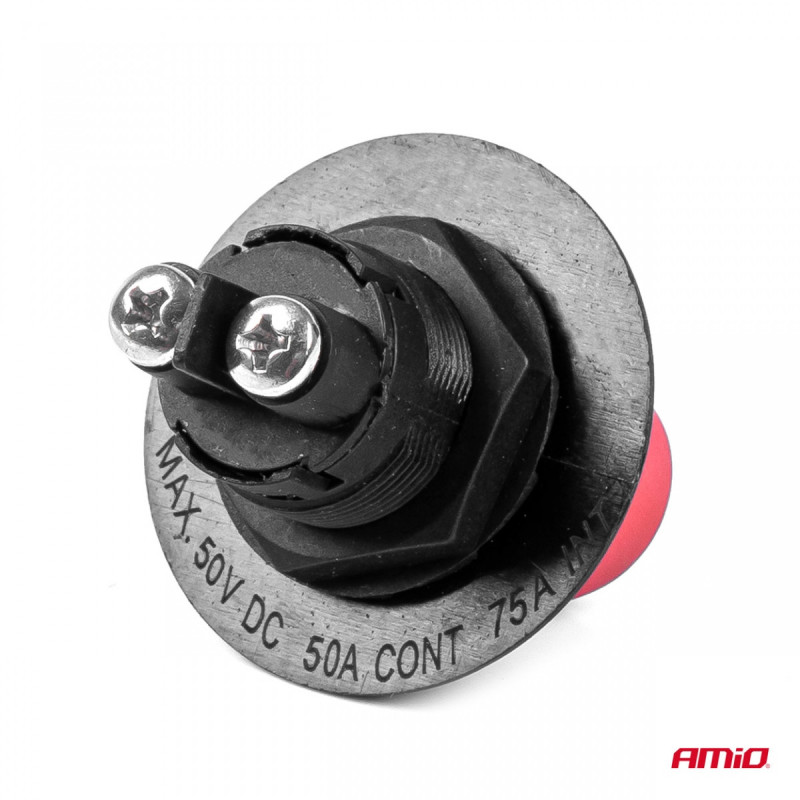

HEBEL BATTERY CIRCUIT BREAKER

• OPERATING CURRENT 50A
• INSTANTANEOUS CURRENT 75A
• PEAK CURRENT 300A

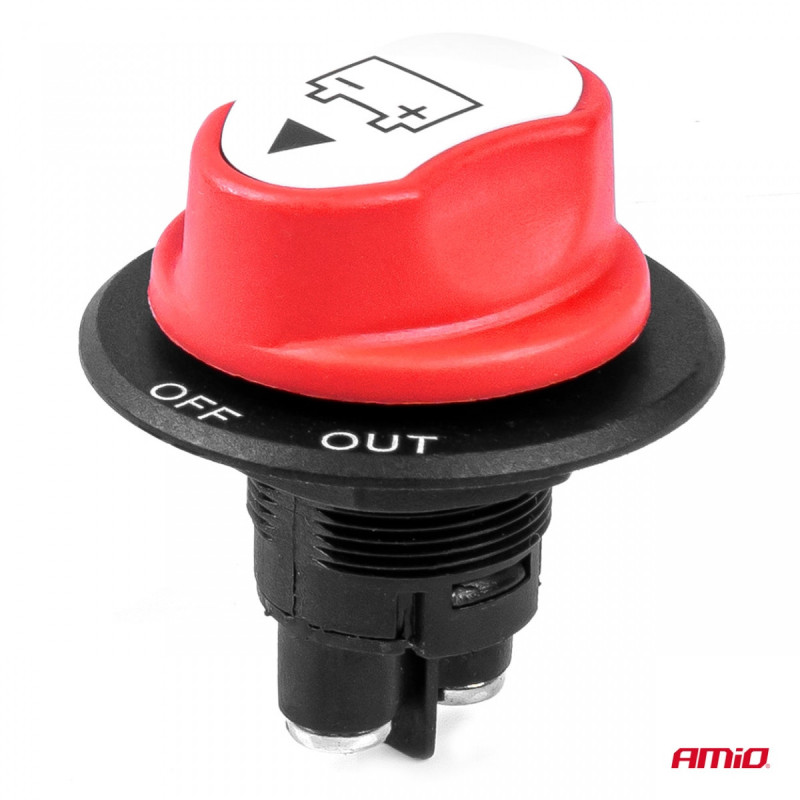

3-position universal built-in bolt ON-OFF-OUT

• Mounting diameter: 22mm
• Outer diameter: 45mm
• Total height: 51mm
• Height after installation: 20mm
• Electrical connections: M4

Voltage: max 50V

Applications in the electrical systems of passenger cars, trucks, agricultural and construction machinery, caravans, motor boats, etc., where the ability to cut off the power supply is required.

Disconnection - One simple movement of the hand and the ground circuit is interrupted, e.g.:

• before starting any type of repairs,
• when these vehicles are parked for a longer period of time,
• when charging the battery with a charger without removing it from the car.

Application:

• The switch is used to quickly disconnect power in vehicles.
• It can function as anti-theft protection or a quick emergency power disconnection.
• The product is also useful in various types of car rallies.
