Ochrona akumulatora przed rozładowaniem

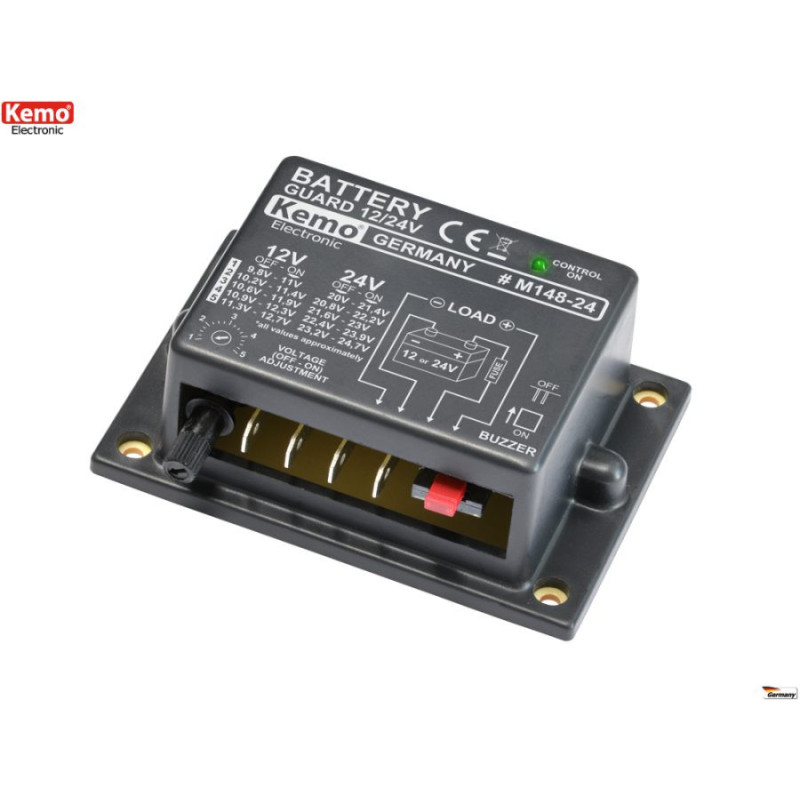

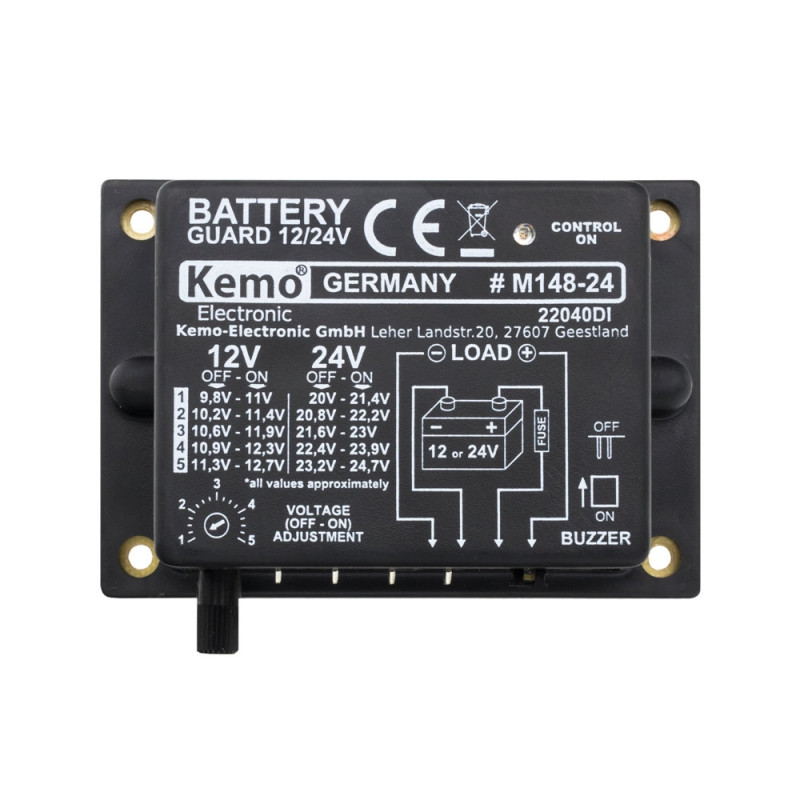

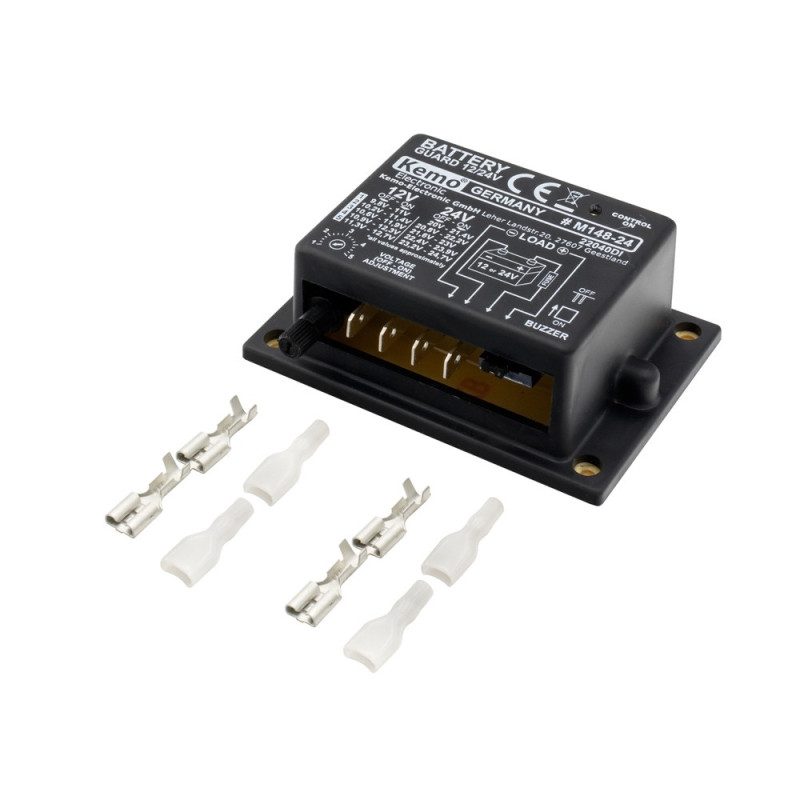

Battery discharge protection

Protecting the battery against deep discharge by switching off receivers such as refrigerators, heaters, etc. The device automatically switches on the receivers when normal operation resumes. voltage. The device automatically recognizes the battery voltage (12 or 24V).

Technical data

• Operating voltage:12 V or 24 V battery (module switches automatically)
• Maximum switching current:40 A for up to 10 seconds or 20 A continuous operation, with good ventilation!
• Cut-off voltage:adjustable approx. 9.8 to 11.3 V for 12 V batteries / approx. 20 to 23.2 V for 24 V batteries (acoustic signal before switching off can be deactivated)
• Reconnect voltage:approximately 1.2 to 1.6 V higher than the set shutdown voltage
• Switching element:Positive line MOS power transistor
• Power consumption: approx.<1.2 mA in off state, approximately <2.4 mA in on state (LED flashing)
• dimensions:approx. 87 x 60 x 33 mm

Battery protection against discharge - deep discharge will no longer be a problem!

Deep battery discharge is a very serious problem. This situation can sometimes lead to complete failure, requiring equipment replacement. However, there are ways to prevent such problems. Battery Discharge Protection may be a good solution. This incredibly easy-to-install device easily protects your power source from complete loss of energy. It's definitely worth considering this type of device if you want to maximize the lifespan of your car's battery.
