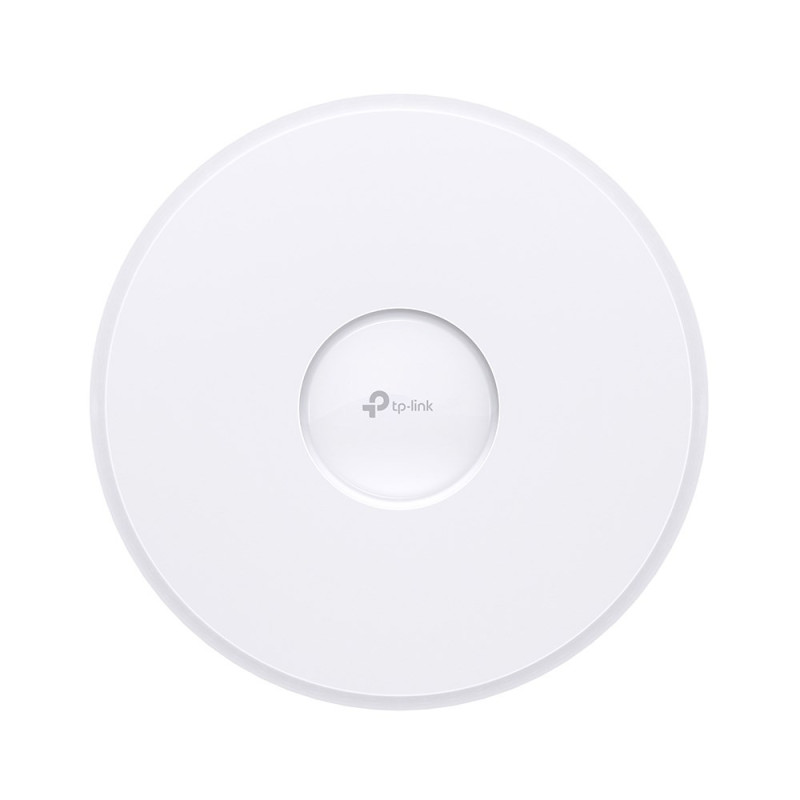

TP-Link Omada AX5400 Multi-Gigabit Ceiling Mount WiFi 6 Access Point
Product reference:
6-EAP770
TP-Link Omada AX5400 Multi-Gigabit Ceiling Mount WiFi 6 Access Point
TP-Link Omada AX5400 Multi-Gigabit Ceiling Mount WiFi 6 Access Point
Product reference:
6-EAP770
TP-Link Omada AX5400 Multi-Gigabit Ceiling Mount WiFi 6 Access Point
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
4 - 8
business days
| Cabling technology | 10/100/1000/2500Base-T |
| VLAN support | Yes |
| Automatic channel scanning | Yes |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Automatic channel selection | Yes |
| Flow control support | Yes |
| MIMO type | Multi User MIMO |
| Airtime Fairness (ATF) | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| 6 GHz | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP) |
| Fit AP mode features | Mesh networking |
| Transmitting power (FCC) | < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 23 dBm (6 GHz |
| Maximum data transfer rate (6 GHz) | 5765 Mbit/s |
| 2.4 GHz | Yes |
| Networking standards | IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11a, IEEE 802.11b, IEEE 802.11ac |
| 5 GHz | Yes |
| Ethernet LAN data rates | 2500 Mbit/s, 1000 Mbit/s, 100, 10 |
| Spread spectrum method | OFDMA |
| MIMO | Yes |
| Quality of Service (QoS) support | Yes |
| LED indicators | Yes |
| Reset button | Yes |
| Placement | Ceiling, Wall |
| Product colour | White |
| DC voltage range | 12 V |
| Power over Ethernet (PoE) | Yes |
| Input current | 2.5 A |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | WPA-Personal, WPA3-Enterprise, SNMP, WPA2-Enterprise, SNMPv2, WPA-Enterprise, WPA2-Personal, SNMPv3 |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Syslog | Yes |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Depth | 220 mm |
| Width | 220 mm |
| Height | 32.5 mm |
| Weight | 730 g |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Antenna type | Internal |
