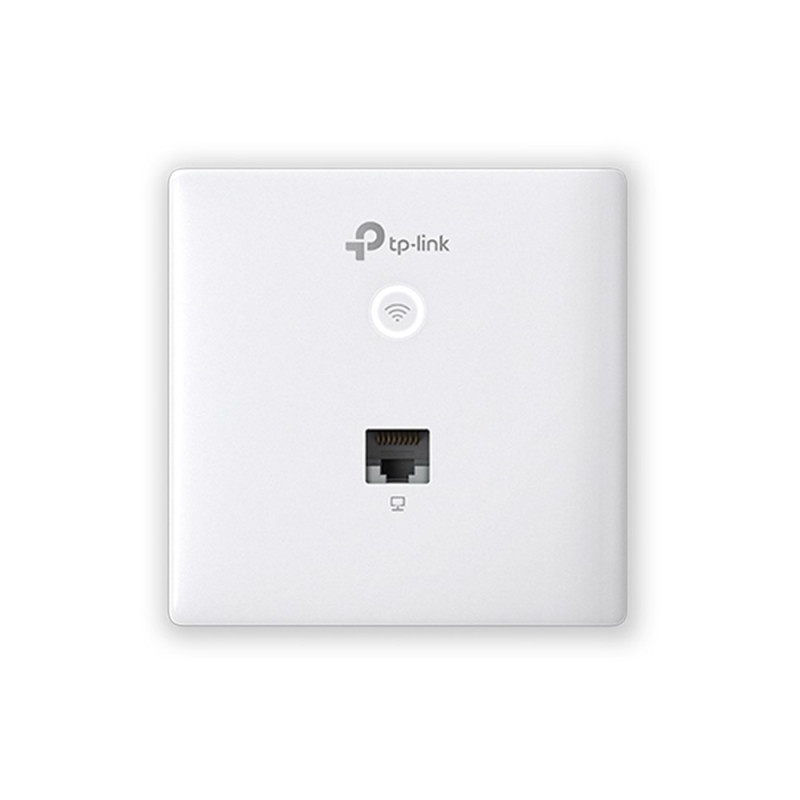

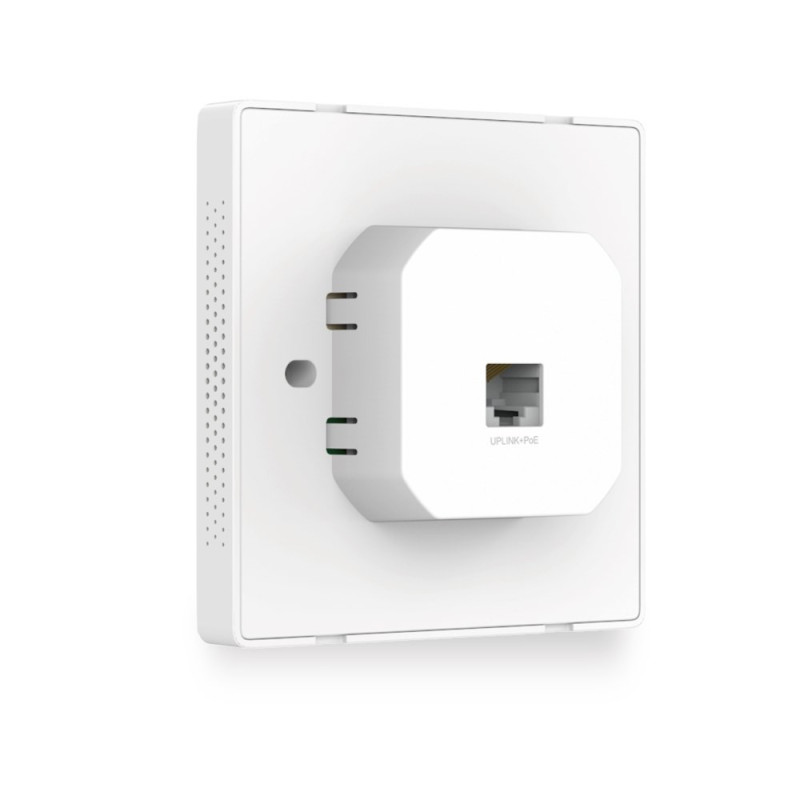

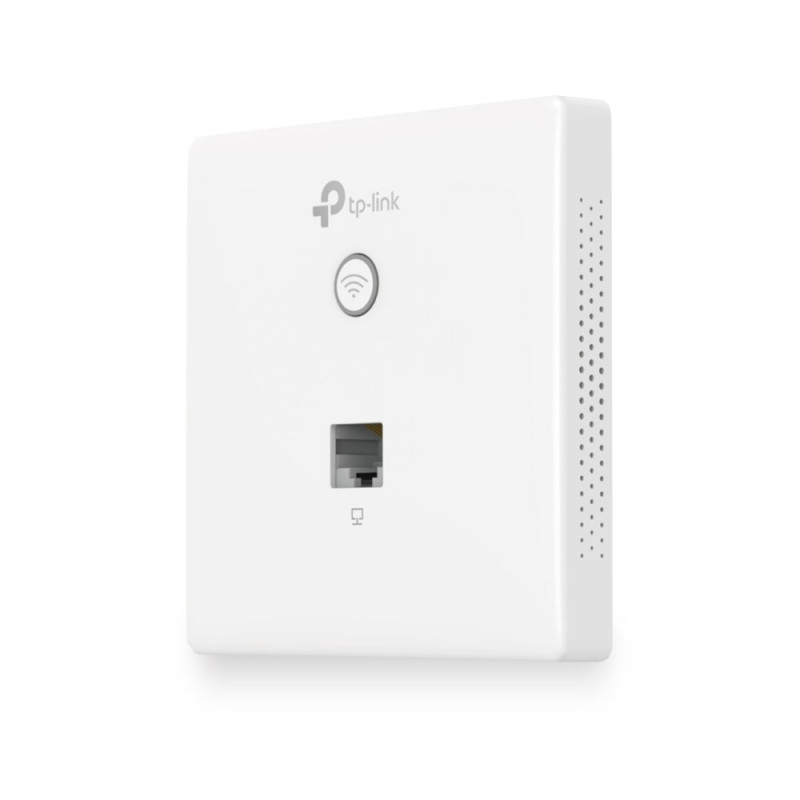

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Product reference:
6-EAP230-Wall
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Product reference:
6-EAP230-Wall
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
6 - 11
business days
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| MIMO | Yes |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 1000 Mbit/s, 10, 100 |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| Band steering | Yes |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| 2.4 GHz | Yes |
| Automatic channel selection | Yes |
| Networking standards | IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.11ac, IEEE 802.3at, IEEE 802.11b |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1167 Mbit/s |
| VLAN support | Yes |
| 6 GHz | No |
| Transmitting power (CE) | 20 - 23 dBm |
| BeamForming | Yes |
| Reset button | Yes |
| Product colour | White |
| LED indicators | Operation |
| Placement | Wall |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 9 W |
| Power over Ethernet (PoE) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Access Control List (ACL) | Yes |
| Number of SSID supported | 16 |
| Security algorithms | 128-bit WEP, SNMP, WPA-PSK, WPA, 152-bit WEP, 64-bit WEP, WPA2-Enterprise, SNMPv2, WPA2-PSK |
| MAC address filtering | Yes |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Syslog | Yes |
| Web-based management | Yes |
| Height | 30.2 mm |
| Depth | 86.8 mm |
| Width | 86.8 mm |
| Quick start guide | Yes |
| Quantity per pack | 2 pc(s) |
| Mounting kit | Yes |
| Compliance certificates | RoHS, CE |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Antennas quantity | 2 |
| Antenna type | Internal |
| Antenna gain level (max) | 3.6 dBi |
| Antenna features | Integrated antenna |
| Harmonized System (HS) code | 85176990 |
| Sustainability compliance | Yes |
