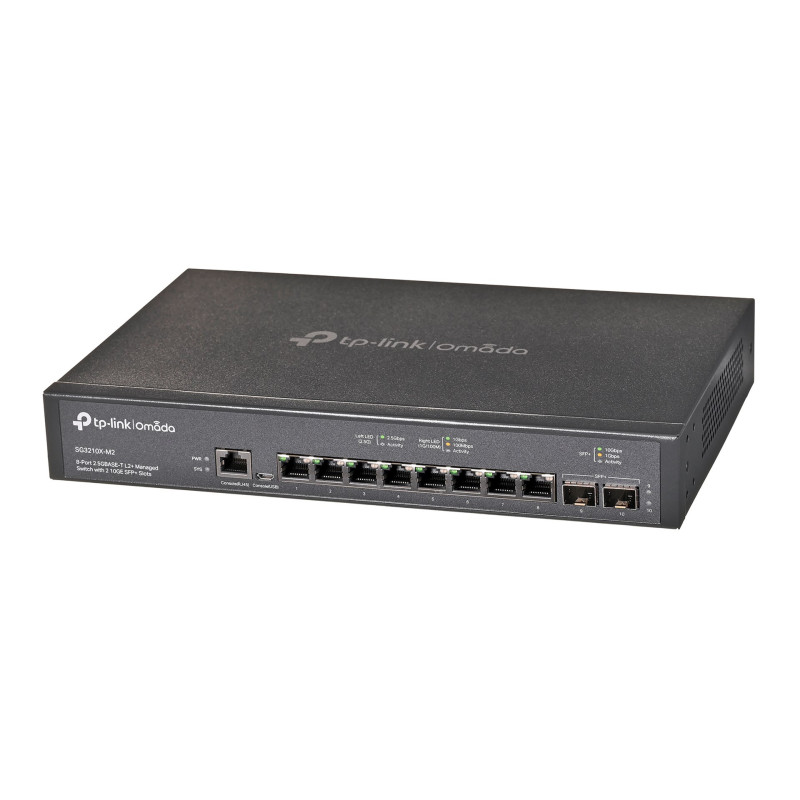

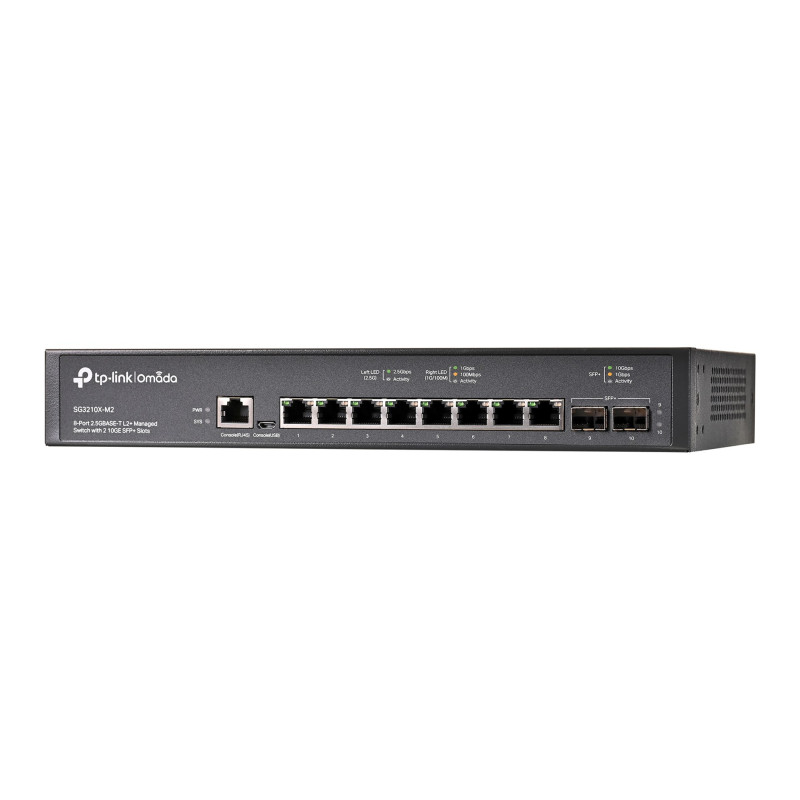

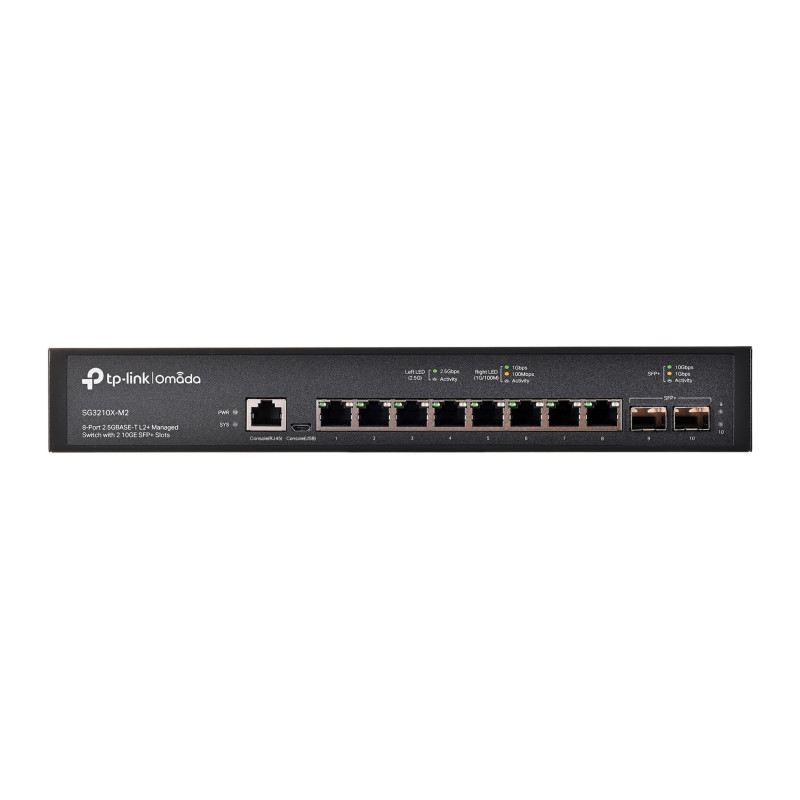

TP-LINK Omada 8-Port 2.5G L2+ Managed Switch
Product reference:
6-SG3210X-M2
TP-LINK Omada 8-Port 2.5G L2+ Managed Switch
TP-LINK Omada 8-Port 2.5G L2+ Managed Switch
Product reference:
6-SG3210X-M2
TP-LINK Omada 8-Port 2.5G L2+ Managed Switch
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
4 - 8
business days
| 10G support | Yes |
| 2.5G Ethernet (copper) ports quantity | 8 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | AAA, TACACS+ |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| BPDU filtering/protection | Yes |
| Broadcast storm control | Yes |
| Cables included | AC |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |

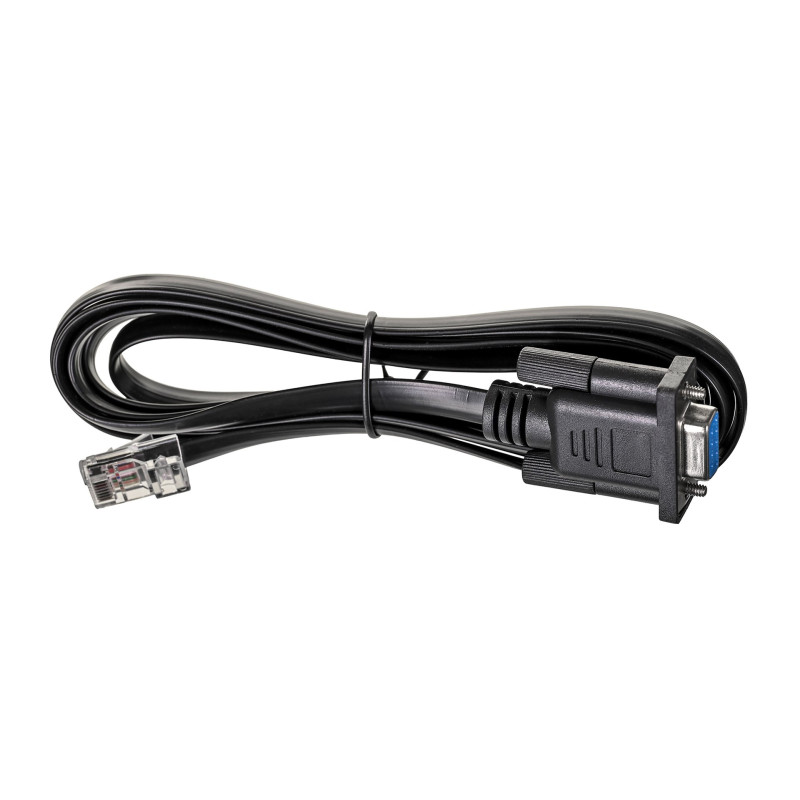

| Console port | RJ-45/micro-USB |
| Depth | 180 mm |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Fanless | Yes |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 59.52 Mpps |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Harmonized System (HS) code | 85176990 |
| Head-of-line (HOL) blocking | Yes |
| Heat dissipation | 51.18 BTU/h |
| Height | 44 mm |
| IGMP snooping | Yes |
| IP routing | Yes |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Number of fans | 2 fan(s) |
| Number of IP interfaces | 16 |
| Number of static routes | 48 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 12 MB |
| Password protection | Yes |
| Port mirroring | Yes |

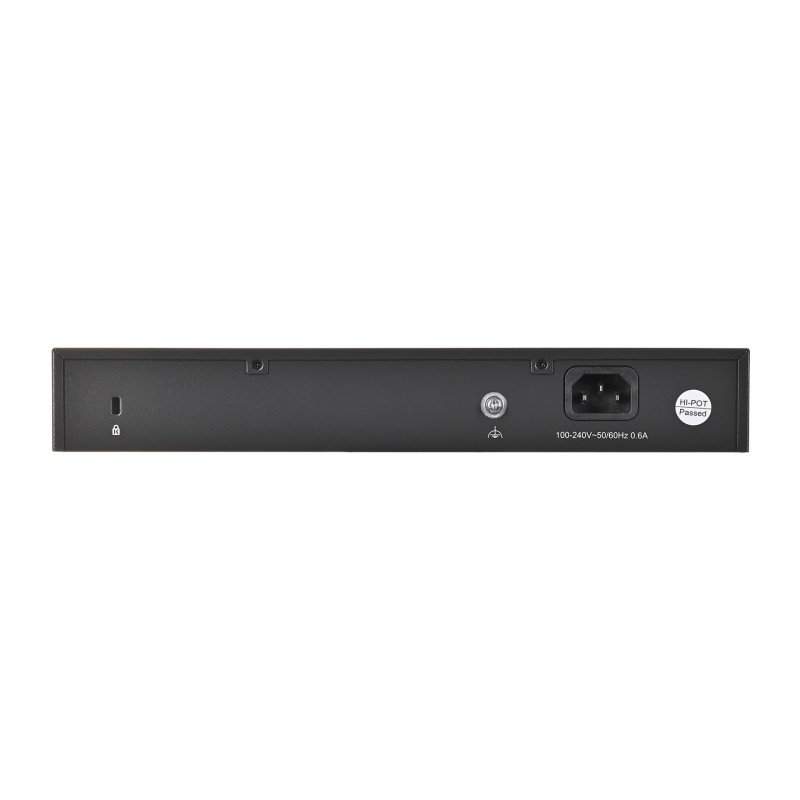

| Power connector | AC-in jack |
| Power consumption (typical) | 15 W |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR), WRR+SP |
| Quick start guide | Yes |

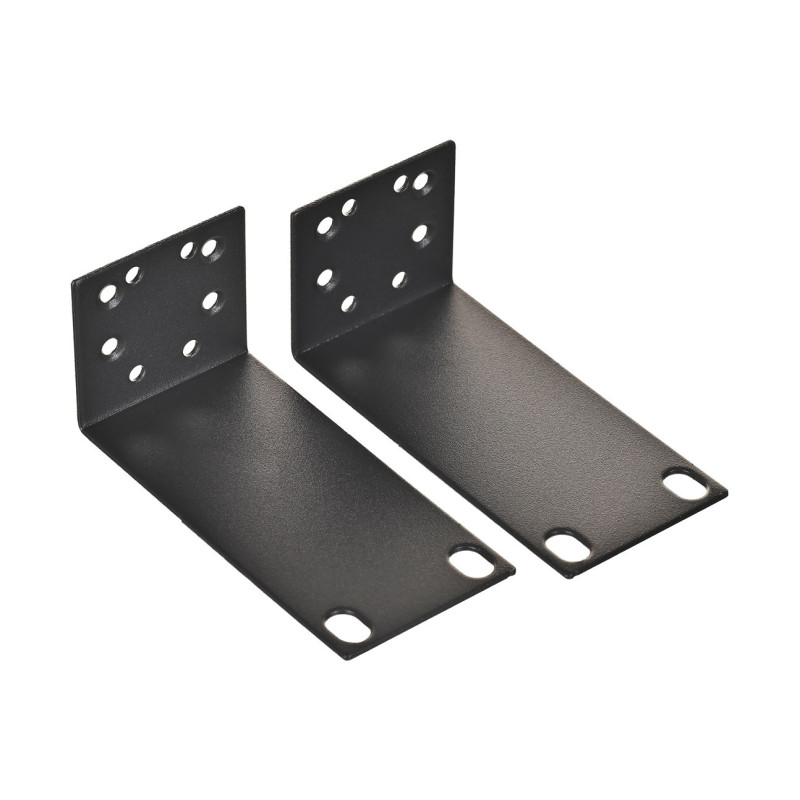

| Rack mounting | Yes |
| Rate limiting | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| SFP+ module slots quantity | 2 |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Static route | Yes |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 80 Gbit/s |
| System event log | Yes |
| Traffic classification | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 294 mm |
