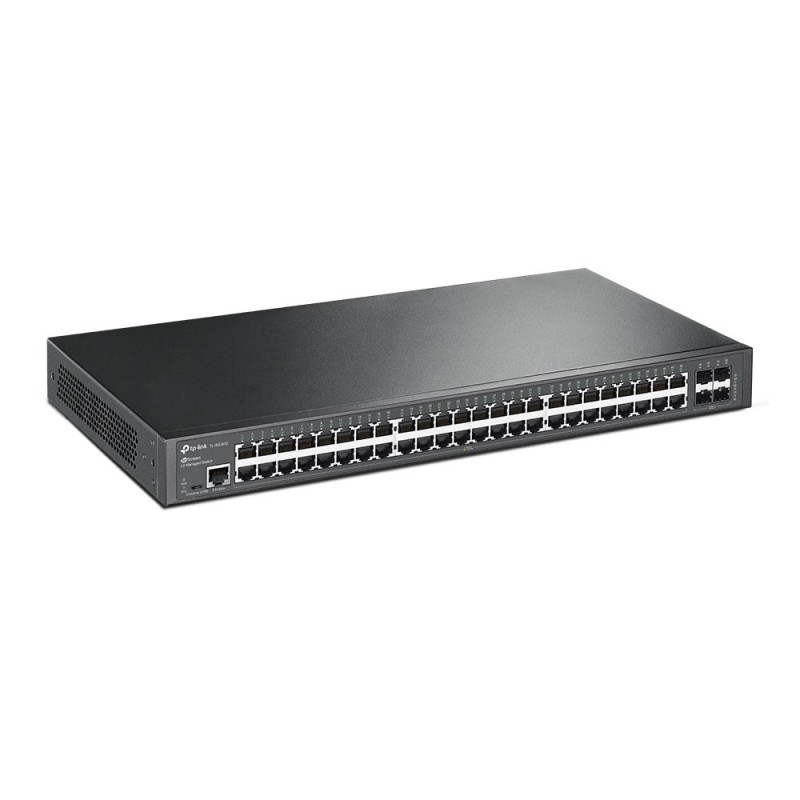

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
Product reference:
6-TL-SG3452
TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
Product reference:
6-TL-SG3452
TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
4 - 8
business days
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 34.86 W |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| MAC address filtering | Yes |
| DHCP features | DHCP snooping, DHCPv6 snooping, DHCP server, DHCP client, DHCP relay |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Loop protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| IP-MAC-Port binding | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| BPDU filtering/protection | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 118.94 BTU/h |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| System event log | Yes |
| MIB support | Yes |
| Switch type | Managed |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Width | 440 mm |
| Height | 44 mm |
| Depth | 220 mm |
| Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i, IEEE 802.1D, IEEE 802.3z, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| 10G support | No |
| Flow control support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Virtual LAN features | Protocol-based VLAN, Private VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Head-of-line (HOL) blocking | Yes |
| Policy-based routing | Yes |
| IP routing | Yes |
| IPv6 routes | 48 |
| IPv4 routes | 48 |
| Flash memory | 32 MB |
| Internal memory | 256 MB |
| Fanless | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Rack mount kit | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 features | IPv6 tracert, IPv6 ping, IPv6 Telnet, IPv4/IPv6 access-control list (ACL) |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Harmonized System (HS) code | 85176990 |
| Switching capacity | 104 Gbit/s |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Forwarding rate | 77.4 Mpps |
| Jumbo frames | 9000 |
| Static route | Yes |
| Power over Ethernet (PoE) | No |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
